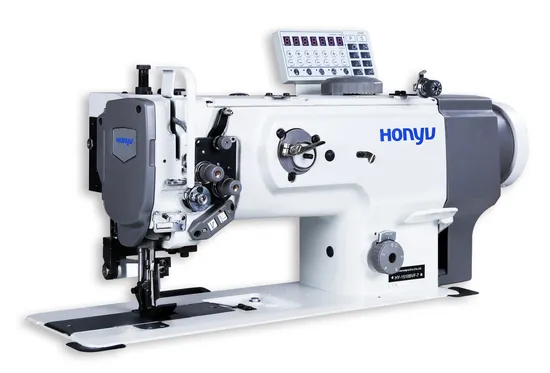

HY-1510B-7 Direct drive single needle auto trimming compound feed industrial sewing machine

Product Description

WALKING FOOT LEATHER SEWING MACHINE, HEAVY DUTY SEWING MACHINE FOR SOFA
HY-1510B-7 Direct drive, single needle, auto trimming compound feed sewing machine

Model No.	HY-1510B-7
Feeding system	Alternating presser foot, feed dog and needle feeding
Max sewing speed	2500 s.p.m
Shuttle diameter	Ф28mm
Applied needle	DP×17 #18-#23
Thread size	Maximum thread 9 strands nylon
Max stitch length	9mm
Max alternating presser foot	6.5mm
Max presser foot lifting height	16mm
Auto trimming	√
Auto back tacking	√
Presser foot lifting height by air	√
Auto oil system	√
DL function	√
Operation space	255×103mm

Product Description:
1. Internal direct drive servo motor and pneumatic controller components, more stable Independent electric control box.
2. Standard DL function, effectively reduce over bone dense needle, broken thread, broken skin problem.
3. It can adjust the alternating amount of presser foot by manual through the knob.
4. Stable functions of auto trimming, auto back tacking, pneumatic presser foot lifting, auto oil supply, up and down needle positioning, integrated LED light which make the normal sewing more comfortable and high efficiency.
Typical Field of Application:
Routine sewing of sofas and other kinds of soft furniture products.
Product Advantages:
1. Direct drive motor and pneumatic controller component:
Internal 850W direct drive servo motor and pneumatic controller components are easy to install and maintain, continue strong penetrability as always.
2. DL Function:
(1) Transform the maximum presser foot alternation 6.5mm by one-click.
(2) When the sewing reaches the position between up and down step, pressing the DL switch can transform instantaneously maximum internal and external presser foot alternating amount.
(3) Optional function of transforming alternating amount of presser foot instantaneously by knee controller(DL).
3. Pneumatic presser foot lifting:The lifting height of the presser foot can be up to 16mm, which is convenient and quick to place the sewing material.
4. Integrated LED Light: Integrated LED light can provide optimal lighting for the whole sewing area.
5. Handle Adjusting Alternating Amount Of Presser Foot:
The height of the presser foot alternating amount can be adjusted from 1mm to 6.5mm by rotating the dial.
