US$2,000.00-3,500.00
|
1 Piece
(MOQ)
|
Basic Info.
Controlling Mode
Artificial
Number of Shaft
Swivel Head and Worktable
Automatic Grade
Automatic
Certification
GS, CE, RoHS, ISO 9001
Name
Vertical Round Column Automatic Drilling Machine
Table Set up Area
500X420mm
Table Swivel Range
+-45 Degree
Spindle Nose to Table
630mm
Spindle Nose to Foot
1185mm
Transport Package
Plyw/Case
Specification
960x580x2080mm
Production Capacity
300 Sets / Month
Product Description

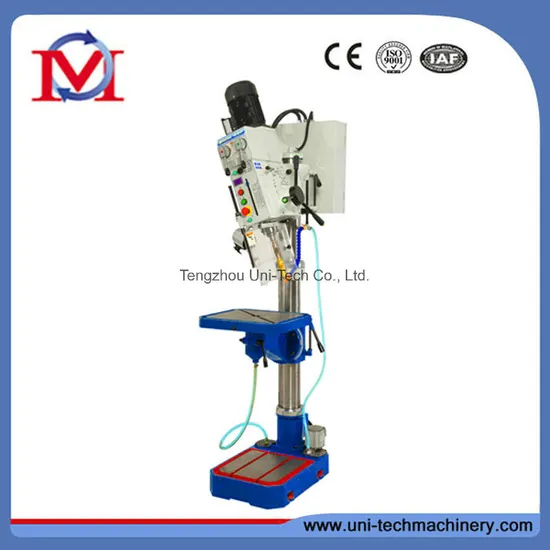

Vertical round column automatic feed gear drilling machine (VD5032NA)
1.Specification:
Item | VD5032NA |
Drilling capacity | 32mm |
Tapping capacity, steel | M22 |
Table set up area | 500x420mm |
Table stroke | 415mm |
Quill stroke | 160mm |
Table swivel range (max.) | ± 45° |
Spindle nose-to-table distance (max.) | 630mm |
Spindle nose-to-foot distance | 1185mm |
Throat | 320mm |
Column diameter | 120mm |
Head swivel range | ± 45° |
Headstock | |
Spindle mount | MT4 |
Spindle speed | 125-3030rpm 12 steps |
Feed | |
Quill feeds | 0.1,0.2,0.3 3 steps |
Measures and weights | |
Overall dimensions (length x width x height) | 835x550x1960mm |
Packing size | 960x580x2080mm |
Weight | N,.W./G.W.: 500/555kg |
2.Main features:
1)380V/50HZ/3PH is available
2)All main parts are made with quality cast iron
3)Gear shift
4)Superior quality of gears with hardened and lapped gears of surface
5)Importable electrical components with CE, CSA and UL standard
6)With electromagnetism clutch transmission feed
7)Head swivel ±45°, and table swivel ±45°.
3.Standard accessoires :
Shaft sleeve for taper shank tool
Wedge for taper shank tool
Key type drill chuck
Double open end spanner
Connecting bar for drill chuck
Coolant pump
Machine stand base
4.Packing size: 960x580x2080mm N.W./G.W.: 500/555 kgs
5.Warranty time: 12 months
6.Detailed pictures:
Welcome to contact us to get more details.
