Basic Info.
Model NO.
TZ530/730/745/750/760
Certification
ISO 9001:2000, ISO 9001:2008, CE
Suitable for
Carbon Steel
Power Type
Electric Power
Voltage
380V/415V/440V/Customized
Transport Package
Plywood
Specification
Size: 360*150*210cm Weight: 2000kg
Production Capacity
200/Month
Packaging & Delivery
Package Size
360.00cm * 110.00cm * 210.00cm
Package Gross Weight
1800.000kg
Product Description

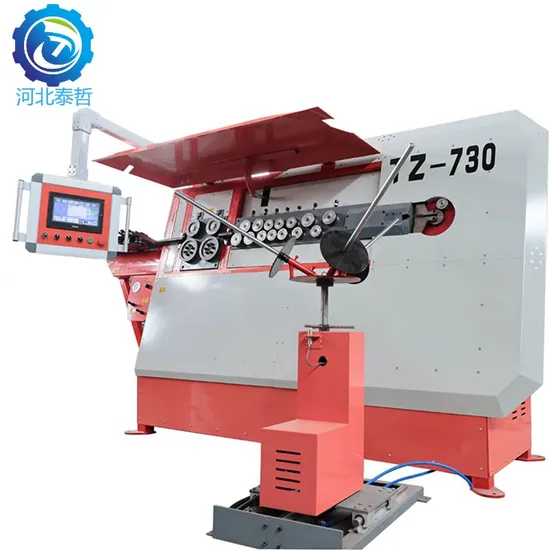

Product Description The bending machine consists of two sets of straightening wheels, combined with four traction wheels, driven by a servo motor to ensure the best accuracy of the straightening of the steel bar.
Bending and shearing mechanism: driven by servo motor, the bending arm can rotate and expand at high speed, high speed to complete the shearing action, to ensure the accuracy of steel bending.
Control system: PLC control text screen display Angle arbitrary switch rebar size 0 error. It can process cold and hot rolled high strength bar. Straightening, sizing, bending, cutting a molding. It bends 180° in both directions.
Can design up to 60 corners of the 2D stirrup and contour shapes of any shape, can store thousands of different product shapes,and a storage graphics library for mass production of multiple varieties.
Can continuously produce products of any shape without adjustment.
Functional features of CNC steel hoop bending machine
1. The hoop bending machine production equipment also has a straightening function, and one machine can be used for multiple purposes.
2. The hoop bending machine adopts intelligent control and can process various large, square, diamond-shaped sizes, polygons, etc.
3. The hoop bending machine can process cold-rolled and hot-rolled high-strength steel wire rods from raw materials to stirrup wire rod forming products.
4. The steel hoop bending machine has high production efficiency and is equivalent to 10 to 15 labors.
5. The hoop bending machine is highly practical and requires only one person to operate, saving a lot of labor.
6. The steel hoop bending machine saves raw materials and continuously produces almost no waste loss during work.
7. The hoop bending machine occupies a small area, saves the straightening work area and cutting work area, and can be used in narrow working areas.
8. The steel hoop bending machine has low maintenance costs and low energy consumption.
Model | TZ-760 |
Single line processing capability | 4-16mm |
Dual line processing capability | 5-10mm |
bending angle | ±180° |
maximum towing speed | 75m/min |
maximum bending speed | 1000°/sec |
Wire feed servo motor | 20KW |
Bending servo motor | 20KW |
Cut off the motor | 7.5KW |
air compressor | 4KW |
Length accuracy | ±1mm |
Angle accuracy | ±1° |
Processing number | ≤2 |
equipment power | 33.5KW |
Host packaging size | 370*150*220cm |
gross weight | 2000kg |
Optional | Unloading rack, stirrup takeover, plate reinforcement rack |
FAQ 1.Q:How long of the delivery time?
A:5 days for our own design.(motor:380v 50hz 3phases);10 days for cusmoized model.
2.Q:How can we use the machine?
A:we will send the english user manual and video with the machine, if not enough, we can teach you online.
3. Q: How does your factory do regarding quality control?
A: We test our machine before shipping. Our factory has gained ISO9001:2008 authentication.
4.Q: How long is the warranty?
A: one year warranty and after sales service for whole life
5.Q: how to pay for the product?
A: 100% irrevocable L/C at sight;T/T 100% in advane or T/T 40% in advane and the rest 60% before shipment ,Western union is available.
6.Q:Can you make the english language or other language of the CNC control system for the customers?
A:Yes. Of course. We can make different language for the cnc control. Just tell us which language you need.
7.Q:How to consult the quotation of the stirrup bender?
A:pls tell me:what's the diameter of the round bar?what's the diameter of the rebar bar?any special need to the shape?
>>
