Basic Info.
Servo Motor & Drive
Panasonic
Material Fixation Method
Vacuum Adsorption
Transmission Interface
USB /Inernet Port
Transport Package
Film Packaging+Wooden Case
Production Capacity
500 Sets/Years
Product Description
Product Description
Detailed Photos

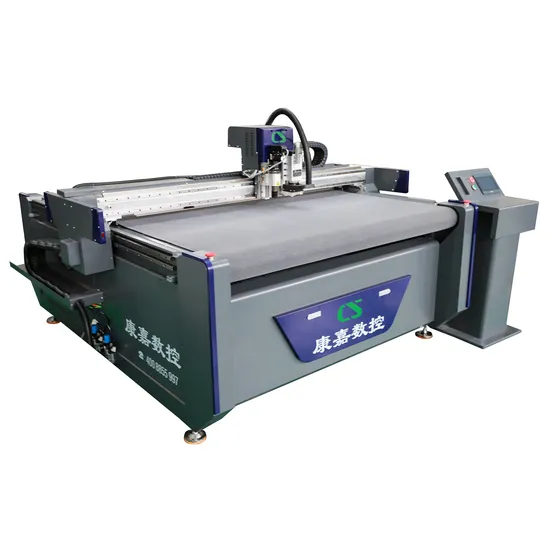

General description of the equipment body
The equipment sub-assembly and main core components are divided into the following parts: automatic cutting machine host,automatic type setting software, electronic control system, vacuum pump, linear guide rail, vibrating cutter head, driver, motor,gear rack,discharge rack, etc.
Mechanical frame part
1. The cutting table is a fully cast aluminum vacuum cavity aluminized plate socket drilling platform + high-density fiber felt
2. The main bracket is a welded steel structure Power drive part
1. The X and Y axes all adopt belt width transmission to meet the requirements of long-term cutting;
2. Use internationally renowned brushless servo motors and X-direction unidirectional motor drives to ensure equipment stability and cutting accuracy;
3. It has excellent continuous operation capability and can operate continuously 24 hours a day, 7 days a week, without shutting down for cooling;
4. Use a high-efficiency vacuum pump with strong power to prevent slipping during cutting. The vacuum pump is embedded in the cutting machine to reduce space occupation Product Parameters
Model | CTS-SL1615 | CTS-SL1625 | CTS-DT1625 |
Effective cutting area | 1500*1600(L*W) | 2500*1600(L*W) | 2500*1600(L*W) |
Operating mode | automatic | automatic | Semi-automatic |
Voltage | 110V/220V/380V±10%, 50HZ 60HZ | 110V/220V/380V±10%, 50HZ 60HZ | 110V/220V/380V±10%, 50HZ 60HZ |
Cutting speed | max 1400mm/s (Elite version) | max 1400mm/s (Elite version) | max 1400mm/s (Elite version) |
Cutting thickness | ≤50mm | ≤50mm | ≤50mm |
Power | 9KW | 9KW | 9KW |
Cutting accuracy | ±0.1mm | ±0.1mm | ±0.1mm |
Cutting Materials | Flexible Materials | Flexible Materials | Flexible Materials |
Material fixation method | vacuum adsorption | vacuum adsorption | vacuum adsorption |
Control system | LED touch screen | LED touch screen | LED touch screen |
Transmission interface | USB /inernet port | USB /inernet port | USB /inernet port |
Drive motor | Panasonic(Elite version) | Panasonic(Elite version) | Panasonic(Elite version) |
Rail | PMI | PMI | PMI |
Safety device | emergency stop button, infrared beam, anti-collision | emergency stop button, infrared beam, anti-collision | emergency stop button, infrared beam, anti-collision |
Architecture | integrated framework | integrated framework | integrated framework |
Application Suitable for cutting flexible materials, such as leather, textiles, clothing, fur, foam board, etc. It is also equipped with a milling cutter to better assist in cutting and trimming advertising KT boards,acrylic board cutting and trimming,engraving and cutting wooden boards, cutting and processing crystal glass, cutting and processing PTFE boards, cutting and processing various gaskets, and cutting and trimming cards.
Certifications
Company Profile
Quality:
Integrated welding frame body,the preferred parts work stable,long service life. Service:
Lifetime after-sales, 24-hour standby service free update software,version and other regular visits.
Secure:
Infrared induction + mechanical collision avoidance system is safer and more assured.
Feature:
Eight kinds of cutter head interchange, meet a variety of materials cutting,punching.indentation,etc., One machine multi-purpose support multi-cutter head equipment customization. Precision:
Higher cutting accuracy. The error is within 0.lmm.
Environmental protection:
Cold cutting dust-free, smoke-free,natural environmental protection does not destroy the material
Brain power:
Automatic cutting equipment, automatic plate holding software. Save materials and eliminate waste. Packaging & Shipping
FAQ
Q: 1. How can I choose a suitable cutting machine?
A: Please provide us some info, then we can recommend you the suitable machine:
1)What materials are going to cut? 2)What's the largest size of original materials? 3)What's the thickness of materials? Q: 2. Can you design a machine for me depending on my requirements? A: Of course, we will discuss details with you and give you our professional suggestion for the machine ensure the machine could match all your requests with best cost performance. Q: 3. What should I do if the machine has any problem in future? A: We supply online technical support and door to door service. Anything confuse you, just contact us. Q: 4. What's the warranty policy? A:Standard warranty is 12 months upon delivery. Main parts are free of charge(except consumable parts) when problems happened because of quality problem during this period. Problems caused by wrong operate will also well-solved.
Q:5.What is the Price and payment terms? A:EXW,CIF,FOB we all can accept payment:TT/Paypay/LC/Western Union.etc Q: 6.What's the package? A: Film packaging+wooden case. Fumigation-free plywood case is also available.
>>
