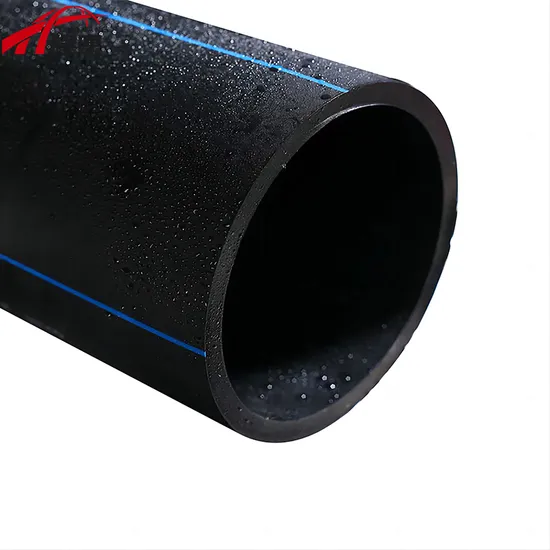

Resilient HDPE Pipe for Agriculture with Wear Resistance and Long Lifespan

Product Description

Items	hdpe pipe
Material	High Density Polyethylene
Size	20 ~ 1600 mm
Color	black, blue or black with blue strip
Connection	Welding
Pressure	PN6,PN8,PN10,PN12.5,PN16,PN20,PN25
Thickness	2.3mm - 117.6mm
Standard	ISO4427, GB/T13663
Certification	ISO14001,OHSAS18001,ISO9001,CE

Size	PN2.0MPa	PN1.6MPa	PN1.25MPa	PN1.0MPa	PN0.8MPa	PN0.6MPa
	SDR 9	SDR 11	SDR 13.6	SDR 17	SDR 21	SDR 26
OD(mm)	thickness	thickness	thickness	thickness	thickness	thickness
20	2.3	2.3
25	3.0	2.3	2.3
32	3.6	3.0	2.4
40	4.5	3.7	3.0	2.4
50	5.6	4.6	3.7	3.0
63	7.1	5.8	4.7	3.8
75	8.4	6.8	5.6	4.5
90	10.1	8.2	6.7	5.4	4.3
110	12.3	10.0	8.1	6.6	5.3	4.2
125	14.0	11.4	9.2	7.4	6.0	4.8
140	15.7	12.7	10.3	8.3	6.7	5.4
160	17.9	14.6	11.8	9.5	7.7	6.2
180	20.1	16.4	13.3	10.7	8.6	6.9
200	22.4	18.2	14.7	11.9	9.6	7.7
225	25.2	20.5	16.6	13.4	10.8	8.6
250	27.9	22.7	18.4	14.8	11.9	9.6
280	31.3	25.4	20.6	16.6	13.4	10.7
315	35.2	28.6	23.2	18.7	15.0	12.1
355	39.7	32.2	26.1	21.1	16.9	13.6
400	44.7	36.3	29.4	23.7	19.1	15.3
450	50.3	40.9	33.1	26.7	21.5	17.2
500	55.8	45.4	36.8	29.7	23.9	19.1
560	62.5	50.8	41.2	33.2	26.7	21.4
630	70.3	57.2	46.3	37.4	30.0	24.1
710	79.3	64.5	52.2	42.1	33.9	27.2
800	89.3	72.6	58.8	47.4	38.1	30.6
900		81.8	66.2	53.3	42.9	34.4
1000		90.2	72.5	59.3	47.7	38.2
1200			88.2	67.9	57.2	45.9
1400			102.9	82.4	66.7	53.5
1500			110.2	88.2	71.4	57.6
1600			117.6	94.1	76.2	61.2

Advantages:
√ Exceptional impact strength: Designed to endure minimal damage during handling and installation, ensuring a seamless setup process.
√ Outstanding corrosion resistance: Guarantees a long-lasting and highly efficient service life in diverse environments.
√ Superior chemical resistance: Perfectly suitable for a wide array of applications, delivering versatility and reliability.
√ Lightweight design: Facilitates easy handling, reducing the effort required during transportation and installation.
√ Unmatched flexibility: Allows for straightforward installation, adapting effortlessly to various terrains and conditions.
√ Availability in extended lengths: Minimizes the need for joints, enhancing structural integrity and reducing potential leak points.
√ Excellent abrasion resistance: Ideal for pumping slurries, ensuring durability even under challenging conditions.
√ Robust UV resistance: Suitable for use in exposed locations, providing enduring protection against the elements.
√ Minimal friction losses: Reduces pumping costs by maximizing efficiency in fluid transport.
√ Multiple jointing methods: Offers a broad range of application options, accommodating various construction needs.
√ Comprehensive range of fittings: Supports diverse installation requirements, providing versatility and convenience. Application:
Municipal water supply Commercial & Residential water supply Water & Wastewater Treatment plants/Corrosive & Reclaimed Water/Sprinkler Irrigation Systems & Drip Irrigation Systems Industrial liquids transportation Swimming Pool Piping Sewer, storm & Sanitary Pipelines Cable duct
Company Information
Hubei Haiwei Pipe Industry Co., Ltd. finds its home in the strategically located Chibi City, Hubei Province, affectionately known as the "South Gate of Hubei". As a pivotal part of the Wuhan City Circle, it boasts unique geographical advantages. Spanning an impressive 20,000 square meters, the company is fortified with fixed assets valued at approximately 130 million yuan.
Established in 2021, Hubei Haiwei Pipe Industry Co., Ltd. operates as a subsidiary of the prominent Jiangsu Haiwei Plastic Technology Co., Ltd. With a robust investment from its parent company, it shares comprehensive production processes and patented technologies. Our expertise encompasses the research, production, and development of plastic pipes, with a specialization in polymer materials disciplines. Our product offerings include a range of Polyethylene (PE) pipes and fittings for water supply, large-diameter sewage discharge, steel mesh skeleton polyethylene (PE) pipes, electrofusion pipe fittings, MPP power cable protection tubes, and more, adhering to both national and enterprise standards.
Hubei Haiwei Pipe Industry Co., Ltd. has forged strategic alliances with the Government Water Conservancy Bureau, China Railway, China Construction, CRRC, and various government agencies such as China Communications Construction Company, alongside numerous state-owned enterprises. Our production capacity has soared to over 20,000 tons annually, supported by assets surpassing 130 million yuan and a fleet of over 100 sets of advanced equipment.
The parent company has proudly attained national CNAS laboratory qualification, along with a high-tech Technology enterprise certificate, and certifications including ISO9001, ISO14001, ISO10012, ISO18001, China Environmental Labeling, Xinhua Water Saving, and Five-star after-sales service, elevating our products to a distinguished level of branding and quality assurance.
At Haiwei, our dedicated team aspires to be the premier supplier of municipal pipelines in China. Guided by core corporate values of "pragmatic innovation, unity and forge ahead, customer supremacy, harmonious sharing," and driven by our mission to "lead the direction of the pipeline industry," we are committed to professional management and brand development. Your satisfaction is our greatest reward, and the responsibilities entrusted to us fuel our relentless pursuit of progress. Together, let's pave the way for a brighter future and contribute to enhancing the quality of life for all!
Certification
Packing and Delivery
FAQ
Q1: May I get one sample before placing an order?
Re: Certainly! We offer samples to ensure you experience the quality firsthand. For our standard products, samples are complimentary-you'll only cover the freight. For premium products, you'll handle freight and a nominal product fee. Once we establish a solid partnership or you become a valued VIP customer, you'll enjoy free samples on demand.
Q2: Which payment options are available with your company?
Re: We provide flexible payment solutions to accommodate your needs, including T/T, L/C, and Ali trade insurance. Choose the option that best suits your convenience.
Q3: How and when will my goods be delivered after payment?
Re: For smaller orders, we ensure swift delivery via international couriers like DHL, FedEx, and TNT, or by air. Typically, you can expect your goods within 3-5 days post-dispatch. For larger quantities, economical sea shipping is your best bet. Delivery times depend on the destination port and may range from several days to a few weeks.
Q4: Can I use a custom label or packaging for my order?
Re: Absolutely! We are more than happy to accommodate your specific labeling or packaging needs. Just let us know your requirements.
Q5: How do you ensure the quality of the products you supply?
Re: We uphold honesty and responsibility as core values, ensuring all products we supply meet high standards. Every item is rigorously tested, and we provide a Certificate of Analysis (COA) to guarantee quality before dispatch.
Q6: Is the price displayed on this page accurate?
Re: The prices listed serve as a reference point. For the most up-to-date pricing, please reach out to us directly.

---
