Qmc Magnetic Quick Mold Clamping System for 1800t Injection Machine

Product Description

China QMC Magnetic Quick Mold Clamping System for 1800t injection machine
√ Double sided magnet technology with bigger magnetic suction.
√ Plate thickness only 37mm,with more space of mold capacity.
√ All steel surface with greater rigidity.
√ Strong magnetic force to hold the mold,no need electricity to support,enegy-saving.
Product Description
What is magnetic plate for quick mold change ?

The magnetic plate is a new type of magnetic quick mold clamping system with electric pulse opening and closing magnetic force. The magnetic circuit is designed by using the characteristics of different permanent magnet materials. The distribution of internal magnetic field lines is controlled by the electronic control system. The system reaches the internal balance and then uses the magnetic force to hold the mold.

The magnetic clamping system is used to fix the mold on the injection machine.Magnetic plate is designed for the traditional injection machine and give solution for long working time on change molds, complex operation, and low security.This system uses permanent magnet sucker as fixed plate and moving plate, just by simple actions of magnetization and demagnetization, will fix & change mold, which can indeed change mold in 3 minutes.The injection molding machine with magnetic plate is improved mold change time to 3 minutes but without changing the original structure, it is practical and convenient.
Electro-Permanent Magnet Principle :


Magnetic Plate Technical Parameter :

SEQ	Description	Honeycomb Type	Ordinary Type
1	Power Voltage	AC380V 50Hz
2	MAG/DEMAG time	0.5s~3s
3	Magnetic plate thickness	37mm	50mm
4	Magnetic field penetration depth	≤25mm
5	Proximity sensor distance	0~0.2mm
6	Contact surface temperature	≤120
7	Pole size	70*70mm Hexagon	50x50mm Square
8	Magnetic force of unit area	16kg/cm²

Advantages :
◊ Easy Installation ◊ High Safety ◊ High Efficiency
◊ Save Space ◊ Easy Operation ◊ Economical and Practical

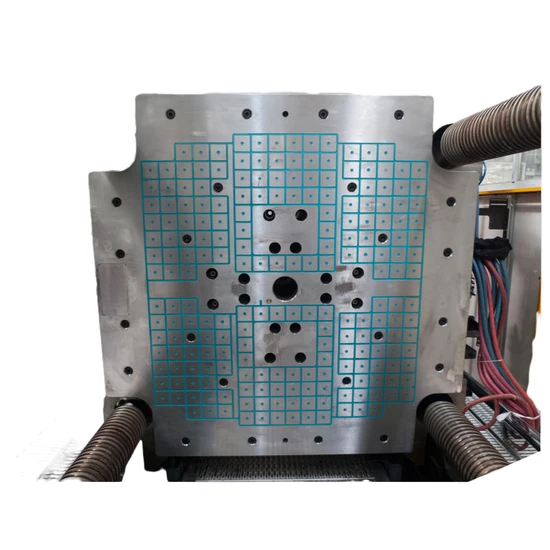

Magnetic plate Pictures :
Our Services

Packaging & Shipping

Each set includes :

Company Information
About us:
Workshop :


Exhibitions :
Certificates :

---
