Diamond Grinding Wheel Dresser Chisel Type Single Point Profile Dresser

Product Description

Grinding Wheel Diamond Dresser, Chisel Type Single Point Profile Dresser
A diamond dresser has a single or multiple diamonds mounted on a tip or shank by a sintering process. Diamond dressers are widely used for
truing and dressing of abrasives grinding wheels (corundum or silicon carbide)
1. Machining concentric run and geometric shape of the grinding wheel
2. Reproduction of the required produced surface roughness of the grinding wheel
3. Cleaning of grinding wheel surface.
Dressing
The process of exposing new abrasive grain and new sharp cutting edges.
Truing
The process of forming the working face of the grinding wheel so that it is concentric to the axis of the grinding wheel.
Forming
The process of shaping the precise form to the grinding wheel, screw grind wheels and geared grind wheels into the required shape.
SINGLE POINT DRESSERS
Single point dressers are made from carefully selected diamonds. Due to their naturally formed tips they posses a higher abrasive quality and
greater resisting force than polished diamonds.
Elements that decide the Diamond Ct
When ordering a single point diamond dresser, please provide the following information.
Type of abrasive grinding wheel:
(a) Abrasive
(b) Grit size
(c) Hardness
(d) Bonding material
(e) Grinding wheel diameter and width.
Usage conditions:
(a) Angle of attachment
(b) Wet or dry
(c) Depth of cut
(d) Peripheral speed
(e) Material to be worked and surface finish
(f) Plane grinding or form grinding
(g) Machine and precision
Selection Assitance

Wheel Diameter	Diamond Ct.
50	0.3
100	0.5
200	0.5 ~ 0.75
300	0.75 ~ 1.00
400	1.0
500	1.25 ~ 1.50
600	1.50 ~ 2.00
800	2.50

Instruction for Use
• Clamp diamond dresser as short as possible to avoid vibrations.
• Tilt angle of the dresser should be radial 10~15 degrees.
• Infeed up to maximum 0.03mm
• Sufficient cooling must begin with dressing procedure.
• Rotate the dresser frequently can maintain a sharp point and perform ideal dressings.
• Timely remounting increases efficiency.
Boson single point dressers
• From 0.10 up to 3.0 Carat.
• Diamond qualities: A, B, C.
• Natural point or grinded point.
• Fastest delivery times.

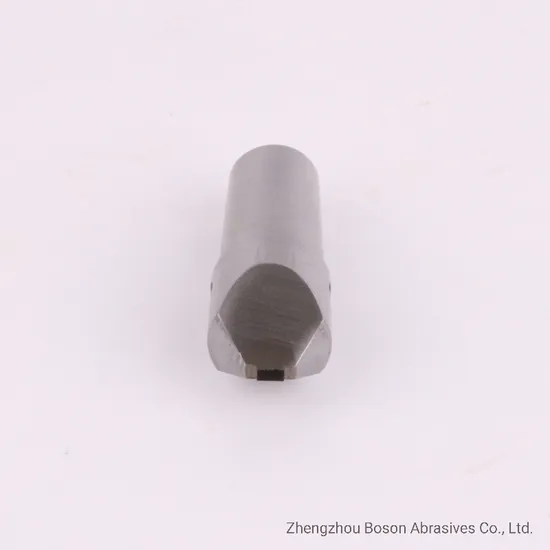

Profiling Dresser, Chisel Type Diamond Dressers
Profiling dresser is a precision tool with highly precise diamond cutting edge geometry. Even the most difficult grinding wheel profiles can be precisely dressed. Selected rough diamonds, the perfect know-how when setting and precise machining guarantee a long tool life. We also have synthetic diamond (CVD) profiling dressers with cost saving.

---
