Competition Price Kx6 +2c Cable For Algeria / Morocco cable marketProduct Description

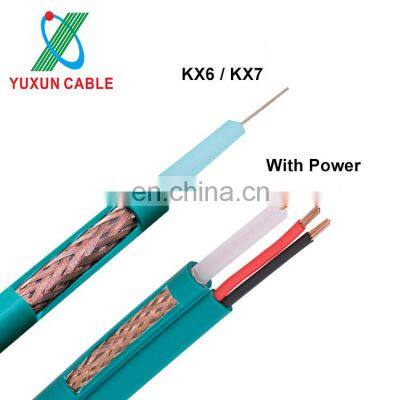

KX6 Coaxial 75Ohm Cable
|
|
Physical Dimensions
|
Inner Conductor
| COND.MATERIAL
| Bare Copper
|
CONSTRUCTION
| 7/0.2±0.003mm
|
Insulation1
| DIAMETER
| Solided-PE
|
MATERIAL
| 3.7± 0.1mm
|
Shield
| BRAIDING MATERIAL
| CCAM
|
BRAID CONSTRUCTION
| 96/0.12±0.005mm
|
Jacket
| DIAMETER
| PVC
|
MATERIAL
| 6.1±0.20mm
|
COLOR
| Green
|
ELECTRICAL CHARACTERISTICS
|
Impedance
| 75Ohm±3
|
Nominal Capacitance(pF/m)
| 67
|
Propagation velocity ration
| 66%
|
Insulation resitance
| ≥1000MΩ/km
|
ATTENUATION
at 20℃
(≤dB/100m)
| 10MHz
| 3.80
|
50MHz
| 8.30
|
100MHz
| 11.80
|
200MHz
| 17.00
|
500MHz
| 27.10
|
800MHz
| 35.70
|
1000MHz
| 41.50
|
Company Information
Production Line
Our client
Packaging & Shipping
Certifications
FAQ
Q1:Are you a trading company or manufacture?
A1:YUXUN cable is a professional manufacturer since 1996, so we can provide perfect solution on cables and can control the quality from the first procedure to the last.
Q2:What is your delivery time?
A2:Normally,our delivery time is 15-20days after get your deposit. .
Q3:What is your MOQ?
A3:Usally,the MOQ of our general coaxial cable product is 15-20KM,but every inquiry will be considered individually.
Q4:What is your general payment term?
A4: Normally, our payment term is 30% deposit by TT when order confirmed, and 70% balanced payment by TT or LC at sight before delivery.
Q5: Can you produce the specfic cable strictly according to clients' requirement?
A5: Yes, we have professional technical team, so we can do ODM for customers.
Q6: Where you are located?
A6: We located in the city of ZHUHAI, quite near to HK/Macao/Shenzhen/Guangzhou.
If you intersting in our cables, pls send the enquiry now!!!
Free sample will be deliveried to your address soon!!
