PRODUCT OVERIEW

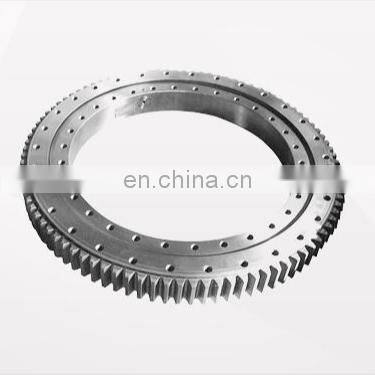

Type: Slewing Bearing
Applicable Industries: Manufacturing Plant, Food & Beverage Factory, Construction works , Energy & Mining, Mining, metallurgy,petroleum, chemical industry,
Brand Name: LIANDONG
Model Number: Roller slewing bearings/customized
Feature: CROSS ROLLER, Low noise, low vibration,high precision
Gear Options: Internal and external gears
Seals Type: Customized
Place of Origin: Henan, China
Product Name: Factory sell slewing support rotating bearing
Material: 50Mn/42CrMo/GCr15/ GCr15SiMn
Package: Professional export package
Certificate: SGS, ISO9001:2000
MOQ: 1 Set
Delivery Time: 15~45 Days
Application: Mining, metallurgy, petroleum, etc
OEM&ODM: Welcome
Bore Size: 90mm~7500mm
Outside Diameter: 100mm~9000mm
Advantages
1. LUOYANG LIANDONG MACHINERY CO,LTD.It was built early and has a stable design, R & D and manufacturing team with excellent technology.2. In 10 years, the construction of the new plant has been started. The economic strength is strong, the R & D force is strong, and the technology is constantly improved to ensure that the products are constantly updated and the quality is constantly improved.3. Due to its advantageous geographical location. It is convenient to purchase raw materials and deliver finished products, with developed logistics and low cost. The same position advantage of foreign trade export, from Lianyungang port and Rizhao Port, Qingdao port are very close. Logistics cost savings, so as to drive product price advantage!4. Advanced production equipment, constantly increase and update production equipment, there are molding batch production line, large piece production line, bulk production line, division of labor is clear, high production efficiency, cost saving.
Product process
1、FORGOING
2、Rough turning
Rough and finish turning by CNC lathes. Each process will be checked according to the drawings. Especially for the oil groove, ellipse, triangle, outer circle(ring) allowance, inner circle(ring) allowance, and chamfer must meet the requirements of the drawing. Well prepared for next steps.
3、Heat treatmeng
Heat treatment will be done according to the types of row material. Row material must ensure the hardness and heat treatment deformation are controlled within the qualified range.
4、Rough Machining
A: Surface: Make sure that the machine is cooled in place, control the surface(plane)bending and parallel difference(tolerance). Pickling flaw detection for the first product to see whether there is burning damage or crack.
B: Outer diameter(ring): Control ellipse, triangle and size. When the product height is large, repeated grinding is needed .
C: Inner diameter(ring): Control ellipse, wall thickness and taper. If the product height is large, the vertical difference should meet the requirements.
D: Raceway: Due to the particularity of the product, it is necessary to grind at a fixed distance and ensure that the cooling is in place. The flaw detection of wall thickness for the sample should be qualified not less than 80%.
5、Hardness lathing
Ensure chamfer, oil groove smooth and without vibration.
6、 Additional tempering & Teeth processing The temperature should be within 150 degrees to eliminate interal stress
7、 Finish grinding
100% finish grinding the surface, inner diameter and raceway. The key function is to improve the products’ accuracy, eliminate the ellipse and triangle deformation because of the tempering.
8、 The second additional tempering & Final grinding
All procedures should be processed strictly in accordance with the drawings. Special for the temperature difference during tempering; roughness and angle during raceway processing for outer&inner diameter should be 100% inspected.
9、Magnetic particle inspection 、Degaussing,cleaning & check appearance
10、Finally Assembling
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
The above is all the process flow. We are also very serious about the later packing. We support packing and acceptance in the form of video or on-site visit. Welcome to visit!
PACKING&SHIPMENT
We will prepare the best choice for transportation and escort your goods.
Our company
Luoyang Liandong machinery Co., Ltd. was established in 2011 with a registered capital of 6 million. The company is located in Luoyang City, Henan Province.We are specialized in the development, production, transformation and maintenance of power equipment,mining equipment, cement machinery equipment, mixing equipment, energy-saving and environmental protection equipment,automatic control equipment, hydraulic and pneumatic equipment, engineering machinery, petroleum equipment, mechanical transmission equipment, etc.; We also produces and processes reducer, gearbox, gear, gear shaft, gear ring, spiral gear, helical gear and bearing , casting and forging, construction mold, injection mold, non-standard mold.To undertake the transformation and maintenance of non-standard equipment and production line in large factories and mines. To provide customers with the best demand solutions.
We have a mechanical processing branch factory, located in ximagou Industrial Park, Luoyang City, with gear processing, mining accessories processing, power equipment accessories processing, shield machine parts processing and other functional workshops;the existing professional production and technical staff of more than 20 people, equipment hobbing machine, gear grinding machine,lathe, CNC machine tool and automation equipment more than 10 sets, plant area of more than 3000 square meters, is the west of Henan Province One of the most professional production and processing centers for mechanical parts. Our company has long maintained cooperation with major scientific research institutes in the development of scientific and technological projects,which can be targeted for different industries and various complex working conditions to meet the personalized needs of users.Luoyang Liandong machinery Co., Ltd. takes standardized management, perfect pre-sale technical consultation, after-sale technical guidance, customer-centered, to meet the purpose of users. Sincerely new and old customers to our company's consistent support and guidance.
Our service
1.Both OEM and ODM services are available for every distingushied customer.2.We will provide you with the most favorable logisticsand distribution to ensure the safety of your product.
3.We support multiple payment methods such as I/c , T/T and Western Union.
4.Any problem about our products, we will glad to provide repair and engineering consult service, until it is solved.
5.Liandong focus on providing one-stop products and services based on the years of oversea and local experiences to ensure every customer get satisfied product.
FAQ
1.Are you a manufacturer or a trading company?We are a factory,and we can manufacture shafts, gears, mining spare parts and so on by ourself.
2.What kinds of mechanical equipment are avaiable in your factory?
We can provide mixers, gear shafts, slewing bearings and other equipment. Customized for users is also our service scope
3.Will your mining spare parts be inspected when exported?
All our mining spare parts are approved by third party.
4.Do you usually pay the insurance and freight?
We always consider FOB, but the fee of insurance and freight can be negotiated.
>>
