US$1,000.00-2,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Type
Powder Coating Machine
Packaging
Carton/Wood Caseen
Delivery
3-5days After Receive The Payment
Operational Method
Automatic
Name
Colo-660 Automatic Powder Coating Equipment
Product
Colo-660 Automatic Powder Coating Equipment
Production Capacity
300sets/Month
Product Description

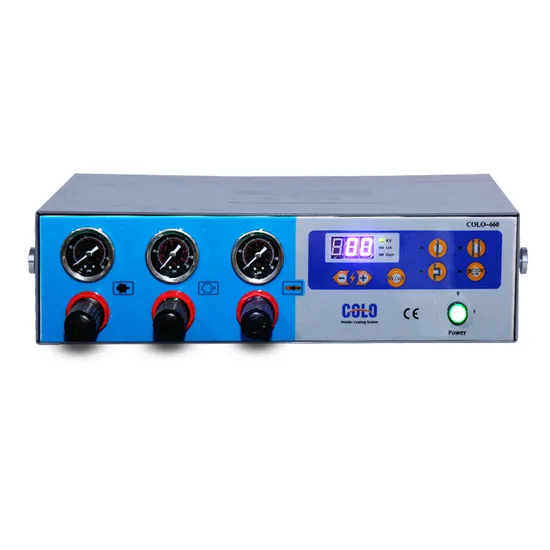

Automatic Powder Coating Equipment
Model: COLO-660-A
Advantages
1 COLO-660 control unit, excellent, pulse coating, suitable for coating complex parts
2 Warranty will be 12 months.
3.Used in automatic powder coating line
Manual coating equipment-structure
| 1 | Control unit |
| 2 | Auto powder coating gun |
| 3 | Spare parts packaging |
| 4 | Cleaning and dosage pipe |
| 5 | Power wire |
COLO-08-A Spray Gun
Automatic powder gun - components
| 800102 | Shaft | 800101 | cascade |
| 800105 | Connector | 800108 | Gasket |
| 800104 | Hollow bolt | 800109 | Intermediate piece |
| 800106 | Deflector16mm, 24mm,32mm,50mm | 800107R | round nozzle |
| 800107F | flat nozzle | 800103 | sleeve |
| 800112 | powder tube set | | |
The parmater of the machine
| MODEL | COLO-08-A powder coating machine |
| Gun Weight | 500G |
| Rated output voltage | 24VDC |
| Input voltage | -200KV |
| Maximum output current | 180Ua(max) |
| Maximum output voltage | 0-100K(adjustable) |
The gun match with the reciprocater and the control unit set in the control box for Automatic
powder coating job.
Any furthermore information please contact us or inquiry online.
Contact us for more product detail!!!
>>
