Basic Info.
Type
Worktable Milling Machine
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Certification
GS, CE, RoHS, ISO 9001, EAC
Size of Worktable
1500X320mm
Table Travel
1000/320/400mm
Horizontal Axis Taper
ISO40
Spindle Speed Range
40-1300rpm
Distance From Spindle Face to Table
140-540
Weight of Machine Tool
2000kg
Transport Package
Wooden Box
Specification
2200x1820x2350
Production Capacity
5000 Piece/Year
Product Description
Product Description
The main performance characteristics:1.M Hanna high strength cast iron, internal honeycomb rib structure, high rigidity, long service life.
2.Spindle adopts imported from Japan King combination diamond. After the quenching and tempering and frequency processing, after fine grinding with 4 imported bearings (other manufacturers spindle 3 bearing), ensure high quality and high precision.
3.Three shaft screw fine grinding with advanced phosphor bronze nut, durable.
4.Horizontal milling with 4 gear shaft speed (other manufacturers for the 2 gear shaft), a wide range of variable speed, torque.
5.Many parts of the machine tools have been applied for patent

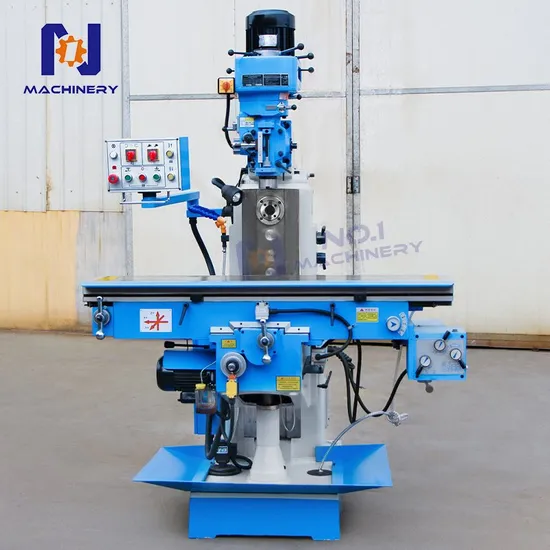

Product Application:The milling machine is a broad-spectrum tool type milling machine, it can undertake vertical milling, horizontal milling, drilling and boring, reaming and grinding and other processing work.
These series machines can process various complex geometry parts, and especially suitable for the manufacturing of tool, clamps, moulds and textile industry.
The milling head of machine is installed in the front-end of the rocker can do the rotation of F-B±45ºand L-R ±90ºand the rocker can move front and back on the upper bed and can swing 360º.
The three directions guide rail pairs of the machine all have wear-resisting measures with high accuracy stability and long service life. Product Parameters
PARAMETER ITEM | UNIT | X6332P | X6336P |
Size of worktable | mm | 1500x320 | 1500x360 |
Table travel | mm | 1000/320/400 | 1000/360/450 |
T-groove | - | 3-14x70 | 3-18x80 |
Vertical spindle taper | - | R8 | MT40 |
Horizontal axis taper | - | ISO40 | ISO40 |
Spindle speed range | rpm | 50HZ:65-4500 / 60HZ:80-5440 | 50HZ:65-4500 / 60HZ:80-5440 |
Horizontal axis speed range | - | 40-1300 | 60-1800 |
Spindle stroke | mm | 127 (V) | 127(V) |
Spindle feed range | mm | 0.045,0.086,0.142 | 0.045,0.086,0.142 |
Distance from spindle face to table | mm | 140-540 | 140-590 |
Distance from end face of horizontal shaft to table | mm | 0-400 | 0-450 |
Main motor power | kw | 3HP/3kw | 5HP/4kw |
Weight of machine tool | kg | 2000 | 2400 |
External dimensions | mm | 2200x1820x2350 | 2600x2200x2550 |
Detailed Photos
Packaging & Shipping
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Zaozhuang NO.1 CNC Machine Tool Co.,LTD is located in the beautiful city, Tengzhou,Shandong Province,China.We specialized in manufacturing & exporting machine tools to the world for more than 30 years. Our factory has More than 30,000m² of the factory with more than 200 workers.We have got many international certifications such as lSO, WIPO, CE, EAC,BV, TUV, SGS, and patents, Our machines have been exported to more than 100 countries and regions, and provide long-term overseas technical guidance and after-sales service for these countries .We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management. Strictly QC control with more than 24 steps testing processes.We wish to cooperate sincerely with friends all over the world to realize mutual development.
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,I can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as lathe machine ,cnc lathe machine ,milling machine ,cnc milling machine ,vertical machining center ,drilling machine ,radial drilling machine ,sawing machine ,shaper machine and so on .
3: Where is our factory located? How can I visit there?
A: Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A: FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A: T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
>>
