Product Details
Product Description
Product Description

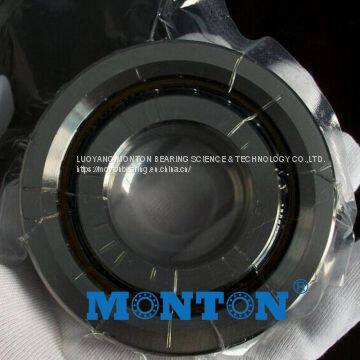

25TAC62BSUC10PN7B
| Bearings | Demension
(mm) | Load Ca (N) | Rotation
(min-1) | Stiffness (DB,DF) (N) | Rigidity (DB,DF)
(N/μm) | Torque
(N･m) | Weight |
| d | D | B | r
Min | r1
Max | Lub. | Oil. | H | H | H | KG |
| BS2562 | 25TAC62 | 25 | 62 | 15 | 1 | 0.6 | 29.9 | 5,200 | 6,900 | 2,280 | 850 | 0.15 | 0.252 |
Ball Screw Support Bearings - BS Series
The BS series of ball screw support bearings are double row, angular contact thrust ball bearings, with a 60° contact angle. They are equivalent to two single row bearings in a back-to-back arrangement, with a single outer ring. Bearings are supplied ready to be mounted. They come greased with long life lithium soap grease, with synthetic hydrocarbon base oil. Under normal operating conditions, the bearings are greased for life. A relubrication groove on the outside surface of the outer ring allows the bearings to be relubricated during operation if necessary. The bearings are sealed on both sides. The low friction contact lip seal runs in a grove in the inner ring giving excellent sealing characteristics, while minimising torque and heat generation. Preload is set during manufacture so that the correct loading is achieved when the lock nut is tightened to the recommended torque.
BS-DT Series
The matched DT pairs are essentially the same as the individual bearings. The two individual bearings have been matched together in the paired version. Both bearings have a V-shaped mark on the outer diameter to ensure that they are arranged correctly.
Features and Benefits
•60° Contact angle enabling the bearings to support large axial forces
•Double row to support axial force in two directions
•Contact lip seal provides excellent sealing with low friction and heat generation
•Greased for life (under normal operating conditions)
Application:
Application: Angular Contact Ball Bearing is widely used in cars, compressors, construction, electric motors, food industry, home appliances etc. As a rolling element, it turns the world.
Bearing
NO. | I.D | O.D | Width | Weight |
| d (mm) | D(mm) | B(mm) | kg |
| 45 TAC 75B | 45 | 75 | 15 | 270 |
| 40 TAC 90B | 40 | 90 | 20 | 674 |
| 40 TAC 72B | 40 | 72 | 15 | 275 |
| 35 TAC 72B | 35 | 72 | 15 | 310 |
| 30 TAC 62B | 30 | 62 | 15 | 224 |
| 25 TAC 62B | 25 | 62 | 15 | 252 |
| 20 TAC 47B | 20 | 47 | 15 | 135 |
| 17 TAC 47B | 17 | 47 | 15 | 144 |
| 15 TAC 47B | 15 | 47 | 15 | 144 |
| 60 TAC 120B | 60 | 120 | 20 | 1160 |
| 55 TAC 120B | 55 | 120 | 20 | 1230 |
| 55 TAC 100B | 55 | 100 | 20 | 714 |
| 50 TAC 100B | 50 | 100 | 20 | 778 |
| 45 TAC 100B | 45 | 100 | 20 | 842 |
Item List :
BS75110-2RZQFCC/NB15
BS50100TN1/P4
BS4575TN1/P4
BS45100TN1/P4
BS4090TN1/P5UL
BS4090TN1/P4UO
BS4090TN1/P4DBB
BS4090TN1/P4
BS4072TN1/P5UO
BS4072TN1/P5TTB
BS4072TN1/P4DBB
BS4072TN1/P4
BS3572TN1/P4UO
BS3572TN1/P4
BS3572P4UL
BS3072TN1/P5SUL
BS3072TN1/P4UO
BS3072TN1/P4DFB
BS3072TN1/P4
BS3072P5
BS3072P4UO
BS3062TN1/P5UO
BS3062TN1/P5UL
BS3062TN1/P5DBB
BS3062TN1/P4UO
BS3062TN1/P4
BS3062TN/P4TBTB
BS3062TN/P4DBB
BS3062TN/P4
BS2562TN1/P5UO
BS2562TN1/P5TBTB
BS2562TN1/P5
BS2562TN1/P4UO
BS2562TN1/P4UL
BS2562TN1/P4TBTA
BS2562TN1/P4DFB
BS2562TN1/P4DBB
BS2562TN1/P4
BS2562TN/P5DBB
BS2562TN/P4QBCB
BS2562P4UL
BS2047TN1/P4UO
BS2047TN1/P4
BS1747TN1/P4UO
BS1747TN1/P4DBB
BS1747TN1/P4
BS1747TN1
BS1547TN1/P4
BS 3062 TN1P4GA ( 30.TAC.62 )
BS 2047 TN1P4GA ( 20.TAC.47 )
