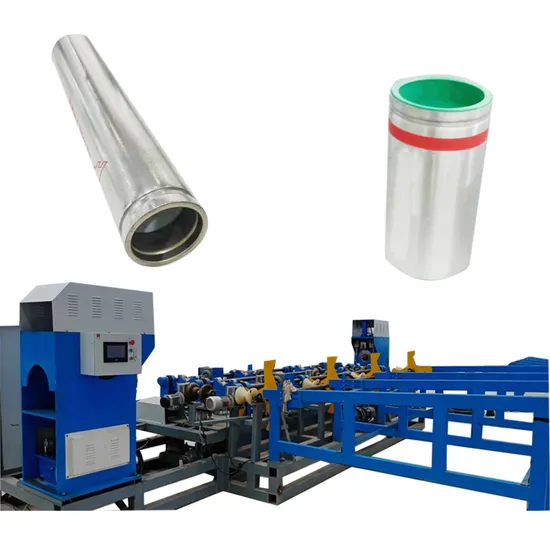

Pipe End Grooving Machine for Fireighting Pipe

US$45,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
200
Forging Forming Method
Pree and Rolling
Power Source
Pneumatic
Feature
Automation
Certification
CE
Warranty
18 Months
Customized
Customized
Advantage
Work Flexible
Condition
New
Automatic
Full Automatic
Pipe Size
DN30-DN200
Multilingual Operation
Avaliable
Transport Package
Container
Specification
219mm
Trademark
soar
Origin
China
HS Code
8455229090
Production Capacity
2/1month

Product Description

Product Description
1 PLC control
2 Double stations (or multiple stations).
3 Automatic conveying pipe
4 Press grooves on both sides separately
5 Automatic stacking after finishing pressing the groove
No
Item
parameter
note
1
structure type
Four-station host, electric mechanical feeding mechanism

2
Alveolar range
20-204mm, pipe length 1.8-6m
can be customized
3
Tube thickness
Max 6mm

4
Flare flanging
More than 1-3mm of pipe diameter, proportional to pipe diameter and thickness

5
Pressure groove size
Meet the industry standard CJ/T156-2001 standard

6
way to control
Touch screen input, PLC programming control

7
Pressure roller configuration
20-60, 65--80, 100--150, 204mm




8



Power
Feeding motor 1.5KW
One piece
Adjust the aligned motors 0.37KW
One piece
Rotating arm motor 1.5KW
three piece
Roller lifting motor 0.75KW
Two piece
Roller motor 0.37KW
Two piece
Feeding mechanism lifting 0.55KW
One piece
Spindle motor 4.0KW
Two piece
Oil pump motor 1.5KW
Two piece
Actual average power consumption 8KW

9
power supply
Three-phase four-wire system

10
Measure
8.2x5x2m

11
Productivity
An average one for piece each minute.
