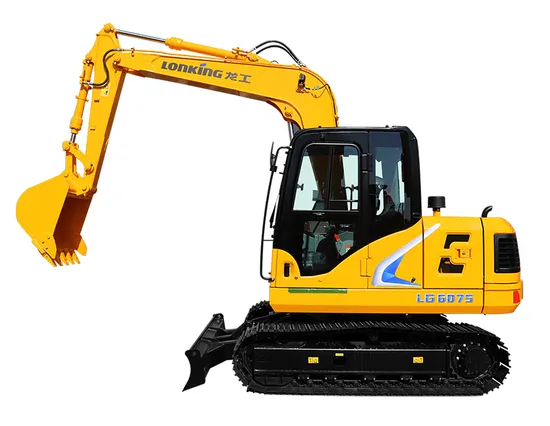

High Quality 7.68ton Hyduralic Crawler Excavator Digger

US$14,925.00-26,866.00 1 Set (MOQ)

Basic Info.

Model NO.
LG6075
Bucket
Shovel
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.1~0.5m³
Size
Small-Scale
Certification
CE, ISO9001: 2000
Condition
New
Self Weight
7680kg
Max Digging Radius
6365mm
Max Digging Depth
4140mm
Max Digging Height
7100mm
Max Dump Height
5119mm
Max Digging Radius on The Group
6245mm
Shipping Length
6231mm
Shipping Height
2780mm
Tumbers Distance
2130mm
Radius Swing Center to Rear End
1822mm
Counterweight Ground Clearance
803mm
Track Gauge
1750mm
Overall Width
2220mm
Width of Upper Structure
2200mm
Track Shoe Width(Standard)
450mm
Origin
China
HS Code
8429521200
Production Capacity
20000

Product Description

Product Description
Model LG6075E
Brand Lonking
Original Shanghai
Whole Machine Self Weight kg 7680kg
Bucket Capacity m3 0.31
Capacity Range m3 0.12-0.4
Ground Pressure KN 35
Travel speed KM/H 4.5/2.8
Rotating Speed rmp 11.69
Gradeability % 70
Engine Model Yammar 4TNV98-ZCSLK
Power KW 44KW/2200rpm
Displacement L 3.319
Hydraulic System Working Pressure Mpa 27.4
Flow capacity L/min 156.2
Fuel Capacity L 94
Digging Force The Max bucket Digging Force KN KN 56
The max arm Digging Force KN 38
Bulldozing Plate Size mm 2000*395
Operating Height mm 371
