US$5,299.00-6,999.00
|
1 Piece
(MOQ)
|
Basic Info.
Structure
Radial Drilling Machine
Controlling Mode
Artificial
Automatic Grade
Automatic
Certification
GS, CE, RoHS, ISO 9001
Distance From Spindle Nose to Table Surf
320-1220mm
Distance Between Spindle Axis and Column
350-1600mm
Spinde Speeds Range
25-2000rpm
Spinde Feeding Range
0.04-3.2rpm
Transport Package
Free Fumigation Plywood Packaging Steel Base
Specification
2500*1070*2840mm
Production Capacity
500pieces/Year
Product Description

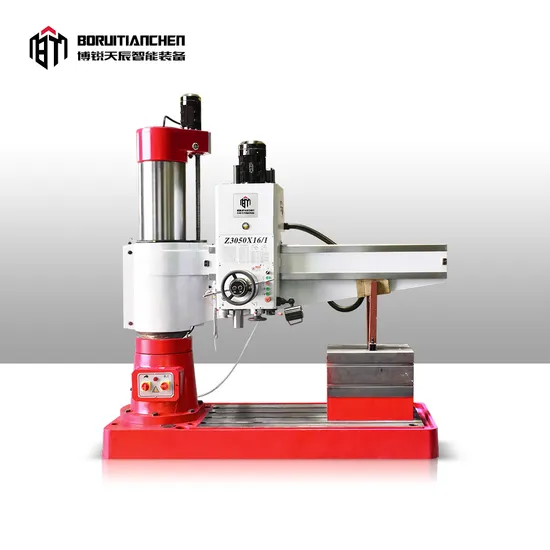

Vertical Large Radial Drilling Machine Specification Industrial Radial Arm Drill Z3050
Product Description
Z3050*16 Hydraulic radial drilling machine is a double column, all hydraulic radial drilling machine. With widely use of universal machine, suitable for in machinery manufacturing departments in the processing of small parts, drilling, reaming, reaming, countersink flat and tapping. In process equipment conditions, can also be used for boring.
The main performance characteristics:
1 . Counter balanced spindle
2 . Pressurized lubrication system
3 . Hydraulic clamping with push button controls
4 . Hydraulic preselected shifting of feeds and speeds
4 . Hardended and precision ground ways
5 . Hardened and ground gears and shafts
6 . Heavily ribbed cast iron base and arm
The main specification:
Specifications | UNITS | Z3050×16 |
Max. drilling dia | mm | 50 |
Distance from spindle nose to table surface | mm | 320-1220 |
Distance between spindle axis and column surface | mm | 350-1600 |
Spindle travel | mm | 315 |
Spindle Cone | | No.5 |
Spindle speeds range | r.p.m | 25-2000 |
Spindle speed step | | 16 |
Spindle feeding range | r.p.m | 0.04-3.2 |
Spindle feeding step | r/min | 16 |
Rocker rotary angle | ° | 360 |
Main motor power | kw | 4 |
Movements motor power | Kw | 1.5 |
Weight | Kg | 3500 |
Overall dimensions | mm | 2500×1070×2840 |
Standard Accessories:
Frequency Inverter Main Motor,
Stroke Motor,
Coolant system,
Cube Table ,
Digital Readout of Speeds,
Frequency Inverter,
Work Lamp,
Tools and Toolbox
Optional Accessories:1.Quick change chuck
2.Tapping Chuck
3.Grease Gun
Details Display
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.
>>
