High Precision Swiss CNC Lathe Machine with 3 Axis Travel CNC

Product Description

Product Description

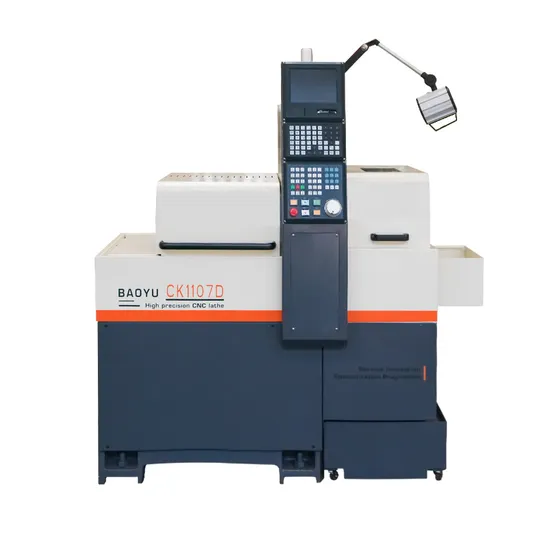

High Precision CK1107D Swiss-Type CNC Lathe: The Ultimate Metal Milling Machine for Precision Metal Cutting
-The CK1107D is a state-of-the-art 3-axis sliding headstock lathe, featuring dual power heads. This cutting-edge design guarantees unparalleled versatility and top-tier performance, setting a new standard in precision engineering.
-Expertly crafted to accommodate profile diameters up to Φ 7mm, this machine delivers precision and accuracy that are simply unmatched in its class.
-Perfectly tailored for extensive, multi-variety, and high-precision processing of slender shaft parts showcasing significant length-to-diameter ratios. It excels in handling intricate and uniquely shaped components with flawless efficiency.
Product Parameters
CK1107D Swiss Type CNC Lathe Machine with 2 Power Heads
Unleashing unparalleled precision and efficiency, the CK1107D Swiss Type CNC Lathe Machine from Anhui Yuzhou Machine Tool Co., Ltd. stands as a testament to advanced engineering mastery. Expertly crafted with two robust power heads, this cutting-edge machine guarantees exceptional accuracy and unrivaled performance for all your intricate machining needs. Embark on a journey of unmatched innovation and superior craftsmanship with this premier offering, showcasing the pinnacle of technological excellence.

Power	Rated Voltage	Three-phase AC 380V
	Rated Frequency	50HZ
	Total Input Power	4.5kW
CNC System	BYSK	YZ150
	Minimum Set Unit	0.001mm
	X Axis Pulse Equivalent	0.0005mm
	Y Axis Pulse Equivalent	0.001mm
	Z Axis Pulse Equivalent	0.001mm
	Maximum Programming Size	±9999.999
	Cutting Speed	1--4000mm/min
	X Axis Rapid Feed Speed	15000mm/min
	Y Axis Rapid Feed Speed	15000mm/min
	Z Axis Rapid Feed Speed	15000mm/min
Main Spindle	Maximum Bar Diameter	Φ7mm
	Main Spindle Through-hole Diameter	Φ8mm
	Main Spindle Center Height from Ground	890mm
	Main Spindle Speed	0-5000r/min
	Main Spindle Motor Power	2kW
Travel	X Axis Travel	38mm(Diameter)
	Y Axis Travel	80mm
	Z Axis Travel	150mm
	X Axis Servo Motor Power	0.4kW
	Y Axis Servo Motor Power	0.4kW
	Z Axis Servo Motor Power	0.4kW
	Guide Rail Form	Linear Guide Rail

Gang Tooling System	Tools Arrangement	12pcs
	Turning& Milling Tools	8pcs
	Tool Size	8*8mm
	Front Drilling	6104Chuck 3pcs
	6104Chuck
Cooling System	Cutting Oil Motor Power	0.18kW
	Cooling Box Capacity	80L
Lubrication System	Motor Power	35W
	Capacity	1.5L
Pneumatic System	Input Compressed Air Pressure	0.4--0.6Mpa
Machine Size	Length * Width * Height	1415*700*1680
	Machine Weight	750kg

CK1107D Configurations
Item	Specification	Origins
CNC System	BYSK150 System	China Baoyu
Main Spindle Motor	2KW Absolute Value Servo Motor	Inovance+Lines
X Aixs Motor	0.4kW Absolute Value Servo Motor	Inovance+Lines
Y Axis Motor	0.4kW Absolute Value Servo Motor	Inovance+Lines
Z Axis Motor	0.4kW Absolute Value Servo Motor	Inovance+Lines
X Axis Screw Rod	185*2006	Taiwan Joint Venture
Y Axis Screw Rod	221*2006	Taiwan Joint Venture
Z Axis Screw Rod	300*2006	Taiwan Joint Venture
X Axis Guide Rail	HGH15	HIWIN/PMI
Y Axis Guide Rail	HGH15	HIWIN/PMI
Z Axis Guide Rail	HGH15	HIWIN/PMI

Detailed Photos
Body Materials
CNC Control System
Inner Structure
Inner Structure Details Introduce:
--1.
This advanced lathe features an innovative left and right gang tooling structure, which accommodates a large array of tools, enables rapid tool changes, and delivers outstanding rigidity.
--2.
Meticulously crafted toexpertly process a wide variety of ultra-slim parts, ensuring exceptional precision and superior quality.
--3.
Boasts a reasonably compact layout, withsleek dimensionsandminimalfloorarea requirements, making it an ideal choice for space-conscious environments.
--4.
The precision-engineered fixedguidesleeve masterfully processes slender shafts up to 150mm in length,ensuringthat each workpiece remains perfectly coaxial with a flawless finish.It is perfectly suited for turning workpieces where the lengthis several times greater than the diameter, offering unparalleled precision and reliability.
--5.Outfitted with two powerful heads, this machine significantly enhances work efficiency, empowering your operations with unmatched productivity.
Electrical Cabinet & Driver Cabinet
With Configurations
The CK1107D CNC Lathe is equipped with an oil film bar feeder, along with a high-pressure oil pump and oil mist machine, significantly boosting lathe performance and extending its operational lifespan through superior lubrication and maintenance.
Processed Product Display
Valuable Suggestions and Insights
--For maximum profile diameters within 7mm, our highly recommended models B07 and CK1107 will meet your needs perfectly. The B07 dazzles with a dual spindle type, while the CK1107 showcases a single spindle type, both designed to deliver exceptional precision and flexibility for all your intricate machining requirements.
--For profile diameters up to 13mm, our elite models B13 and CK1113 stand as your top choices, offering unmatched performance and precision at every turn.
--The CK0620A2 excels in tackling complex-shaped parts, including linear, taper, and arc threads. When paired with a center frame, it masterfully processes slender shaft parts with ease and efficiency.
--The CK0625A is your go-to solution for the intricate processing of precision parts, spanning instruments, meters, electronic connectors, optics, automotive and motorcycle parts, and small hardware, all with superior precision and reliability assured.
--The CK32A3 is a masterful Turning & Milling CNC Lathe, with its variant CK32A3-B offering a dual spindle configuration based on the CK32A3 model, substantially boosting your machining prowess.
--The X42, a sophisticated slant-bed CNC lathe, is expertly crafted for processing shaft and disc parts with intricate shapes and various sizes, guaranteeing adherence to the highest precision standards.
--For further details and personalized guidance, please reach out to us or send your profile drawings. Our experts are eager to provide professional recommendations tailored specifically to your unique requirements.
Company Profile
Anhui Yuzhou Machine Tool Co.,ltd (BYSK Baoyu CNC)stands as a distinguished high-tech enterprise, seamlessly combining R&D, Production, Sales, and Service of advanced products such as CNC systems, CNC machine tools, automatic production lines, and industrial robots, alongside Internet of Things solutions. With roots as Zhejiang Baoyu CNC Machine Tool Co., Ltd, our sprawling manufacturing base in Taizhou, Zhejiang spans 35,000 square meters. Our innovative R&D hub is stationed in Hangzhou, under the name Hangzhou AOGE CNC Technology Co., Ltd. In 2013 , Anhui Yuzhou Machine Tool Co., Ltd was established in Guangde City, Anhui, covering a vast 100,000 square meters.
Our expertise shines in crafting CNC SWISS-type/Sliding Headstock Lathes, High-Precision Gang-type CNC Lathes, Turning & Milling Compound Centers, Flat Bed CNC Lathe Machines, Slant-Bed CNC Lathes, Horizontal CNC Lathes, Vertical CNC Lathes, Single Spindle CNC Machinery, and Automatic Double-Spindle Lathes, among others.All our lathes feature the cutting-edge absolute value servo system and bus connection technology. Our company
boasts
over 10 patents in inventions, utility models, and design, ensuring a leading edge in innovation. Our products
are
broadly applied across sectors such as Communication Equipment, Connectors, 5G Products, Mobile Devices, Household Applications, Defense, Aerospace, Medical Devices, Automotive, Water Heating, Miniature Shafts, Optical Instruments, Timepieces, Glasses, and diverse hardware accessories. Our cost-effective solutions are the epitome of efficiency for automatic batch production across all sectors.
Our commitment to excellence is rooted in modern management philosophies, elevating internal management, and refining manufacturing processes. We proudly hold ISO9001:2016 Quality Management, ISO14001:2016 Environmental Management certifications, along with the Measurement Management System Certificate and the Good Standardization Certificate. Additionally, our products have successfully obtained the CE Certificate and other prestigious certifications.
We thrive as an independent production entity, dedicated to enhancing the added value of each product, fulfilling our mission to Deliver exceptional products and unparalleled services, maximizing value for our esteemed customers.Our business philosophy embodies
Service, Innovation, Specialization, and Pragmatism,
ultimately realizing our vision to
Offer the most cost-effective machine tools worldwide.
FAQ
1. Do you accept OEM/ODM?
Reply: Yes. We warmly welcome OEM/ODM collaborations!
2. How many years of production experience does your company have?
R: Over 10 years. We pride ourselves on having several professional and experienced technical instructors to provide after-sales guidance.
3. Is it possible to deliver quickly (or how many days is the delivery guaranteed, the delivery deadline)?
R: Yes, under common conditions, our lead time is approximately 30-45 working days.
4. What are the after-sales services?
R: Our professional technical team is available online 24/7 to resolve any issues you may encounter.
5. Does this product accept customized services? What specific aspects can be customized? (Such as color, shape, size, etc.;)
R: Yes, we offer customizable services. You can customize various aspects including company logos, colors, shapes, and sizes.
6. Do you accept small quantity orders (or what is the minimum order quantity, etc.)?
R: Yes, even a single machine set is available for order.
7. What are the characteristics of the material of this product?
R: The product is made from high-quality gray cast iron and is CE certified.
8. What are the unique functions and features of this product?
R: Our CNC lathe machine boasts European-quality standards, high cost-effectiveness, and multiple domestic certifications in China.As an independent production enterprisewe have our own technical research team.
9. What are the application areas or uses of this product?
R: Our product is widely applied in communication equipment, connectors, 5G products, mobile phones, household applications, defense industry, spaceflight, medical devices, automotive parts, water heating systems, miniature shafts, optical instruments, timepieces, eyewear, and various hardware accessories.
10. Is it in stock? Can it be wholesaled?
R: Some models are in stock. Please contact us to confirm availability.
11. Are there any second-hand products for sale?
R: No, we do not offer second-hand products.
12. What CNC system do you use?
R: Our CNC operating system is the BYSK190, our own brand, known for its ease of use and comprehensive functions. The LNC system is also available as an option.
13. Are you a factory? Where is your factory located? How can I visit?
R: Yes, we are a factory. Our company is located at Jianshe Road No.1, Economic District, Guangde, Xuancheng City, Anhui Province. We warmly welcome you to visit us.

---
