Top Quality Small Vacuum Hot Film Coating Machine Coater for Lithium Ion Battery Lab Machine

US$3,800.00
1-2 Pieces
US$3,200.00
3+ Pieces

Basic Info.

Model NO.
GN-VC-10H
Type
Blade Coater
Driven Type
Electric
Automatic Grade
Semi-Automatic
Packaging Material
Metal
Packaging Type
Battery
Application
Electronics, Battery
Transport Package
Wooden Box
Specification
500*310*330mm 65KG
Trademark
GELON
Origin
China
Production Capacity
20sets/Month

Product Description

Top quality Small Vacuum Hot Film Coating Machine Coater for Lithium Ion Battery Lab Machine Product Description

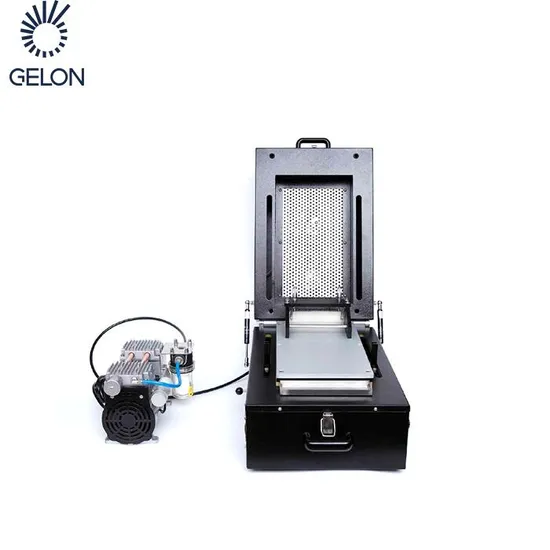

GN-VC-H automatic coater is designed to produce consistent thick film with heating cover. It has a unique driving system to produce smooth coating on all types of materials. The flat vacuum chuck is built in to hold substrate sheet on plate faster and easy, which is particularly useful when coating on thin substrate and make uniform tape casting. One 100 mm width micrometeradjustable applicator is included for immediate use. Heating cover with digital temperaturecontroller can dry film after coating up to 200°C within +/-1°C. This machine is being used for research for ceramic tap casting and Li-Ion battery electrode coating.
Main Features
1. Coating width can be customized from 100mm to 300mm,coating strength is from 250mm to 1000mm.2. Oilless vacuum pump is included.3. Traverse Speed:10-100mmc variable.4. Heating device can be inside cover,can be bottom or both with heating.
5. The size we have:GN-VC-10H; GN-VC-15H; GN-VC-20H; GN-VC-25H; GN-VC-30H
Detailed Photos
Product Parameters

Power 1KW Dry Temperature 100°C or to be request
Vacuum pump Contains Speed 10-100mm/sec variable
Coating Length 250mm --1000mm Max. Coating Width 300mm

Top quality Small Vacuum Hot Film Coating Machine Coater for Lithium Ion Battery Lab Machine
