3000bph-20000bph Automatic Liquid Bottle Water Bottling Filling Machine

Product Description

Product Description
Description for :3000bph-24000bph Automatic Plastic Bottle Water filling bottling 3in 1 machine
Automatic VACGF series drinking bottled pure water filling machine is focuses on washing, filling and capping to realize washing, filling and capping to shorten the contact time between the material and the outside world, improve the sanitary conditions, production capacity, economic benefits, mainly used for pure water, mineral water, mountain spring water filling in plastic bottles from size 250ml-2000ml. This series of filling machine design is excellent,adopts high quality main material of SUS manufacturing precision, simple operation, high degree of automation, is reliable and advanced pure water filling machine. The series filling machine with CE certification .
Application: PET bottles of pure drinking water, mineral water, mineral water, mountain spring water and other gas free products production.kinds of table water .
Features of 3in1 water filling machine bottling machine :3000bph-20000bph Automatic Liquid Bottle Water Bottling Filling Machine
1.Suspended card bottle mouth air transport into the bottle structure.
2.Adopt stainless steel bottle clip and stainless steel water divider.
3.No need to adjust the height of the equipment, only need to replace a small number of guard plate and guide plate, easy to change the bottle type.
4.Adopt normal pressure quick filling valve.
5.Adopt high torque magnetic capping head.
6.air conveyor fan with dust cover .
7.PLC programmable automation control technology
8.Touch screen control
9.Sperated electrical control carbine
10.The key electrical components are international famous brands. Product Parameters
Main parameters of 3000BPH-24000BPH automatic bottle water filling machine /water filling 3in1 machine /bottling line
VACGF-Series

model	VACGF3000	VACGF4000	VACGF6000	VACGF10000	VACGF15000	VACGF18000	VACGF20000
Washer/filler/capper heads	8-8-3	14-12-5	18-18-6	24-24-8	32-32-10	40-40-12	50-50-15
Filling liquid	Water without gas	Water without gas	Water without gas	Water without gas	Water without gas	Water without gas	Water without gas
Theory speed	2500-3300 B/H 500ml standard	3500-4300 B/H 500ml standard	5500-6800 B/H 500ml standard	9500-12000 B/H 500ml standard	13000-15000 B/H 500ml standard	16000-18000 B/H 500ml standard	20000-24000 B/H 500ml standard
Bottle height mm	150-340	150-340	150-340	150-340	150-340	150-340	150-340
Sparying pressure	2-3Kg	2-3kg	2-3kg	2-3kg	2-3kg	2-3kg	2-3kg
Bottle diameter mm	50-110	50-110	50-110	50-110	50-110	50-110	50-110
Compressed air MPA	0.3-0.7	0.3-0.7	0.3-0.7	0.3-0.7	0.3-0.7	0.3-0.7	0.3-0.7
Mian motor power KW	1.5	1.5	2.2	3	5.5	7.5	11
Dimension m	1.9*1.5*2.2	2.0*1.6*2.2	2.6*1.8*2.2	3.1*2.2*2.2	4.4*2.8*2.2	3.8*2.8*2.5	5.4*3.3*2.5
Weight KG approx	1500	1700	2700	3500	4500	5500	7000

Main configuration

main material	ss304
pump	cnp
plc	famous brand
touch screen	china taiwan brand
transducer	famous brand

Project in the world
part of our water filling machine in the world

Vitenam

Russia

India

Chile

Mongonlia

Republic of Belarus

South Africa

Ghana

Pakistan

tajikstan

China

Detailed Photos

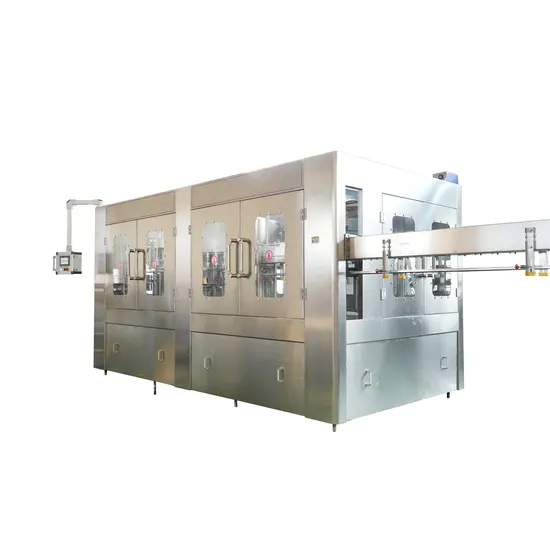

3000bph-20000bph Automatic Liquid Bottle Water Bottling Filling Machine
Certifications
CE Certification of glory machinery filling machine
BV certification of our factory
Our factory
https://world-port.made-in-china.com/viewVR?comId=IohnWkpGqAiz
Contact us
https://glorymachinery.en.made-in-china.com/contact-info.html
our machine in the world places:
vietnam. Russia,india ,Saudi Arabia ,Colombia ,Canada ,Paraguay,Lithuania,Belarus......
