Gantry Vertical Machining Center Vertical Machining Center CNC Vmc Structure CNC Machining Center with Siemens

Product Description

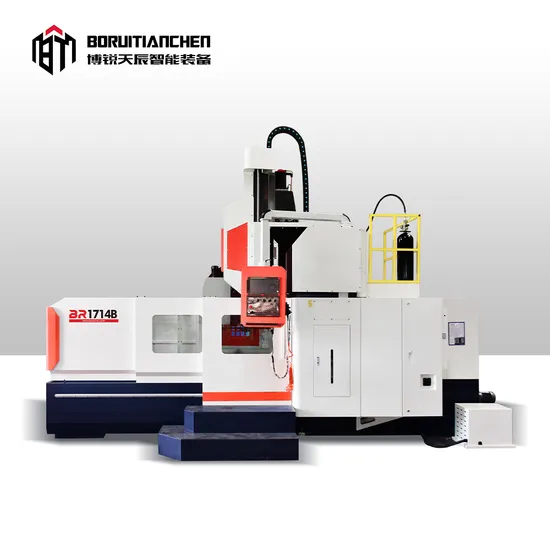

BR1714B 3 Axis Gantry Mill For Sale Large Gantry Cnc Machining Steel Sheet Supplier Of China Gantry Processing Center Product Description
The gantry machining center refers to the machining center in which the axis of the Z axis of the main shaft is perpendicular to the worktable. Especially suitable for machining large workpieces and workpieces with complex shapes. There are fixed beam type (beam fixed, worktable moving/rotating), moving beam type (beam moving up and down, worktable moving back and forth), moving column type (worktable fixed, gantry moving), crane type (worktable fixed, cross beam) Mobile) There are also multiple types of gantry machining centers in the above composite form. Gantry machining center adheres to the characteristics of traditional gantry machine tools with strong rigidity, symmetrical structure and high stability. Through finite element analysis, the structure of basic components is optimized, the dynamic performance of products is improved, and the perfect combination of high power, high torque, high efficiency and high precision machining is realized. . It is suitable for large and heavy processing fields such as ships, metallurgy, petrochemicals, mining machinery, electric energy, plastic machinery, construction machinery, and heavy industry machinery.

Type	BR1714B
Travel(X*Y*Z)(mm)	1700*1400*668
Table size(X*Y)(mm)	1700*1400
Maximum load(KG)	5000
Distance from spindle nose to table(mm)	225-895(Proboscinal spindle)
Spindle housing spindle mounting face distance to table surface	350
Inner width of gantry frame(mm)	1450
The height through which the gantry can pass(mm)	1000
Screw specification(X*Y*Z)(mm)	50*50*50
Roller guide specifications(X*Y*Z)(mm)	45*45*45-45
Number of sliders(X*Y*Z)(PCS)	X:6;Y:4;Z:8
Lead screw pitch(mm)	X/Y/Z*10 or 12
Number of T-slots(PCS)	7-M167
spindle(Specifications - Mounting diameter)	150/190
Spindle connection mode	direct connection/belt
Optical machine dimensions(L*W*H mm)	4980*2850*3200
Casting body weight(about)(T)	11.5
Sheet metal weight(about)(KG)	1500

our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
FAQ
1:How ca
n I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.

---
