All New Xiangliang Brand China Heavy Rice Mill Machine Milling

Product Description

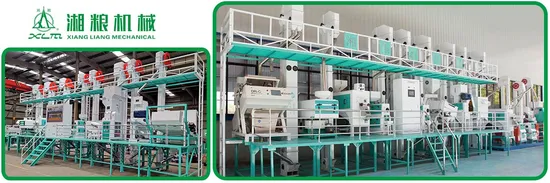

Automatic combined steel plantform structure rice mill plant which included cleaner,destoner,husker machine,paddy separator,two rice whitener ,rice polisher,rice grader ,colour sorter and packer machine ,this plant adapt monitor control systerm,operation easily ,with steelplatform save space,easy installation .CTNM40F Automatic Complete Set Rice Mill
Specification :
Adopted the new integrated steel frame assembly platform .The whole processing plant is exquisite and beautiful design,compact structure,small land occupation,large output,low energy consumption,quick installation ,convenient in operation and maintenance
The operation system adopts the visual control of monitor screen and has the functions of automatic fault alarm.
Separate cleaner and destoner ,good process effect,thorough stone removal ,high shelling rate,low broken rate,convenient operation and adjustment, and low noise .
Adopted The 15A rice machine with Xiangliang characteristics ,which has high precision of rice output ,less broken ,The rice output rate is 2% higher than any same model of domestic factories' products and the precision is higher more half grade

The whole plant are made of national standard normal materials ,with stable operation,long service life,low failure rate ,stable and reliable process performance
There are series models for selction,such as 40E,40F,40H etc,The produced white rice is very shinning ,it also can produce top grade rice.
Technical Parameter:

Model & Specification	CTNM40E	CTNM40F	CTNM40F	CTNM40H	CTNM40H
Vibration Cleaner	TQLZ100×150	TQLZ100×150	TQLZ100×150	TQLZ100×150	TQLZ100×150
Gravity Desonter	TQSX85	TQSX85	TQSX85	TQSX85	TQSX85
Husker	MLGT25A	MLGT25A	MLGT25A	MLGT25A	MLGT25A
Paddy Separator	MGCZ100×8	MGCZ100×8	MGCZ100×8	MGCZ100×8	MGCZ100×8
Rice Whitener	NF15A	NF15A	NF15A	NF15A	NF15A
Rice Whitener		XL18	XL18	XL18	XL18
Rice Grader	MMJP80×3	MMJP80×3	MMJP80×3(2 sets)	MMJP80×3(2 sets)	MMJP80×3(2 sets)
Water Polisher		MP14A	MP14A	MP14A(2 sets)	MP14A(2 sets)
Color Sorter	6SXM-126M	6SXM-126M	6SXM-126M	6SXM-126M	6SXM-126M(2 sets)
Single Elevator	TDTG20/13(3sets) TDTG20/9(4 sets)	TDTG20/13(3 sets) TDTG20/9(5 sets)	TDTG20/13(3 sets) TDTG20/9(6 sets)	TDTG20/13(3 sets) TDTG20/9(7 sets)	TDTG20/13(3 sets) TDTG20/9(7 sets)
Double Elevator	TDTG20/13-9 TDTG20/9-9	TDTG20/13-9 TDTG20/9-9	TDTG20/13-9 TDTG20/9-9	TDTG20/13-9 TDTG20/9-9	TDTG20/13-9 TDTG20/9-9(2 sets)
(kw) Power(kw)	97.35	135.05	137.25	174.95	146.65
(mm) External Dimension(mm)	14600×3800×5500	15600×3800×5500	17100×3800×5500	18600×3800×5500	20400×3800×5500

---
