CNC Cylinder Cylindrical Centerless Grinding Machine Tools

Product Description

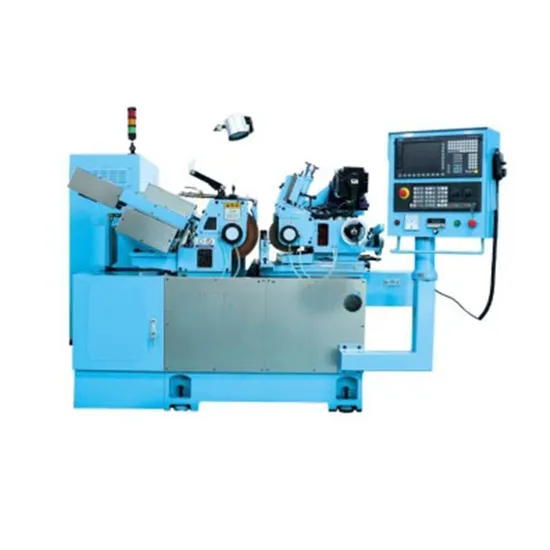

High precision centerless grinder
1, Machine body
The body and components are cast in one go using high-grade cast iron FC30. They undergo manual normalization heat treatment, and then undergo natural aging treatment for more than six months. The components are processed using world-class equipment such as YASDA, MITSUI SEIKI, TOSHIBA, and ELB. The precision dimensions can be Reaching the micron level to ensure high precision of equipment basic components.
2. Spindle system
The spindle is made of SNCM-21H alloy steel. After quenching and tempering, carburizing heat treatment and then computer-controlled cryogenic treatment, its surface hardness reaches above HRC-62°, and the effective hardened layer on one side reaches above 1.5mm. The FX-12S spindle adopts dynamic pressure oil film spindle.
3, Adjusting wheel transmission system
The adjusting wheel spindle drive motor adopts Taiwan Delta Servo Motor (YAS KAWA) Servo Motor, FX-12S speed control 0~320rpm CNC, adjusted to the optimal linear speed, the same linear speed can be maintained when the outer diameter of the adjusting wheel changes. It ensures the accuracy and smoothness of the processed workpiece and grinds the best products.
The servo motor is cleverly designed and installed on the adjusting wheel box and directly driven by a synchronous belt. It can tilt the angle at the same time as the adjusting wheel during grinding, ensuring that the two pulleys are always parallel, overcoming the inertia loss and chain caused by the multi-section chain transmission of the old centerless grinder. Angle brings many adverse effects, and avoids frequent replacement of chains and zipper springs

Items	Unit	Model: FFX-12CNC-3
Machining diameter range	mm	0.5-40
Grinding wheel size (OD x W x ID)	mm	Φ305*150*Φ120
Adjust wheel size (OD x W x ID)	mm	Φ205*150*Φ90
Grinding wheel speed	RPM	1950
Maxi linear speed of grinding wheel	m/s	35
Feed speed	mm/min	8000
Adjust wheel speed	RPM	0-350(stepless )
Grinding wheel drive motor	KW	5.5
Adjust wheel drive motor	KW	2.0
Auto dressing drive motor	KW	1.5
Oil pump drive moto	KW	0.75
Cooling pump drive motor	KW	0.125
Dressing feed accurracy of adjust wheel	mm	0.001
Fine adjust handwheel of adjust wheel	mm	0.1/ 0.001/
Mini accuracy of servo feed	mm	0.001
Adjust wheel slope angle		+6°~-5°
Adjust wheel rotation angle		±5°
Machine dismension	mm	1800×1400×1450
Package size	mm	2350×1650×1770
Machine net weight	KG	2200
Packed weight	KG	2400

FAQ Q 1. What is the delivery time ?
Some models are in stock, could ship in 10 days. Customized orders would be ready 30 days . Q 2. How to order ?
We would check your grinding work to give you solution, then we make contract, arrange payment. we start to produce Q 3. What is shipping ?
Air, ship, trucks are available for us. Q 4. How about after-selling service ?
We have professional team to support our customers. Normally we use videos to check problems, also our international business manager would travel to some countries , could make video calling at factory to check.

---
