Enamel Surface Aluminum Honeycomb Panel (AHP)

Product Description

Decorative Customized Aluminum Honeycomb panel
We RENOXBELL Aluminum Industrial Co.,Ltd are a leading manufacturer of aluminum panel,composite panel,honeycomb panel and aluminum ceilings in Guangzhou,China.These panels are widely used for the construction and decoration of interior and exteriors walls and ceilings.We've been engaging in this industry since 1997

RENOXBELL factories are equipped with famous brand CNC facilities like ASIA, LFK, SPS, MILLER, SOYER, RANSBURG, Eclipse, KONICA MINOLTA, etc. The fabrication lines, coating lines and baking stove are designed and specified according to ASTM regulations to make sure of meeting international standard quality.

PRODUCE FIRST-CLASS QUALITY BY TECHNOLOGY is RENOXBELL's pursuit of quality and business principle. Whenever the past, now and the future, RENOXBELL always sticks to building its brand by employing excellent personnels, producing quality products and providing considerate services. Under the concept of focus on quality, R&D and services, RENOXBELL is growing fast and steadily on the domestic market and international market, we're on the way of becoming a leading and first-class manufacturer of paneling systems for curtain walls on the world.
Our Certification:
ISO approved factory
Ppg approved coatings
SGS approved factory
Chinese famous brand of construction and decoration materials
AAA credit rating certified company
Description:
1. Aluminum honeycomb panel is new building and decoration material which was originally used in aviation. It is made from high quality Aluminum alloy with thickness of 0.7-1.5mm. The surface finish is Fluorocarbon (PVDF) coating or color Polyester (PE ) coating. The core is hexagon Aluminum honeycomb with thickness of sides 0.04-0.06mm and length of sides 5-6mm. With honeycomb sandwich structure, the Aluminum honeycomb panel is very good strength, smooth flatness and light weight.
2.Raw materials of Aluminum Honeycomb Panel:
1) PVDF (fluorocarbon) coating;
2) High quality honeycomb core;
3) Macromolecule sticking film;
4) Aluminum skins;
3.Color: all colors, Chameleon colors, wood-like colors, marble-like colors.
4.Package: bulk or Wooden crate
5.Size: 1220x2440mm or custom sizes
6.Delivery date: Within 15 days after receiving the 30% down payment;
7.Payment: T/T with 30% deposit of total amount and 70% balance by T/T before shipping, L/C at sight

Features:
1) Excellent weather resistance and fire resistance;
2) Excellent durability and good torsion strength;
3) Lightweight, rigid and superior surface flatness;
4) Good impact-resistance and ultra strong peeling strength;
5) Good workability, simple installation, easy processing and maintenance;
6) Recyclable.
Applications:

1	New building cladding or old building interior and exterior decorations
2	Curtain wall and façade systems.
3	Roof, ceiling and partitions
4	Board of boats, vessels and automobiles
5	Furniture and tables

Competitive Advantage:
RENOXBELL is a professional manufacturer, we have excellent design team and fabrication workers as well as advanced CNC facilities, we can produce the Aluminum panels according to customer's requirements for dimensions, specifications, shapes, structures, colors and competitive budgets. We can also send engineer to the site to measure installation specifications and work out shop drawings to help the customers with smooth installation.

All Aluminum panels are prefabricated according to customer's designs and drawings, you only need to make a frame and prepare some bolts for installation, finally use some sealants to finish the gaps among panels. It is an easy job for envelope and decoration of buildings with RENOXBELL brand Aluminum panels!

Commodity	Aluminum honeycomb panel,Aluminum alloy A3003, A5052 high quality aluminum plate
Surface coating	PVDF, Polyester
Color	All colors, Enamel grain, Marble grain, Wood grain, Wire drawing
Total thickness	4mm, 6mm, 8mm, 10mm, 15mm, 20mm, 25mm, 50mm
Top aluminum skin	0.5mm, 0.7mm, 0.8mm, 1.0mm,1.5mm
Bottom aluminum skin	0.5mm, 0.7mm, 0.8mm.1.0mm
Warranty	More than 15 years

Application:

1	New building cladding or old building interior and exterior decorations
2	Curtain wall and façade systems.
3	Roof, ceiling and partitions
4	Board of boats, vessels and automobiles
5	Furniture and tables

Remark:Special Dimension is available as per request!

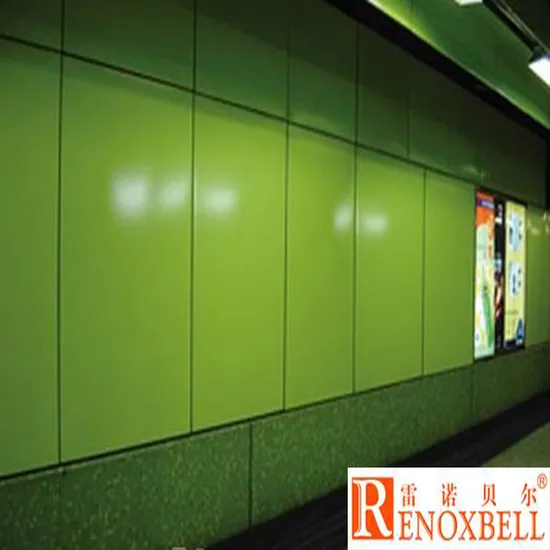

Show case:
Thank you for your time & welcome you to contact us for more informations!

---
