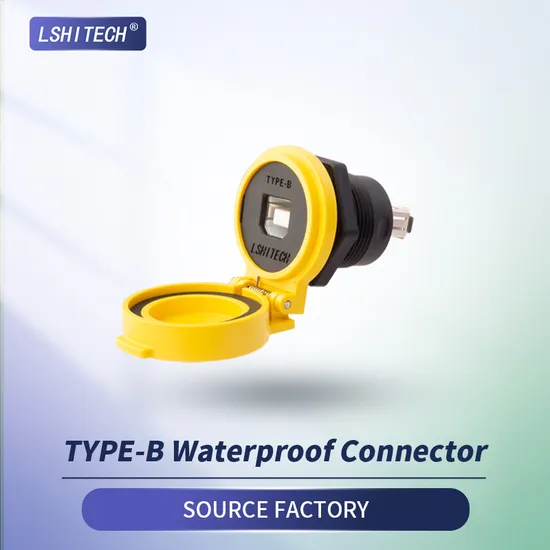

Lshitech Factory Direct Sales Type-B Charging Data Transmission Panel Cable Adapter Connector

Product Description

LSHITECH Factory Direct Sales Type-B Wall Panel Mounted Socket Wire Connector Product Description A connector is a component used to link electronic devices or systems, crucial for transmitting power, data, or signals. They find wide applications in:
Electronics manufacturing: Internal connections in devices like computers, smartphones, TVs, and cameras.
Communications: Linking cables, fibers, and devices for signal transmission and data exchange.
Automotive: Connecting vehicle components like engine control units, sensors, and lighting systems.
Aerospace: Essential for connecting electronic and mechanical systems in aircraft and spacecraft.
Medical equipment: Facilitating connections for sensors, monitors, and diagnostic tools.
Industrial automation: Linking sensors, actuators, and controllers for data acquisition and device control.
Connectors vary in type and design based on specific needs, such as plug, socket, solder, or crimp connectors, often featuring waterproofing, dustproofing, and shock resistance for diverse environments.
Product Parameters

Name	Type B Industrial Power Cable Connector Plug
Type	With Cap
Port type	TYPE-B B to A thru female connector/TYPE-B solder female connector (2mm pin spacing)/TYPE-B straight through female connector
Catalog NO.:	A199/A200/A201
Rated Voltage	30V DC
Rated Current	1.5A
Endurance Voltage	500V AC
Contact Resistance	30mΩ
Touch Point	5
Transmission Rate	480Mbps
Mating Cycles	≥1500 times
Panel Thickness	≤3mm (aligning plug)
Panel Thickness	≤4.5mm (screwthread)
Cable Type	24AWG+28AWG
Cable Diameter	4.5mm
Torque Values	Suggest to keep 2 N·M
Housing Materials	Plastic material
Sheiding Part	Copper
Sealing Gasket	Silicone
Operating Temperature	-40°C~80°C
IP Rating	IP65/IP67/IP68
Flammability	UL 94-V0
Approved Certification	RoHS CE FCC

Detailed Photos
Packing & Delivery Packing details 1. Sample packing: Firstly, the product will be packed into the bag, then wrapped with bubble wrap, and finally shipped in
the courier bag. 2. Standard Packaging: Firstly, put each product into a separate bag, then put all the products into a box, seal the box and
wrap the box with bubble wrap, and finally ship the products.
Delivery details 1. The lead time for in stock products is 1~3 days, 7~15 days for customized products. 2. Shipping way: the goods can be shipping by client's international express account like DHL,TNT,UPS, Fedex, or shipping
by our forwarder. Payment terms We accept PayPal, T/T and Western Union for payment.
Company Profile Shenzhen Lshitech Electronic Technology Co., Ltd. (LSHITECH) was founded in 2014, is committed to the
research and development, production and sales of high-quality aviation waterproof connector, adhering to the core business
philosophy of "exploration leads to innovation", to create a high-quality brand of aviation plugs. LSHITECH currently has
a number of patented technology, product certification, and passed the IS09001 quality management system certification,
the market is mainly distributed in China, the United States, Europe, some countries and regions in Asia. Shenzhen Lshitech Electronic Technology Co., Ltd. Has been introduced to the market of the products are mainly
USB plugs, RJ45 plugs, HDMI plugs, TYPE-B plugs, TYPE-C plugs, etc., covering the data, communication, high-definition
signals and other types of media transmission, the main applications are In the industrial and field, they are widely used in
base station communication, robotics, CNC machine tools, new energy vehicles, medical equipment, railroad electrical systems
and other industries. Our Certifications Shenzhen Lshitech Electronic Technology Co., Ltd. has achieved ISO19001:2015 quality management system certifications .
Its tandardizes our factory scientific manageent comprehensively;All products be approved new utility patent certificate,
appearance certificate, and CE,ROHS,FCC certificate.
FAQ Q1: Are you a manufacturer or trading company? A1: We are professional Manufacturer of connector, Factory located in Shenzhen City. we are a experienced manufacturer
with our own molds and production lines. Q2: Will you do quality inspection? A2: All of our connectors after 4 times strict quality testing , to ensure the goods 100% conformity before delivery. Q3: Can I get some samples? A3: Yes, sample order is available for quality check and market test. Q4: After-sales service? A4: All the inquiry will be response within 24 hours, the commucation will be effective. Q5: Are you in stock?What about your MOQ? A5: Yes,We can service you any time! We DONT HAVE MOQ, 1pcs is OK. Catalog NO.: A199
Catalog NO.: A200
Catalog NO.: A201

---
