US$1,098.00
100-199 pieces
Basic Info.
Vehicle Industrial Switch
on-Board Industrial Switch
M12 Industrial Ethernet Switch
Car Networking Switches
After-Sales Service
3 Years
Manufacturer
Shenzhen Inmax
Working Temperature
-40 to +75°c
Function
Lacp, Poe, Qos, Snmp, Vlan Support
Product Name
Railway Ethernet Switch
Product Description
Product DescriptionMeet the EN50155 railway industry standard requirements. Designed for railway transportation applications.
With 16×10/100/1000M M12 BaseT ports.and up to 16×PoE ports
With 16 X M12 PoE ports, 15.4W/30W output power of each PoE port.
Automatic recognition of power consumption and power supply mode of network equipment.
Optional function: bypass function(1- 2 port) for power-off protection.
Redundant dual 48VDC power inputs. Built-in overcurrent protection, Reverse connection protection.
Support one-way relay alarm function.
-40 to 85 operating temperature range (WT models).
No fan, low consumption, industrial design standard, industrial grade electronic components,environmental protection & lead-free production.
High strength metal housing, support wall mounting.
IP Rating up to IP40 (Optional IP67 waterproof housing).
Without packet loss in 72 hours full load flow test.

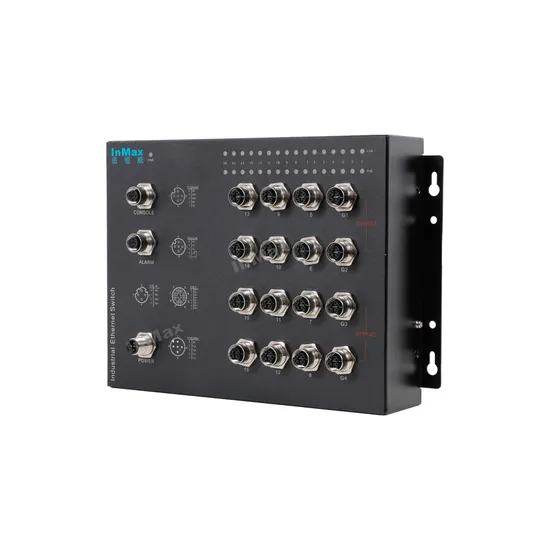

IntroductionThe M716B series M12 managed railway PoE Ethernet switches are designed for industrial applications in harsh environments. The M12 connectors ensure tight, robust connections, and guarantee reliable operation, even for applications that are subject to high vibration and shock.
The M716B Ethernet switches provide 16 fast Ethernet M12 ports, support IEEE 802.3/802.3u/802/3x standard, 10/100/1000M speed adaptive, full duplex / half duplex communication and MDI / MDI-X automatic detection, to provide you with an economical industrial Ethernet solutions.
No fan, low power consumption design, working function more steady, and without packet loss in 72 hours full load flow test.
It accords with FCC, CE, RoHS standard and industrial design requirement. It can work in -40 to 75 working temperature and electromagnetic complex harsh working environment steadily, widely used in car PIS, CCTV, car security monitoring, smart factory, and provide reliable and quick solution for customers' Ethernet device connection.
Product Name | M12 16 Port 1000M Railway PoE Industrial Ethernet Switch |
M12 Ports | M12-8Pin X-Coded 1000M Connector |
M12 Power Port | M12-5Pin Power port connector |
Input Voltage | 48VDC |
IP Rating | IP40 |
Dimension | 271 × 176 × 45 mm |
Weight | 2kg |
Operating Temperature | -40 to 85 |
Products Show
Our Service High quality High quality High qualityODM DB9 railway switch board ODM M12 bus switch board 110VDC railway gigabit switch board
M12 A-code (8-Pin male) M12 X-code (8-pin male) M12 D-code (4-pin male)10/100/1000 BASE-T RJ45 Interface, 10/100/1000 BASE-T RJ45 Interface, 10/100 BASE-T RJ45 Interface,
customized- length customized- length customized- length
M12 A-code M12 X-code M23 (8-Pin male)Connector (8-pin male)Connector (6-pin Female)ConnectorM12 A-code (8-pin male) Quick M12 X-code (8-pin male) Quick M23(6-pin male) Quick
Connector Connector Connector
Our CompanyOur officeOur Workshop Packing & DeliveryPacking Details: 1pcs/box, 12 pcs/carton, size:45x35x32cm/carton , G.W:18kg/carton
Delivery Details : 5-7 days for samples if we have stock, 4-6 weeks for mass order
Our Certifications InMax Fair Photo Shenzhen InMax Technologies Co., Ltd. has participated in (CPSE 2017) the 16th China Public Security Expo successfully.In 2017, the global focus on the 16th China Public Security Expo (CPSE), which is held in Shenzhen Exhibition Center. ShenzhenShenzhen InMax Technologies Co., Ltd. has launched a series of professional industrial Ethernet switches, to offer service to the safety city, smart city, intelligent transportation, and networking solutions. InMax participated in the 6th Shenzhen International Intelligent Transportation Exhibition (ITS 2017), got a complete success!InMax participated in this ITS fair, mainly to show the latest released rail vehicle industry Ethernet switches which meet the standard EN50155, and provided professional network communication solutions.InMax network communication equipment are being widely used in urban road construction and vehicle communication data transmission in major cities. FAQQ1: Are you a factory or trading company.
A1: We are professional manufacturer, and our main products are industrial switches, which are all produced by ourselves in Shenzhen, China.
Q2: Can I get sample?
A2: Yes, we can provide sample based on your need, pls feel free to contact us for more details.
Q3: Do you supply OEM/ODM service?
A3: Yes, we can provide not only OEM service but also ODM service. We are professional on R&D, thus we can provide customized products if there is certain order quantity.
Q4: What is your MOQ?
A4: We don't have MOQ limited. 1 piece is ok.
Q5: How long is your delivery time?
A5: 3-5 days if we have stock for your order, if not, it might be 3-4 weeks. Of course, it depends on the quantity.
If you are interested in our products, pls do not hesitate to send us inquiry.
Contact us, and let's cooperate happily, too !
>>
