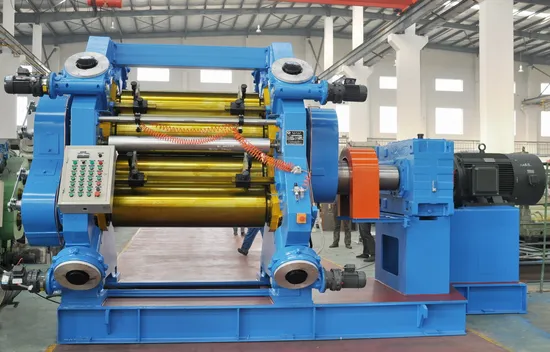

Four-Roll Rubber Sheet Calender Machine / Rubber Sheet Calendering Machine

Product Description

Four-roll Rubber Sheet Calender Machine / Rubber Sheet Calendering Machine Product Description
Application:
Rubber calendering machine is mainly used for: Textile (cloth, canvas, etc.) of glue and eraser; steel cord adhesive; rubber compression and pressure type; cord attached to the fit of the isolation film and multilayer film. Product Parameters

Model	XY-4I(Γ) 230*630	XY-4I(Γ) 252*720	XY-4I(Γ) 300*900	XY-4I(Γ/S) 360*1120
Roll diameter(mm)	230	252	300	360
Working length of rolls(mm)	630	720	900	1120
linear speed of middle roll(m/min)	2.1- 21	1.59-15.9	1.8-18	2-20.1
Speed ratio	1:1:1:1	1:1:1:1	1:1:1:1	0.733:1:1:0.733
Adjusting nip range (mm)	0-10	10	10	0-10
Min. calendaring product thickness(mm)	0.2	0.2	0.2	0.2
Calendaring product width(mm)	500	580	700	920
Driving motor power(kw)	15	22	45	55
Overall size(L*W*H) mm	3800*930*1890	2950*990*1645	4400*1650*2200	3330*1940*2350
weight(ton)	4.8	5	12	16

XY-4I(Γ) 400*1200	XY-4I(Γ) 450*1400	XY-4I(Γ/S) 550*1500	XY-4I(Γ/S) 610*1730	XY-4I(Γ/S) 700*1850	XY-4I(Γ/S) 710*2130
400	450	550	610	700	710
1200	1400	1500	1730	1850	2130
3-36.3	2.5-25	3-30	8-50	4-40	3-30
1:1.383:1.383:1	1:1.5:1.5:1	1:1.5:1.5:1	1:1.4:1.4:1 1:1.4:1.4:1.4	0.5-1 adjustable	1:1.5:1.5:1
0-10	0-10	0-10	0-20	0-30	0-20
0.2	0.2	0.2	0.15	0.2	0.15
1000	1220	1300	1500	1600	1900
75	110	160	185	90kw * 2 110kw*2	220
6400*1620*2490	6500*1970*2740	7550*2400*3400	6580*2460*2920	9950*3600*4870	7010*4150*3730
20	23	45	50	110	100

Detailed Photos
