HDPE Plastic Bottle Making Machine Injection Bottle Blow Molding Machine

Product Description

Product Description

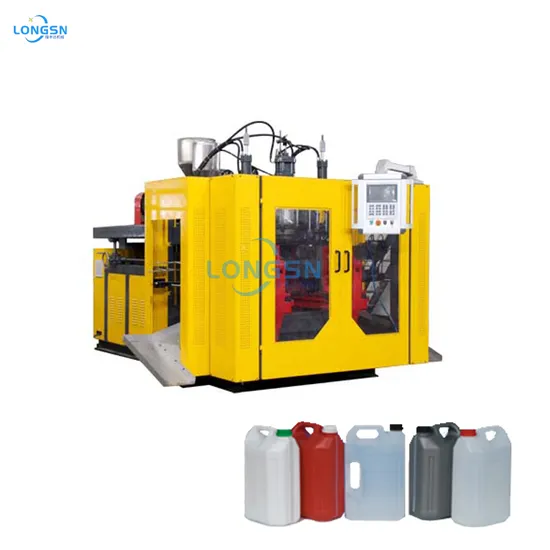

HDPE Plastic Bottle Making Machine Injection bottle blow molding machine
The LSN series extrusion blow molding machine is used to produce all kinds of the hollow plastic containers for foods, toys, beverages, medicines, chemical products, pesticides, detergents etc with material of PE,PP,PVC from 5ml to 20L,such as water bottles,milk bottles,medical bottles,oil bottles,plastic balls,cosmetic bottles,lubricant bottles,plastic containers. The machines are low investment, high efficiency, quick and safe operation, easy for trouble shooting, maintenance and other benefit.
Detailed Photos
Product Parameters

Parameters	Units	LSN70S	LSN80D
Material		PE,PP,PV,PVC,PA	PE,PP,PV,PVC,PA
Number of die head	set	1,2,3,4	1,2,3,4
Max Container capacity		10L	10L
Screw diameter	mm	70	80
Screw L/D ratio	-	24	24
(50HZ)Screw rpm(50hz)	r/min	10-70	10-60
(PE)Extrusion capacity per hour	kg/h	70	110
Number of heaters	-	3	3
Opening stoke	mm	600	600
Platen size	mm	450*520	450*520
Clamping stoke	mm	200-650	200-650
Clamping force	KN	110	110
Dry cycle time	s	9	14
Cooling water pressure	Mpa	0.2-0.3	0.2-0.3
Cooling water consumption	L/min	60	60
Air pressure	Mpa	0.8	0.8
Compressed air comsumption	m3/min	0.8	0.8
Machine dimension(L*W*H)	mm	3800*2100*2950	4200*3100*3150
Machine net weight	T	7	10
Extruder heating power	kw	14.2	16
Power of die heating zone	kw	4	4
Hydraulic motor	kw	11	11
Total power	kw	55.2	65

Certifications
Packaging & Shipping
Company Profile
Zhangjiagang Longsn Machine Co., Ltd. is a professional manufacturer which integrating development, research, design, manufacturing, technical service and marketing to manufacture complete sets of Packaging machines .

Zhangjiagang Longsn Machine Co., Ltd. factory covers an area of 8,000 square meters, has more than 10 professional design and development teams, and more than 30 professional production and installation commissioning engineers. We adhere to the policy of "market-oriented, quality-oriented, service-guaranteed and reputation-based". Longsn Machines follows the ISO 9001:2000 international quality management system, establishes and improves the quality assurance system to ensure the quality and performance of the company's products.
FAQ
Q1:Are you a trading company or a manufacturer ?A1:We are the manufacturer ,we produce machines ourselves,we can assure the quality.Q2:What is your advantage?A2:Competitive price , Excellent technical support ,24h online serviceQ3:When can I get my machines after I paid?A3:We will arrange delivery on time,act according to the contract.Q4:What's your guarantee or the warranty of the quality if we buy your machines?A4:We offer you high quality machines with 2 years guarantee . we will give u spare part free in 2 yearsQ5:How can I install my machine when it arrives?A5:We will provide 24 hours online service,if needed we will send our engineer to your side as soon as you get all your machines ready,for testing and teaching your technicians how to run the machines.
