US$35,000.00-50,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Certification
CE, RoHS, ISO 9001
X/Y/Z Axis Travel
1800*900*800
Main Motor Power
15/18.5kw
Transport Package
Wood Case
Specification
CE ISO9001 Rohs
Production Capacity
10 PCS/Month
Packaging & Delivery
Package Size
6000.00cm * 2280.00cm * 2550.00cm
Package Gross Weight
14000.000kg
Product Description
Product Description

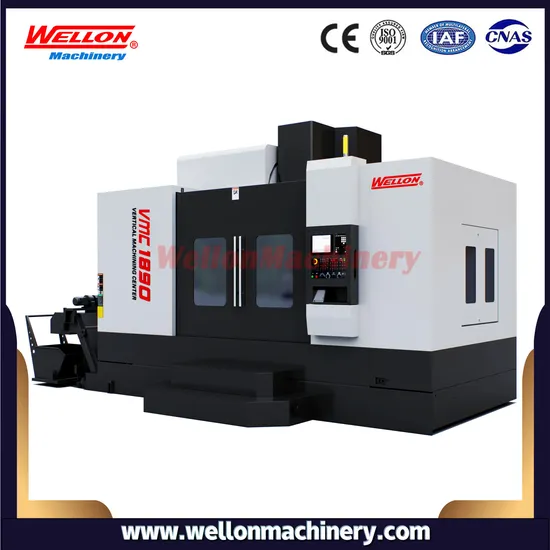

VMC1890 CNC Vertical Machining Center CNC Machine Tool Detailed Photos
Product Parameters
Main configuration & accessories:
1. Resin sand casting, Meehanite HT-300;
3. X, Y, Z rails adopt stainless steel telescopic cover;
4. Roller type linear guideway from Taiwan
5. Ball lead screw from Taiwan
6. Standard with belt driven spindle, optional for direct driven spindle;
7. Taiwan pneumatic cylinder;
8. Taiwan ATC, umbrella type and disc type are available;
9. Import bearings for leadsrews;
10. Import coupling;
11. Headstock Nitrogen balance system as option;
12. Full enclosed cover;
13. Rigid tapping;
14. Spindle center ring blast;
15. Work lamp;
16. Pilot lamp;
17. USB and Internet interface;
18. Manual pulse generator (MPG);
19. Centralized automatic lubrication system.
20. Cooling system.
21. Heat exchanger for electrical cabinet ;
22. Leveling blocks & bolts;
23. Toolbox and tools;
24. CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc.
Technical Parameter:
Item | Unit | VMC1890 |
X axis travel | mm | 1800 |
Y axis travel | mm | 900 |
Z axis travel | mm | 800 |
Spindle nose to worktable | mm | 150-950 |
Spindle center to column | mm | 965 |
Leadscrew diameter | mm | Φ55 |
Linear guideway width | mm | 55/55/55 |
Worktable Length | mm | 2000 |
Worktable width | mm | 900 |
Max loading capacity | kg | 2000 |
T-slots(NO./width/pitch) | | 7-22*120 |
Spindle speed | rpm | 8000 |
Main motor power | kw | 15/18.5 |
Spindle taper | | BT40-150 |
Fast moving speed (X/Y/Z) | m/min | 30/30/24 |
Cutting speed | mm/min | 1-10000 |
Feed motor torque | Nm | 37/37/37 |
Feed motor power | kw | 4.5/4.5/4.5 |
Capacity | pcs | Arm 24 |
Max tool diameter | mm | 120 |
Max tool weight | kg | 8 |
Max tool length | mm | 300 |
Positioning accuracy | mm | 0.008 |
Repeat accuracy | mm | 0.005 |
Length | mm | 4300 |
Width | mm | 3100 |
Height | mm | 3500 |
Weight | kg | 14000 |
Standard accessories:
Mitsubishi M80 control system
Taiwan Spindle: 8000rpm
X/Y/Z axes: Mitsubishi servo drive motor
Main motor:Mitsubishi spindle motor
24 tools Disc type
USB for information transfer
Rough cutting of thread
Full closed cover
Automatic lubrication
Coolant system
Work lamp
Tri-color indication lamp
Air gun+Water gun
Nitrogen balance cylinder
Air conditioner in cabinet
3-Axis linear guideway from Taiwan Hiwin
Ball leadscrew from taiwan Hiwin
Optional accessories:
Automatic chip conveyor & chip bucket (Chain type)
Automatic chip conveyor & chip bucket (Screw type)
Spindle direct driven, speed 12000 rpm
Spindle oil cooling
Spindle center water spray
4th Axis or 5th Axis
Company information
Packaging & Shipping
FAQ
1: What's your main products of your company?
A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center,
Lathe Machines,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on.
2:What kind of controlsdo you use on machines?
A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5 : Do we receive any updates while machine is in the manufacturing process?
A : Of course. The progress of the machine will be updated regularly and sent to you.
>>
