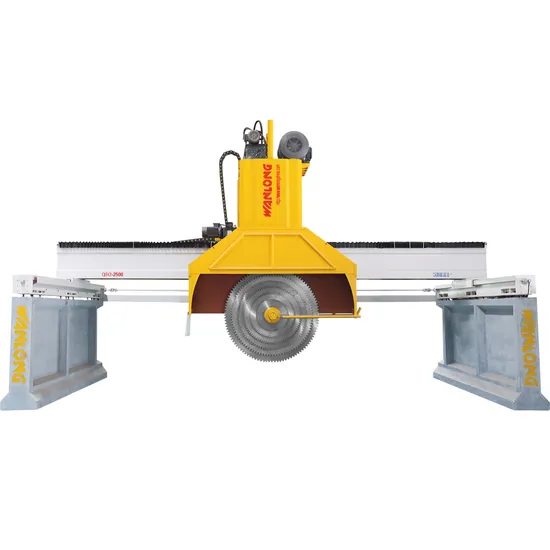

Wanlong Multi-Blades Stone Cut Saw Machine for Granite Block

US$29,600.00-35,000.00 1 set (MOQ)

Basic Info.

Model NO.
QSQ-2200
Application
Machinery & Hardware, Construction, Mineral Industry, Stone Industry
Source Voltage
380V
Automation
Automatic
Cutting Ability
High Speed
Control
Automatic
Certification
API, CCC, SONCAP, GOST, ISO, CE, SGS
Main Motor Brand
Siemens
PLC Brand
Panasonic
Contactor
FUJI
Material
Strong Cast Iron
Working Table with Encoder
Optional
Double Layer Working Table
Optional
Max. Cutting Size
3800(3300)*2100*1100
Max Number of Blade
9
Water Consumption
30m3/H
Approximate Weight
12000(13000)Kgs
Transport Package
Container
Specification
7500*4000*5500
Trademark
wanlong
Origin
Quanzhou, China
HS Code
8466910000
Production Capacity
100sets/Month

Product Description

wanlong stone cut saw for granite block with matched multi-blades
Product Description:
---ourblock cutting machine combines different diameters of blades working simultaneously as multiblade cutting.
---our block cutting machine has screw-rod lifting system and hydraulic lifting system for choice.
---The crossbeam moves for feeding so that the table for block is not necessary ( which does not supply along with machine, only available upon request ).
---Heavy duty strcuture, logical control system, easy operation together with " Wanlong" blade give high production and also make the finish slab with flat surface, no tapper.
---The block cutting machine cutteris also flexible in modification for Single blade cutting.
---More details of this block cutting machine
Technology parameter:
QSQ-2200 QSQ-2500 QSQ-3000
Max.diameter of blade mm 2200 2500 3000
Max.No. of blades pc 8 5 1
Recommended Blade Combination mm 2200 2000 1800 1600 1400 1200 1000 800 2500 2000 1600 1200 800
Recommend saw blade thickness mm 6.5 32 8.0
Main motor power KW 45 45 37
Max.Cutting size(L x W x H) mm 3200*1800*950 3000*1800*1100 2500*1800*1350
Overall dimensions (L x W x H) mm 7300*3800*5500 7300*3800*5500 7300*3800*6100
Water consumption m3/h 6 6 6
Approximate weight Kg 10000 11000 12000

wanlong stone cut saw for granite block with matched multi-blades
Fully controlled by the computer, this machine can work by program automatically
High efficiency for cutting large block, stab...
Fully controlled by the computer, this machine can work by program automatically
High efficiency for cutting large block, stable and reliable
Max. Dia. Of blade: 2500mm
Max. Cutting length: 3200mm
Max. Cutting width: 2500mm
Max. Cutting height: 1100mm
Max. No. Of blade:9
Main motor power: 37kw,45kw,5kw
Overall dimension (LxWxH): 7300X3800X5700mm
Total Weight: 11000kg
Delivery: 35-45days as per produciton schedule and quanity.
if your order is in our stock, we can effect shipment once received your payment

PACKAGE:
Suitable for seaworthy container shipment

WARRANTY:
12 MONTHS

SHIPMENT WAY:
-by sea: can be Less than Container Load and Full Container Load; freight is according to the shiping company quoation to your seaport.
-you can consult us when you make inquiry.
