HDPE / LDPE / PP Water Cooling Plastic Recycling Machine

US$10,000.00-15,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
XY-B90
Plastic Type
PE PP PVC Pet
Screw
Single-Screw
Automation
Automation
Computerized
Computerized
Voltage
380V
Screen Changer
Hydraulic
Screw Diameter
90mm
Screw L/D
20:1
Screw Speed
10-100r/Min
Main Motor
22kw
Max Output
50kg/H
Weight
2600kg
Dimension
4.0X1.5X1.8m
Transport Package
Wrap Film or Wooden Case
Trademark
YOUJIA
Origin
China
HS Code
84772010
Production Capacity
50 Set/Year

Product Description

Product Description

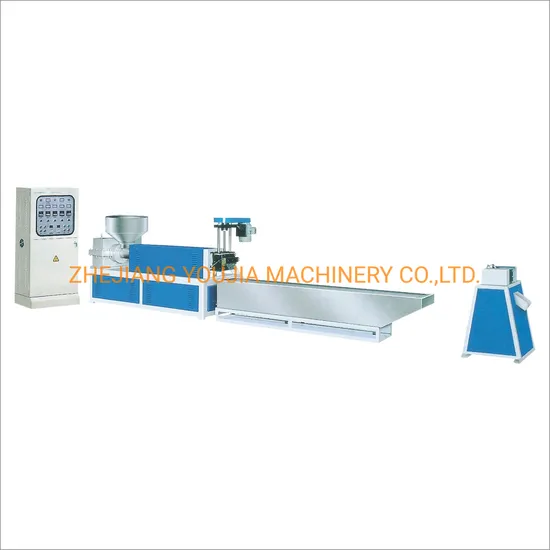

HDPE / LDPE / PP Water cooling plastic recycling machine
This machine is suitable for regeneration and granulation of waste plastics, as HDPE, LDPE, and PP, etc. It is equipped with quick motor-operated filter-screen-replacing unit and automatic temperature control. The granulating crusher uses adjustable speed motor, pelleting with an extruding machine at the same discharging speed synchronistic ally. The unit is easy to operate, with a high output, steady performance, and favorable economic benefit.
Product Parameters
Model XY-B90 XY-B100 XY-B110 XY-B120
Screw diameter 90 100 110 120
Screw L/D 20:1 20:1 20:1 20:1
Screw speed 10-100r/min 10-100r/min 10-100r/min 10-100r/min
Main motor 22kw 30kw 37kw 45kw
Max output 50kg/h 80kg/h 100kg/h 120kg/h
Overall 2.6T 2.8T 3.0T 3.2T
Overall Dimension 4.0*1.5*1.8m 4.0*1.5*1.8m 4.0*1.5*1.8m 4.0*1.5*1.8m

Certifications
Packaging & Shipping
Company Profile
FAQ
1. Are you factory or trading company ?We are factory specialized in plastic machine for many years, also we have the right to export goods by ourselves.2. Where is your factory? How can i visit your company?Our factory is located in Ruian city,zhejiang province, China. Its about 40 minutes from shanghai by plane(4 hours by train). We will pick you up on airport or station.Welcome to visit our factory3. How long is your delivery time?Normally our delivery time is 15-30 days. If you need it ugently, we can make it about7 days4. What are your terms of payment?We accept 30% deposit, balance before shipment. And Irrevocable L/C at sight. 5. What package do you use for the product?Be Coated with anti-corrosion oil, and covered with plastic film, wooden box package need extra cost. 6. Does your factory provide installation service?Our engineer can go to customer factory to installation. Customer should prepare materials used to testing the machine in advance and should be responsible for the cost of supplier's technician, including round air tickets, visa cost, accommodation and salary 100USD/Day per person since the day start out until the day arriving at factory.7. What's your warranty policy?12 month guarantee and whole life maintance.8. What is your company after sale service?We would express the free replacement parts as soon as possible.
