Flat Bed Automatic Metal Cutting CNC Machine

Product Description

Product description:

1.Semi-enclosed sheet metal
2.Bed frame are made of high quality resin sand, aging rail super audio quenching, good wear resistance
3.Rail laminating process, improve the wear and equipment life
4.Precision rolling screw vice transmission, three-point positioning double support, high accuracy
5.Centralized lubrication unit, the machine is fully lubricate all moving parts, extended equipment life
6.Quick clamping mechanism, high efficiency
Fit Range
1.Have the function of turning cylinder,taper,arc,extrenity,cut through,bore ream,make kinds of screw thread
2.Fit for auto and mobile part,valve,electric tool,hardware meter ect,whosesurface crassitude is with rat.

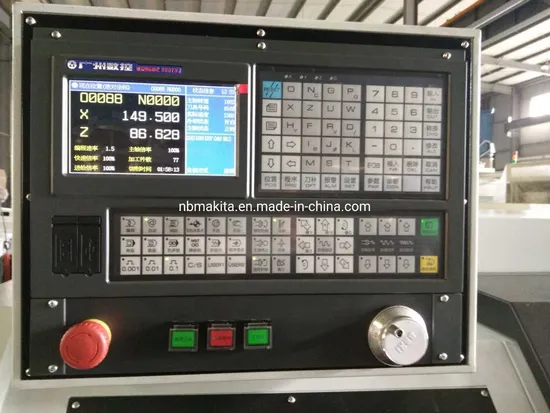

Product show
Specification

Item	Parameter	CJK0640.1B
Capacity	Max.swing over bed	Φ360mm
	Max.swing over slide	Φ96/Φ162mm
	Max.workpiece length	300mm
	Bar diameter	Φ39mm
Spindle	Maximum spindle speed	2500r/min
	Dia of spindle bore	Φ48.5mm
	Spindle taper	35°
Rapid traverse	X-axis rapid traverse	6m/min
	Z-axis rapid traverse	8m/min
Axis stroke	X-axis limit travel	275mm
	Z-axis limit travel	330mm
Tailstock	Sleeve diameter	Φ50mm
	Sleeve travel	80mm
	Sleeve taper	MT3
Tool	Tool post/turret	Four station turret LDB4-C6125(57)
	Shank size	20X20mm
Others	Min setting unit	X axis:0.001mm Z axis:0.001mm
	Spindle motor power	4KW
	Dimension(L*W*H)	1910X1150X1470mm
	Weight/aprroximate weight	1200Kg

Our Company
Makita Machinery Co., Ltd. was founded in the south wing of the Yangtze River Delta, Ningbo Beilun Development Zone, and the creation of "Makita" brand. Enterprise has a group of experts from Japan and China after the reform and develop a deeper knowledge of the machine honed technical team, in the tradition of Japanese machine tool manufacturer century technology, innovation, doing fine and stronger.
Follow the national Thirty-five year plan for higher goals China's equipment manufacturing industry proposed by the company in due course of potential, have developed products are gang tools series, turret series slant bed precision CNC lathe ,with C-axis,Y-axis function turning centers; stand-alone automated robotic combination of CNC lathes; and for customers tailored, flexible production line network intelligence.
Enterprise integration " One Belt and One Road " strategy into a strong force, through 2014 to 2015 two years of efforts the company successfully design and production or transformation of a number of intelligent, unmanned production lines for many Japanese-funded enterprises. Enterprises regard quality as the life ,carefully crafted ,strictly internal control have passed the ISO9001 quality management system certification, CE certification machinery products, we have obtained total of 100 patents including multiple invention patents.
Thanks to long-term and friendly cooperation enthusiasm throughout the new and old customers at domestic and overseas in recent years, the company's business booming, the products sold throughout the country and exported to Europe, America, Southeast Asia, the Middle East and other countries, to obtain the customer's praise.
Packing & Delivery
Packing Details : International Heat Treatment Standard Export Wooden Package.
workbench and the guide surface rust-proof oil daub, and oil film paper cover.
Delivery Details : 15-60 days after PI confirmed and deposite received.
Quanlity& Honor
Exhibition photos
FAQ Q: Are you trading company or manufacturer ?
A: We are factory. Beilun makita machinery is a brother manufacture as shunfa,haishun and haihao company.In fact,we do export from 2008 under haishun company, our goods are very polupare to all over the world.We believe that a brighter further is waiting for us.

Q: How long is your delivery time?
A: Generally it is 15-60 days ,it is according to different machine model and different configuration and order quantity.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment. Also we would like to do LC at sight.

Q: Where is your factory located ? How can I visit there ?
A: We are located in Ningbo City. Which is only 2 hours' away from Shanghai by train.
Also you can fly to Ningbo Airport, it is only 1 hour and we will pick up you.

---
