Cw61160h-Swing Over Bed 1600mm-14m 20tons Workpiece Loads Heavy Duty Horizontal Lathe Large Size Lathe Torno

Negotiable 1 Set (MOQ)

Basic Info.

Model NO.
CW61160H-14M
Guide Rail
Horizontal Guide Rail
Tool Holder
Single Turret
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Setting Mode
Floor-type
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Swing Dia.Over Bed
1600mm
Max Workpiece Weight
20tons
Transport Package
Wooden Case
Specification
CE
Trademark
preciion
Origin
Dezhou, Shandong, Pr. China
HS Code
84581900
Production Capacity
700 Sets/Year

Product Description

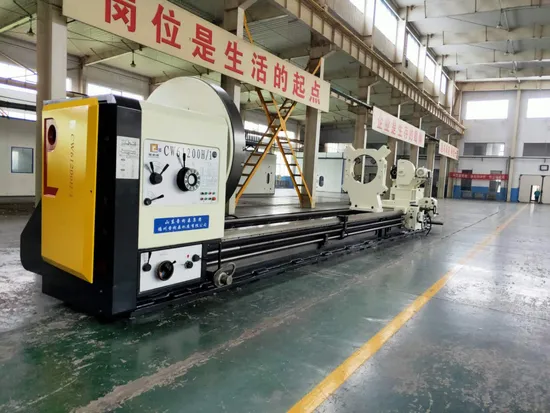

CW61160H
These lathes can perform to turn endfaces ,cylindrical surfaces and internal holes of various parts as well as metric, inch ,module and pitch threads. The top slides can be operated individually by power for cutting short taper surface also. It also can be turned automatically through the compound movement combining longitudinal feed with the top slide feed. Moreover ,the machines may be used for drilling ,boring and trepanning. The are characteristics of power ,high spindle speed and high rigidity. The various ferrous and non-ferrous metal parts may be turned through the heavy cutting by carbon alloy tools.
Main Specifications and Features
SPECIFICATION Model
CW61160H
Max.swing diameter over bed 1640
Max.swing diameter over crossslide 1250
Width of bed 1100mm
Max.length of workpiece 14000mm
Max. loading weight between centers 20 tons
Spindle nose A15
Sindle bore diameter 130mm
Taper of spindle bore Metric No.140#
Range of spindle speed
Dia. of front inner bearing of spindle
3.15-315r/min 21kinds 3.5-290r/min 12 kinds
240mm
Longitudinal feeds range 0.1-12mm/r 56 kinds
Transversal feeds range 0.05-6mm/r 56kinds
Metrec thread range 1-120mm 44kinds
Inch thread range 3/8-28TPI 31kinds
Module thread range 0.5-60mm 45kinds
Pitch thread range 1-56TPI 25kinds
Tailstock sleeve taper Metric 80#
Tailstock sleeve diameter 280mm
Tailstock sleeve travel 300mm
Main motor power 30kW
Rapid motor power 1.5kW
Coolant pump power 0.125kW

Stand Accessories
1. Φ1400mm heavy chuck
2. steady rest Φ120--480mm, 2-8m is mated with 1set and 9-12m is 2 sets and 13-16m is 3 sets.
3. Morse No.6 Center 1set
4. center sleeve 1set
6. tools 1set
7. Foundatin bolts 1 set
8. foundation screws 1set
Special Accessories/Speical order
1 Φ1600mm four jaw chuck
2 steady rest Φ400-700mm, steady rest Φ700-1000mm steady rest for CW61160H,
3 follow rest Φ500-220mm
4 Roller support (opened steady rest)
5 NSK spindle bearing
6 levelers
