Construction Spare Parts Small Mini Concrete Mixer Pump

Product Description

To customers:
1. We are a factory focus in Construction Machines for more than 10 years with CE, ISO, BV, TUV. 2. All of our Concrete Pump has both electric and diesel power for your choice;
3. Specialized After-Sales Service Team for 24h aboard site serving;
4. Overseas Spare Parts, guarantee the sufficient spare parts locally.
Products Description:

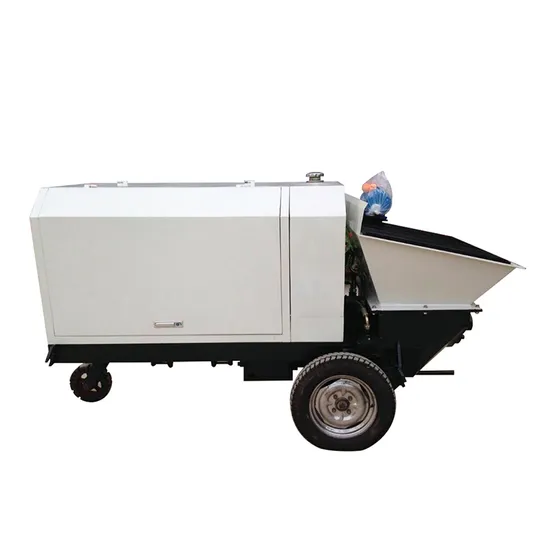

Hengwang HW15-15 Concrete Pump
Max Vertical Delivery Distance : 30m
Max Horizontal Delivery Distance : 50mmDelivery Capacity: 6m3/h
Hengwang Concrete Pump: High construction efficiency; Continuous pumping of field agitator, siring with traditional mixer Compared with mixing and manual feeding, the efficiency is increased by more than 5 times.
Product Paramenters:

Concrete Pump (Model: HW15-15)
Power	15kw
Voltage	220V/380V, (We also have Diesel type)
Max.Aggregate Size	15mm
Max Vertical Delivery Distance	20-30m
Max Horizontal Delivery Distance	40-50m
Delivery Capacity	5-6m3/h
Cylinder Stroke	350mm
Diameter of Delivery Pipe	80-100mm
Total Weight	600kg
Steel pipes	10m
Hoses	10m
Overall Dimension (L*W*H)	1750*700*1200mm

Packing details: Wooden case
