2025 Bcmc Hualong Machinery Infared Laser Cutting Machine for Countertop Slab PLC Programmable Control Stone Bridge Saw for Granite Marble Cutting Machine

Product Description

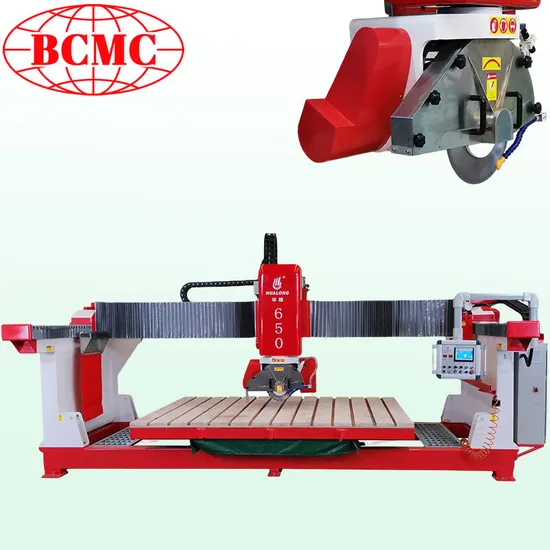

HUALONG Machinery HLSQ-650 automatic stone bridge saw is a mainly used for granite, marble cutting, with many advantages such as rational construction, steady movement, high accuracy, convenient installation and maintenance. Compared with similar products, the advantages are obvious. It is a very important and common equipment in stone processing equipment.
Parameter:

TECHNICAL DATA HLSQ-650
Configuration	Diameter of saw blade	mm	Φ400 - Φ650
	Dimension of working platform	mm	3300 x 2000
	Power of main motor	kw	15
	Power of cutter frame reciprocating motor	kw	1.1
	Power of crossbeam shifting motor	kw	1.5
	Power of hydrulic station	kw	2.2
	Power of lifiting motor	mm	1.5
Main Performance Parameters	Max. length of horizontal cutting	mm	3300
	Water consumption	m3/h	4
Measurement	Water consumption	m³/h	2
	Gross weight	kg	5800
	Dimension (L x W x H)	cm	5750*3600*3400

Main Features:
1) Monoblock structure for easy move, installation and no foundation needed.
2) Siemens, Schnider electric and other high quality accesories such as Hiwin linear guide are adopted.
3) 0°, 90°, 180° and 270° automtaic head rotatation and blade positioning.
4) Blade can tilt automatically 45° for chamfering cutting, or tilt 90° for milling.
5) Automatic cross cutting repeatedly so easy by pushing one-button.
6) Speed can be adjusted according to the stone material cutted.
6) Automatic or manual working mode is optional.
7) Worktable can rotate 0-360°, pause at every 45° automatically or lock at any degree by remote control.
8) Worktable can tilt 0-85°, easy for slab loading.
Detailed Information For Spare Parts:
Control System
Use advanced PLC control system with touch screen to achieve multi programming methods, including manual programming or PC processing operation for powerful functions, which offer friendly and inteligent control.
Linear Guide
Quality linear guide used on crossbeam and carling for high precision of cutting and long lifespan.
Electric Cabinet
Quality electrics used to ensure stable performance.
Laser Reticule Apparatus
Laser checking and calibration instrument to aid in lining up the cut at the beginning of processing.
Machine Part
Name: Incremental Encoder
Brand: ELCO from Germany

For the determination of head movement in X, Y, Z direction and worktable rotation to ensure position precision without the slightest deviation
Remote controller(optional)
Easy controlling the movement in 3 axes in distance conveniently
Hydraulic Giant (optional)
For cleaning the machine and keep it tidy.
Optional Function - Straight Profilling
Our Advantages:
1) 25 years + experience professional on making stone machines.2) Good performance and Long life service --- Our HLSQ series
bridge saw was first exported to Brazil in 2012, which is still working well now.
3) The machining operation is simpler than the operation of other infrared cutting machine, automatically cut by setting
parameters.
4) For chamfering cutting, the blade tilt of HLSQ-650 is controled by PLC, which cutting is accurate. While the other two ways as showed below, the cutting is less accurate, not good for cutting thin slab.
Application:
* Slab cutted to square size or other polygonal
* Round desktop processing
* 3D decorative wall panels
* Countertops
* Doorsteps, staircases and thresholds
* Fireplaces
* Flooring
* Funerary art/tombstone
* Street furniture
* Ventilated facades

---
