Heavy Duty Wood Lathe C6253X1500 Machine Universal Bench Lathe with CE CNC Wood Turning Lathe Machine

Product Description

Product Parameters

Modle		WM180V
Item	Description
1	Swing over Bed	180mm
2	Swing Over Cross Slide	110mm
3	Centers Distance	300mm
4	Width of Bed	100mm
5	Spindle Bore	21mm
6	Taper of spindle	MT3
7	3-jaw-chuck	Ø100
8	Spindle Speeds	50~2500RPM
9	Tailstock Taper	MT2
10	Top Slide Travel	55mm
11	Carriage Slide Travel	75mm
12	Carriage Travel	276mm
13	Tailstock Quill travel	60mm
14	Metric Thread	0.5~3mm(14 kinds)
15	Imperial Thread	10~44TPI(10 Kinds)
16	Longitudinal Feed	0.1~0.2mm/rpm
17	DC Brushless Motor	550W/220V/50Hz/single phase
18	Weight(N/G)	60/65KG
19	Packing Demension	900x450x450mm
Accesseries:3-Jaw-Chuck,Chaange Gear Set,Tool-box and tools,Dead Centers,Splash Guard,Chip Tray.Chuck Guard.
Optional:4-Jaw-Chuck(Ø125mm),Stand,Face Plate,Drill Chuck with Bar(MT2-B16),Follow Rest,Steady Rest.

Modle		WM210V	WM210V-1
Item	Description
1	Swing over Bed	210mm	210mm
2	Swing Over Cross Slide	140mm	140mm
3	Centers Distance	400mm	400mm
4	Width of Bed	100mm	100mm
5	Spindle Bore	21mm	38mm
6	Taper of spindle	MT3	MT4
7	3-jaw-chuck	Ø100	Ø125
8	Spindle Speeds	50~2500RPM	50~2500RPM
9	Tailstock Taper	MT2	MT2
10	Top Slide Travel	55mm	55mm
11	Carriage Slide Travel	75mm	75mm
12	Carriage Travel	276mm	276mm
13	Tailstock Quill travel	60mm	60mm
14	Metric Thread	0.5~3mm(14 kinds)	0.5~3mm(14 kinds)
15	Imperial Thread	10~44TPI(10 Kinds)	10~44TPI(10 Kinds)
16	Longitudinal Feed	0.1~0.2mm/rpm	0.1~0.2mm/rpm
17	DC Brushless Motor	550W	750W
18	Weight(N/G)	68/75KG	75/80KG
19	Packing Demension	900x450x450mm	900x450x450mm
20	Capacity/20" Contain	150PCS	150PCS
Accesseries:3-Jaw-Chuck,Chaange Gear Set,Tool-box and tools,Dead Centers,Splash Guard,Chip Tray.Chuck Guard.
Optional:4-Jaw-Chuck(Ø125mm),Stand,Face Plate,Drill Chuck with Bar(MT2-B16),Follow Rest,Steady Rest.

Item		Unit	Parameter
			C6253x1500
Capacity	Max swing over bed	mm	Φ530
	Max swing in gap	mm	Φ765
	Max swing over slide	mm	Φ320
	Max workpiece length	mm	1500
Spindle	Spindle thru-hole	mm	Φ82
	Spindle nose		D1-8
	Taper of spindle bore		MT5
	Spindle speed	r/min	12 steps, 20-1600
	Spindle motor(Double Speeds)	kW	7.5
Bed	Bed width	mm	400
Tailstock	Quill travel	mm	180
	Taper of center	MT	5
Tool post	Number of station/		4/25X25
	Tool section
Feed	Max X-axis travel	mm	320
	X-axis feed	mm/r	50 Sorts,0.01-0.286
	Z-axis feed Z-axis feed	mm/r	50 Sorts.0.03-0.85
	Metric thread	mm	24 Sorts, 0.25~7
	Inch thread	t.p.i	50 Sorts, 4~112
	Module thread	πmm	34 Sorts,0.25~14
	DP thread	t.p.i. π	50 Sorts, 4~112
Others	Coolant pump motor	kW	0.09
	Packing Size	mm	3035X1110X1900mm
	N/G weight	kg	2750/3090kg

Item		Unit	Parameter

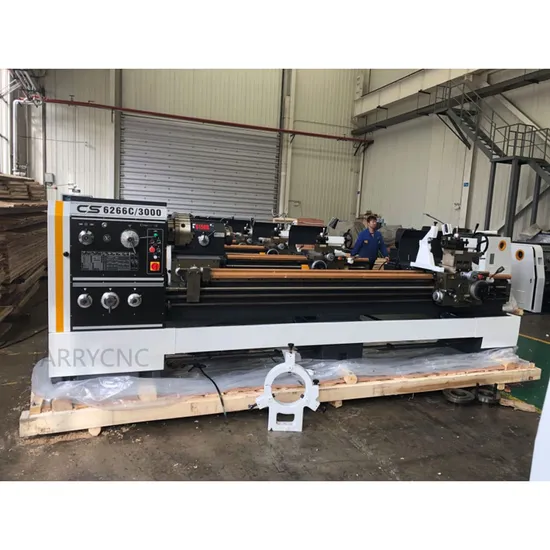

			CS6266Cx1000/1500/2000/3000
Capacity	Max swing over bed	mm	Φ660
	Max swing in gap	mm	Φ870
	Max swing over slide	mm	Φ420
	Max workpiece length	mm	1000/1500/2000/3000
Spindle	Spindle thru-hole	mm	Φ105
	Spindle nose		ISO 702/II No.8 cam-lock type
	Spindle speed	r/min	12 steps, 32-1600
	Spindle motor	kW	7.5
Bed	Bed width	mm	400
Tailstock	Quill travel	mm	150
	Taper of center	MT	5
Tool post	Number of station/		4/25X25
	Tool section
Feed	Max X-axis travel	mm	310
	X-axis feed	mm/r	65 sorts 0.063-2.52
	Z-axis feed Z-axis feed	mm/r	65 sorts 0.027-1.07
	Metric thread	mm	22 sorts 1-14
	Inch thread	t.p.i	25 sorts 28-2
	Module thread	πmm	18 sorts 0.5-7
	DP thread	t.p.i. π	24 sorts 56-4
Others	Coolant pump motor	kW	0.06
	Packing Size	mm	2632/3132/3632/4730X1100X1600mm
	N/G weight	kg	2200/2300;2400/2550;2600/2800;2800/3100kg
Standard accessories: 3-Jaws-Chuck,4-jaws-Chuck,Face Plate,Driver Plate,4-way-tool post,Steady Rest,Follow Rest,Foot Brake,Coolant system,Longitudinal touch stop,LED Lamp,Tools,Protection for Tool-post ,Protection for Chuck,Protection for leadcrew.
Optional:
2 Axis DRO,

Product Description
Introduction:
Can perform internal and external turning, taper turning, end facing, and other rotary parts turning;
Threading Inch, Metric, Module and D.P.;
Perform drilling, boring and groove broaching;
Machine all kinds of flat stocks and those in irregular shapes;
Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;
Both Inch and Metric system are used on these series lathes, it's easy for people from different measuring systems countries;
There are hand brake and foot brake for users to choose;These series lathes operate on power supply of different voltages (220V,380V,420V) and different frequencies (50Hz,60Hz).

Our Advantages

More Products

CNC Vertical Machining Center

Flat Bed CNC Lathe

Slant bed CNC lathe

Universal Engine Lathe

Heavy Duty Engine Lathe

bench lathe

Company Profile
Chizhou Jarry CNC Machinery Co., Ltd was established in July 2014.
We supply CNC-Lathe; CNC-Milling Machine; CNC Cutting Machine, CNC Spare Parts, CNC Accessories. We also supply other machinery for our clients all over the world. Annual sales is over ten million USD. Our machines has been exporting to Europe, Asia, Africa, South America, North AmericaAustralia and others, realiable after-selling serviceOur company has established perfect hassle-free service system in quick response, which covers pre-sales, sales and post-sales to providespecialized and standardized services in quick response for the customers and safeguard the rights and interestes of the customers.
Our company offers variety of CNC Machining Center, CNC Lathe and other machine tools which can meet your multifarious demands. We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with anirresistible force.

exhibitions

Certifications
Packaging & Shipping
FAQ
1. What is the payment Terms ?
A : T/T or L/C ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .
When we receive the advance payment, we will start to make production.when the machine is ready , we will take pictures to you.after we got your balance payment. we will send the machine to you.
2. what is your company mainly produces ?
A : Our company is a professional machine tool manufacturer with many years of experience. The company mainly produces CNC-Lathe; CNC-Milling Machine; CNC Cutting Machine, CNC Spare Parts, CNC Accessories, etc...
3.When is the delivery time?
A: If the machine you will order is standard machine, we can ready the machine within 15days. if some special machines will be some longer. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.we will give you the answer accordingly.
4. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
5. What is the packaging of the machine?
A: The standard packaging of the machine is wooden pallet with plastic film.
