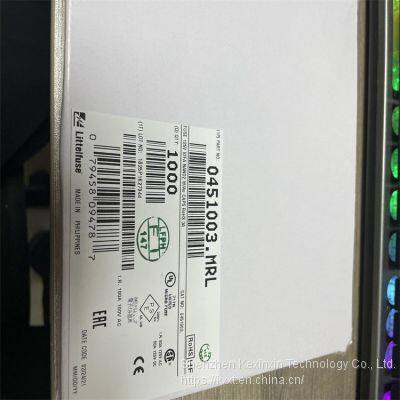

0451003.MRL Littelfuse Surface Mount Fuses 125VAC 3A .0227ohms 451 NANO2

Product Details

Product Description

Product Description
Factory
Mfr. #:
0451003.MRL
Manufacturer: Littelfuse
Product Category: Surface Mount Fuses
RoHS: Details
Series: 451
Product: Surface Mount Ceramic Fuse
Fuse Type: Fast Blow
Current Rating: 3 A
Voltage Rating AC: 125 VAC
Voltage Rating DC: 125 VDC
Interrupt Rating: 50 A at 125 VAC, 50 A at 125 VDC, 300 A at 32 VDC
Fuse Size / Group: 6.1 mm x 2.69 mm
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature: + 125 C
Packaging: Reel
Packaging: Cut Tape
Packaging: KXXReel
Resistance: 22.7 mOhms
Brand: Littelfuse
Height: 2.69 mm
Length: 6.1 mm
Product Type: SMD Fuses
Factory Pack Quantity: 1000
Subcategory: Fuses
Tradename: NANO2
Type: Fast Acting Ceramic Fuse
Width: 2.69 mm
Unit Weight: 0.006373 oz

---
