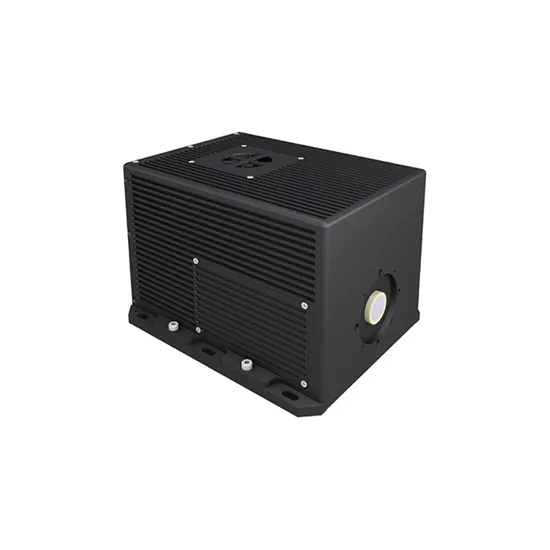

640X512 15um Mct Stirling Cooling Lwir Cooled Thermal Imager Detector Module

Product Description

The LWIR cooled thermal imager adopts high sensitivity MCT focal plane detector, and Stirling Cooling, with a spectral response range of 7.7μm-9.3μm.
Adaptive non-uniformity correction technology, image noise filtering, enhancement, automatic dimming and other intelligent image processing methods are used to ensure good image quality. With high sensitivity, small size, and modular design, the product is easy for integration, and can work around the clock.
Characterized by a full range of functions, multiple interfaces, high reliability, and strong expandability, it can be widely used in industrial monitoring, fire warning, panorama search, characteristics measurement, thermal image viewing, scientific research and IR recognition etc.
Features:· Adaptive non-uniformity correction technique;· 640×512 products, with frame frequency up to 200Hz· High linearity, stability and repeatability, suitable for the measurement of radiation characteristics;· Multiple video output: AL / NTSC / CameraLink / GigE / SDI / Fiber Optics;· Customizable broad spectrum (7.7μm~11.1μm) and high frame frequency.

Model	CQ-LTM6C15L
Resolution	640x512
Wavelength range	7.7μm-9.3μm
Pixel size	15μm
Detector material	HgCdTe
Cooling mode	Sterling
Operating temperature	-40ºC~+60ºC
Input voltage	20V ~ 32V/3A
Power consumption	≤25W@20ºC
Video output	PAL / NTSC / CameraLink / GigE / SDI / Fiber optics
Communication interface	RJ45 standard network port / RS422 serial port
Sync Interface	RS422 / LVDS / LVTTL

---
