Full Water Immersion Retort / Autoclave Sterilization Equipments

Product Description

FAQ
When you spend a huge amount of money buying a device from the internet,and the seller is located tens of thousands of kilometers.I can totally understand that you will feel very insecure.You will have many questions and situations want to confirm again and again.First,i list some simple but important questions and answers.More questions can be talked later on our directly communication.
Q1.Are you original manufacturer of horizontal type retort/autoclave/sterilizer machines?
A:Yes, we are zhucheng zhonggong machinery co.,ltd located in the food machinery city:zhucheng,China.We
establised in year 2002,and our main products are retort machine,automatic retort food loading&unloading system.
We are formal pressure vessel manufacturer that have our own production license of special equipment
People's Republic of China.We can guantee that each of the pressure vessel is both under supervising of our govenment and
our own quality inspectors before delviery.
Q2:If i buy your autoclave machine,how could i install,debug and use it?
A:After you have purchased our equipment and the machine arrive at your factory, you can make an appointment
with our engineers to provide on-site guidance on installation, debugging, and training. The specific operation is set according to your needs.
Q3:What is your warranty policy?
A:Our entire machine is guaranteed for one year (excluding vulnerable parts), and during the warranty period,
any component damage caused by quality reasons all could be in free shipping of new parts.Damaged parts that
exceed the warranty period require pay the part's price and shipping fee for purchase. Many of the accessories
we use are internationally renowned brands. If you don't want to purchase from us, you can purchase them locally
based on the accessory nameplate.
Product Description

Double layer pot water-immersion autoclave 1. Save energy. The hot water used in the sterilization process can be recycled, which can effectively save energy and reduce production costs.
2. Shorten the sterilization time. The double-tank hot water cycle is used for sterilization, and the water in the hot water tank is heated to the temperature required for sterilization in advance, thereby shortening the sterilization time and improving the work efficiency.
3. The sterilization pot adopts hot water circulation and immersion sterilization methods. During the sterilization process, the circulating water in the sterilization tank is constantly switched up and down, which ensures the heat distribution at any point in the sterilization tank from heating, heat preservation to cooling. Uniformity, effectively eliminating the dead angle phenomenon in the sterilization process, making the shelf life of the product more stable and long.
4. The temperature in the sterilization tank is always stable in all stages of the sterilization process, which ensures the qualified rate of the F value.
5. Fully automatic control system. The entire sterilization process is controlled by computer PLC, which can be completed at one time without manual operation. Using a graphic tablet, using the screen for touch control.Pressure and temperature are displayed digitally, and various pressure and temperature modes suitable for any product can be pre-programmed into the computer.
6. The function of measuring F value. Each autoclave can be equipped with an F-value measuring instrument. The measuring instrument has the function of measuring the value. The F-value software calculates the F-value every 3 seconds(based on your own need). All sterilization data, including sterilization conditions, F value, time-temperature curve, time-pressure curve, etc., can be saved or printed after being processed by the data processing software to facilitate production management.
7. The simulated temperature control system can set up a multi-stage heating mechanism. According to the requirements of different foods for sterilization conditions, different heating and cooling programs can be set at any time. The multi-stage heating sterilization method can be used to limit the heat that the food can withstand. To the smallest, the color, aroma and taste can be perfectly preserved, so that each food can be conditioned and sterilized in the best state. The sterilization temperature is accurate to ±0.5ºC, which can avoid the phenomenon of over-cooking or incomplete sterilization of products.
8. 100 sterilization formulas can be stored in the PLC for selection and use.

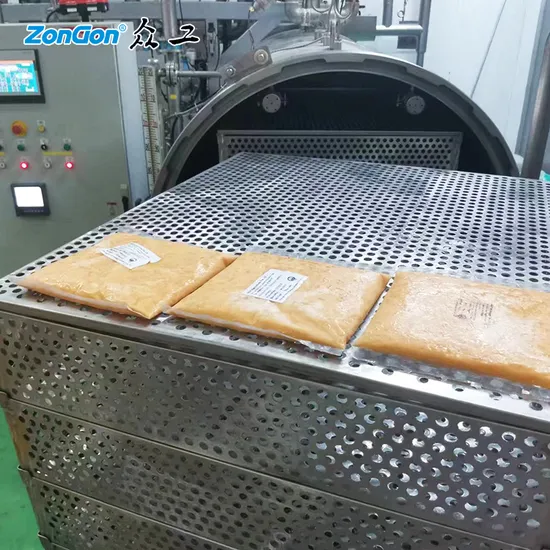

Retort machines made by ZonGon machinery used full sus 304 material,more stable construction.Fully automatic controlled,liberate the hands of staff.Big size SIEMENS control panel,more clearly showing on what is the process going.Fault alarms are accompanied by indicator lights, allowing the entire sterilization process to be completely under the control of the operator.The emergency stop button helps you quickly and safely stop all work processes.
Based on your different packages,we would suggest different loading parts:1.trays,pallets and trolleys;2.baskets,trolleys,and heat resistant pp spacer. Scope of application
What is your processing food product?What is the package type?
In fact,our high temperature sterilization machine suit for most kinds of packages products.Waterproof and heatproof packages.Low acid products.After sterilization, the product can achieve commercial sterility.
Product Parameters
Autoclaves belongs to customization style equipment,widely used in food processing field,new technology development labrotary,machine rents company......We supports various models and functions machines' customization service.Following show 5 of our standard models information for reference.

Model	Diameter(mm)	Tube length(mm)	Basket	Max working Pressure(Mpa)	Max working Temperature(ºC)
PL-06-06	600	600	1	0.3	130
PL-07-12	700	1200	1
PL-09-18	900	1800	2
PL-10-22	1000	2200	2
PL-12-30	1200	3000	3
PL-12-36	1200	3600	4
PL-14-40	1400	4000	4
PL-15-63	1500	6300	6

Certifications
Autoclaves is a kind of pressure vessels,it belongs to special equipment, and formal production and manufacturing can ensure the personal safety of users from the source. Various countries have strict requirements for the production and manufacturing of pressure vessels.ZonGon machinery is a formal manufacturer of pressure vessels in China.Each set of our retort's production meets specifical equipment manufacturing requests.
Company Profile
Our factory located in zhucheng city,shandong province,China.It is a city of food processing machinery.We establised in year 2002.For so long time,our factory engaged in retort machines production and technology development.Our customers all over the world.And we hope more and more food processors can use retort machine made by ZonGon machinery.
Customers cases display
Followings show you some of our customers cases
After Sales Service
Our service not only before order consulting,but also after sales installation guidance and debugging,operators training issues arrangement.And other after sales services.

---
