Welcome to visit

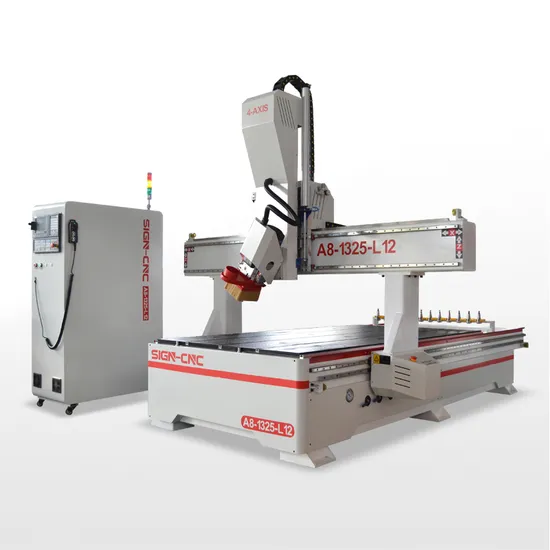

1325 Furniture Making High Efficient Router CNC 4axis Swing Head CNC Machine Router

US$15,800.00
1-2 Pieces
US$15,700.00
3-4 Pieces
US$15,500.00
5+ Pieces

Basic Info.

CNC or Not
CNC
Voltage
380V
Model
A8-1325-L8
Size
1300*2500mm
Spindle Height
400mm
Table
Vacuum and T-Slot Table
Max. Power Consumption
2.0kw
Max. Working Speed
25000mm/Min
Spindle Power
9.0kw Air Cooling
Spindle Speed
0-24000rpm
Drive Motors
Syntec 1000W Servo Motor
Control System
Syntec 60we
Atc
8PC Linear Tool Magazine
Transport Package
Wooden Package
Specification
13 cubic meter package
Trademark
SIGN-CNC
Origin
China
HS Code
8465990000
Production Capacity
1000set/Year

Product Description

1325 furniture making high efficient router cnc 4axis swing head cnc machine router
Specification
Model
A4-1325-L8
X, Y Working size
1300x2500
Z feed Height
400mm
Table Surface
Vacuum and T-slot table
X, Y Structure
Rack and Pinion Drive, TBI Linear Square Guide Rail
Z Structure
20mm Linear Square Guide Rail and Ball Screw
Max. Power Consumption
(Without spindle) 2.0Kw
Max. Rapid Travel Rate
33000mm/min
Max. Working Speed
25000mm/min
Spindle Power
9.0KW ATC spindle
Spindle Speed
0-24000RPM
Drive Motors
Syntec 1000W servo motor and driver
Working Voltage:
220/380V/50/60Hz
Command Language
G code
Control System
Syntec 60WE
X,Y,Z repositioning Accuracy
±0.01mm
X,Y Resolution
<0.01mm
Software
Artcam
Running Temperature
0 degree - 45 degree
Relative Humidity
30% - 75%
Optional Parts

loading and unloading table


Jinan Sign CNC Equipment Co., Ltd.
FAQ
1. How can I run it ?Send you the operation video and English instruction for use.We provide free technical support 2. What else I need except the machine?computer for design drawing ,ATC machine use air compressor3.What is the warranty?2 years.4. What is your payment?T/T 30% deposit ,70% before shipping. L/C at sight ,****** Secure payment.
