Basic Info.
Model NO.

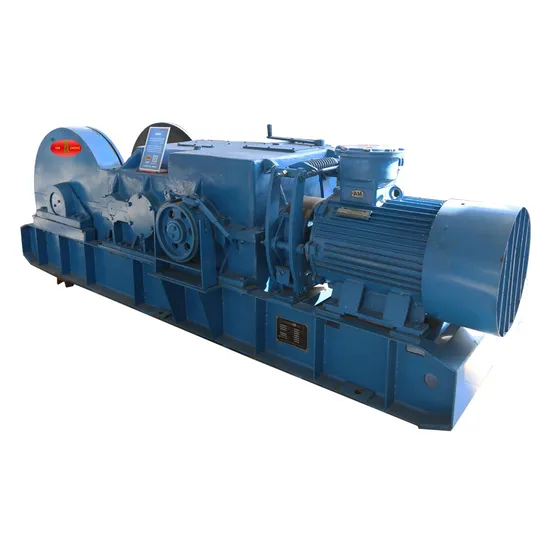

JSDB-12 Double Drum Hoist Winder
Carrying Capacity
Weight Level
Certification
CE, ISO 9001
Standard
National Standards
Wire Rope Static Tension Kn
Fast 15 Slow 120
Inner Layer Max.
Fast 22.1 Slow 160
Average
Fast 18.3 Slow 140
Transport Package
Wooden Package or as Naked
Specification
JSDB-12 Double Drum Hoist Winch
Production Capacity
50set/Month
Packaging & Delivery
Package Size
100.00cm * 100.00cm * 120.00cm
Package Gross Weight
100.000kg
Product Description
Product Description
Introduction of Factory Directly Supply 3 Ton 5 Ton 10 Ton 16 Ton 20 Ton Lift Winches Electric Double Speed WinchThe winch is a compact and durable winch. Mainly used in construction, water conservancy projects, forestry, mines, docks, etc. for lifting or flat towing of materials. The winch has the following characteristics: high versatility, compact structure, small size, light weight, heavy lifting capacity, easy to use and transfer, and is widely used in construction, water conservancy projects, forestry, mines, docks, etc. for lifting or hauling materials, and can also be used as supporting equipment for modern electronically controlled automatic work lines. There are 0.5t~350t, divided into two kinds of fast and slow speed. The winch can be used alone or as a component part of machinery for lifting, road construction and mine hoisting, and is widely used because of its simple operation, large rope winding capacity and convenient displacement. The main technical indicators of the winch are rated load, support load, rope speed, rope capacity, etc.zmwm21
Product Parameters
Parameter of Factory Directly Supply 3 Ton 5 Ton 10 Ton 16 Ton 20 Ton Lift Winches Electric Double Speed Winch
Model | JSDB-10 | JSDB-12 | JSDB-13 | JSDB-15 | JSDB-16 | JSDB-19 | JSDB-25 | JSDB-30 |
Fast | Slow | Fast | Slow | Fast | Slow | Fast | Slow | Fast | Slow | Fast | Slow | Fast | Slow | Fast | Slow |
Wire rope static tension KN | Outer layer Max. | 14.5 | 100 | 15 | 120 | 15 | 130 | 18 | 150 | 25.4 | 160 | 27.8 | 190 | 30 | 250 | 38 | 300 |
Inner layer Max. | 22.1 | 140 | 22.1 | 160 | 29.1 | 200 | 30 | 250 | 36.6 | 280 | 43.4 | 320 | 56 | 390 | 56 | 470 |
Average | 18.3 | 120 | 18.3 | 140 | 22.05 | 165 | 23 | 200 | 30.5 | 220 | 35.6 | 255 | 43 | 320 | 43 | 380 |
Wire Rope speed m/s | Max. | 1.3 | 0.2 | 1.3 | 0.2 | 1.3 | 0.2 | 1.39 | 0.2 | 1.39 | 0.2 | 1.6 | 0.2 | 1.51 | 0.2 | 1.66 | 0.2 |
Outer layer |
Average | 1.075 | 0.18 | 1.075 | 0.18 | 1.11 | 0.18 | 1.235 | 0.17 | 1.235 | 0.17 | 1.31 | 0.18 | 4.145 | 0.16 | 1.145 | 0.174 |
Drum Size | Wire Rope Length m | 120 | 180 | 180 | 300 | 300 | 500 | 500 | 800 |
Drum Dia.*Width | ф430*430 | ф430*443 | ф435*530 | ф470*530 | ф510*530 | ф545*570 | ф545*760 | ф650*800 |
Wire Rope size | Dia. | 20 | 22 | 24 | 28 | 28 | 30 | 30 | 30 |
Structure | 6*19 |
Nominal tensile strength kn | 1670 |
Motor | Type | YBK2-200L1-6 | YBK2-200L2-6 | YBK2-200L2-6 | YBK2-200L2-6 | YBK2-250M-6 | YBK2-280S-6 | YBK2-280M-6 | YBK3-315S-6 |
Power KW | 18.5 | 18.5 | 22 | 22 | 37 | 45 | 55 | 75 |
Revolution rpm | 970 | 970 | 970 | 980 | 980 | 980 | 980 | 980 |
Voltage V | 660/1140 | 660/1140 | 660/1140 | 660/1140 | 660/1140 | 660/1140 | 660/1140 | 660/1140 |
Dimension | L*W*H | 2540*785*800 | 2540*785*800 | 3182*968*987 | 3260*1060*1060 | 3260*1060*1060 | 3825*1214*1470 | 3875*1274*1187 | 4750*1516*1512 |
MM |
Weight | 2340 | 2600 | 3900 | 4400 | 5000 | 5480 | 7800 | 8200 |
(with motor)(kg) |
