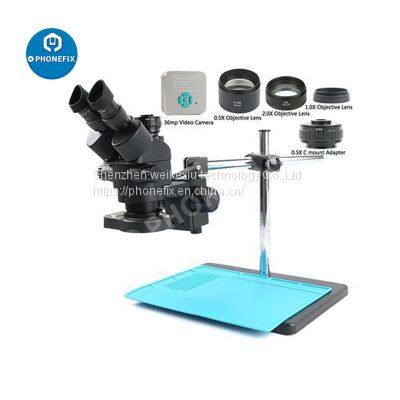

Simul-Focal 3.5X-90X Continuous Zoom Stereo Trinocular Microscope with 36MP 4K 1080P HDMI USB Video Camera, Trinocular Simul-focal Microscope with CTV Adapter and 0.5X 2.0X Barlow Lens
7X to 45X Continuous Zoom Magnification Power
45-degree Inclined Trinocular Simul-focal Head with SUPER WIDEFIELD High-Eyepoint Eyepieces
Trinocular port for adding photo or video capability
30mm Super Widefield WF10X Eyepieces with 20mm Field of View
High Resolution with Great Flatness and Contrast
Sharp Stereo Erect Images over a Wide Field View
Crystal Clear Original True Color Images
Large Working Distance
Accurate Alignment Ensuring a Fatigue-Free Viewing
Full Optical Glass Elements
Precise Ground Glass Lens
All Metal Mechanical Components
Adjustable Interpupillary Distance
Manufactured under ISO 9001 Quality Control Standard
Specifications:
Head: 45-degree inclined 360-degree swiveling trinocular simul-focal
Eyepiece: 30mm super widefield high-eyepoint WF10X/20
Objective: 0.7-4.5X
Zoom Range: 6.5:1
Trinocular Port: 23mm photo port
Interpupillary Distance: 2-1/8" to 3"(54-76mm)
Field of View: 1-1/4" (33mm)
Working Distance: 7X-45X (100mm) Use 0.5x objective lens 3.5X-45X(165mm) Use 2.0x objective lens 7X-90X(40mm)
Head Mounting Size: 3" (76mm) diameter
Accessory Mounting Size: 1-7/8" (48mm female thread) diameter
144 bright white LED bulbs
100,000 hours of life
Intense and focused shadow-free illumination
The brightness of 0-100%Adjustable,high brightness
Variable intensity control
Power input: 100-240V, 50-60HZ
Suit for the dia of the lens: 30mm-160mm
Feature:
High Quality, High Resolution, Clear Images
36.0MP 1/2.33 Inch big size Japan Panasonic CMOS sensor
TF Card Video Recorder
Photo Model / Video Model
Industry Cmos Camera. It can Show the live image directly on any HDMI monitor , Projector or TV.
It build in digital crosshairs and color control, add line in the pictures, freeze ,Mirror, Rotate, NegativeSupply USB2.0,HDMI HD video,Two output ports
Specification:
Model: Camera with HDMI USB2.0 two output
Image sensor: 36 megapixel Panasonic sensor
Pixel size:1.335μm × 1.335μm
Frame rate: 60F/S @ HDMI output
Movie size:4K(25fps) 2K(25fps) 1080P(60fps) 720P(60fps)（Note: If you need to record 4K or 2K video, you need to use the SDHC class10 TF card.）
Housing: Aluminium alloy
Support: CS C-Mount lens
White balance: Auto/manual
Digital Magnification Zoom: 5X digital zoom
Brightness control: Auto/manual
Color: R/G/B adjustable
Freeze: Support
Film and record: Support
Cross cursor: Support multi-color, size adjustable
Transverse and vertical line Support multi-color, 4 pcs of transverse lines/vertical lines, moveable SNR Support
TF card interface: Max 32G
HDMI interface: Standard HDMI output (Type A)
Image resolution: 6912*5184 (for TF Card), 1920 *1080 (for PC USB)
Video resolution: 1920 *1080 @ 60FPS (for HDMI USB)
Video format: MOV ((for TF card)
White Balance: Auto
Light: Auto
Negative: Support
Morror: Left/right,Up/Dow
OSD: English/Chinese
Line: different color,4 horizontal line , 4 vertical line,any positions
Package Including:
1 x Trinocular Stereo Zoom Head(Working distance is about 10cm)
1 x Pair of Super Widefield 10X20MM Eyepieces
1 x Pair of Eye-Guards
1 x Dust Cover
1 x 144-LED Ring Light
1 x Big Stand
1 x 76mm Focusing Holder
1 x High temperature resistant working pad
1 x HDMI USB Video Camera
1 x HDMI Cable
1 x IR Remote control
1 x Power Supply Adapter (EU/AU)
1 x 0.5X C-mount Adapter
（Optional）
1 x 2.0X Microscope Auxiliary Objective Lens(Working Distance 40 mm)
1 x 0.5X Microscope Auxiliary Objective Lens(Working Distance 165 mm)
1 x 1.0X Microscope Auxiliary Objective Lens(Protective Function Lens)
1 x Adjustable Metal Arm
>>
