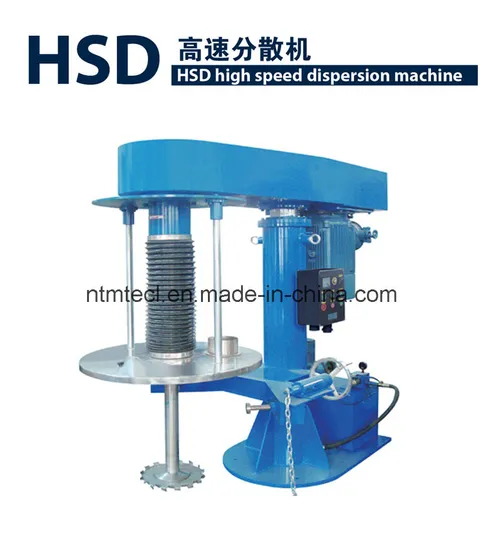

High Speed Agitator for Paint, Coating, Pigment, Chemical Liquid

US$2,000.00 1 Piece (MOQ)

Basic Info.

Model NO.

HSD

Application Area

Engineering & Construction, Chemical

Certification

Condition

New

Mixing Drum Shape

Disc

Stirring Type

Spiral

Working

Convection Mixer

1000L Paint Agaitor

Double Speeds High Speed Dispersing

Mixer Type

Agitator

Layout Type

Verticle

Operating type

Continuous Operating

Transport Package

Wooden Case

Specification

Trademark

MTE

Origin

Nantong

HS Code

8479820090

Production Capacity

300sets

Product Description

It can mix, dissolve and disperse two or more kinds of liquid and powder materials, It can work single or together with other sand grinders.

Technical parameters

Model	HSD1.5	HSD4	HSD11	HSD22	HSD37	HSD45	HSD90-160
Motor power (kw)	1.5	4	11	22	37	45	90-160
Rotating speed (rpm)	1450	1450	1450	1450	1200	1200	1000
Dia.of disc.( mm)	150	200	250	350	400	450	600
Lift (mm)	800	800	900	1200	1200	1600	2000
Power of pump (kw)	0.55	0.55	0.75	1.5	1.5	2.2	3
Capacity (L)	50	200	400-600	600- 1000	1000- 2000	1000-2500	5000- 8000
Weight (kg)	360	400	800	1500	1700	2100	2600- 3000
