US$51,200.00-210,000.00
|
1 Set
(MOQ)
|
Basic Info.
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
GS, CE, ISO 9001
Control System
Fanuc, Siemens, Mitsubishi
Tool Magazine
24 PCS,32 PCS
Guide Rail
Linear Rail or Hard Rail
Motor Power
11,15,18.5,22kw
Transport Package
Plywood Case
Specification
6800*2800*3500
Production Capacity
1200/Year
Packaging & Delivery
Package Size
840.00cm * 440.00cm * 380.00cm
Package Gross Weight
35000.000kg
Product Description
Product Description

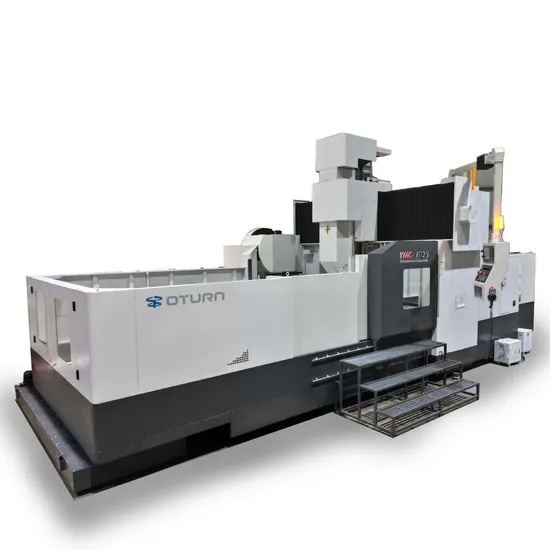

Remarkable Rigidity and Precision for Enduring Accuracy
The primary components of our Versatile CNC Milling Machine, including the base, workbench, column, spindle box, and saddle, undergo meticulous FEA finite element analysis, embodying design optimization, lightweight construction, and exceptional rigidity. The minimized distance between the spindle center and guide rail surface, coupled with reduced flipping torque, significantly enhances processing stability. Utilizing resin sand molding and high-strength, top-quality cast iron, the machine benefits from a comprehensive heat treatment process that eradicates residual stress. Precisely hand-scraped contact surfaces ensure maximum structural rigidity throughout the machine. Our extensive product line, featuring a full spectrum of specifications, is equipped with a highly adaptable automated tool magazine and an advanced vertical and horizontal tool changing system, delivering automated, efficient, and highly productive machining capabilities. The modular spindle design caters to diverse cutting requirements, and the Y-axis employs an ultra-high rigidity roller type linear slide rail. This hybrid system combines the robust cutting ability of hard rails with the swift movement and minimal wear of linear slides, thereby greatly enhancing rigidity and control.
The three-axis system boasts roller guide rails from world-renowned brands, offering superior rigidity and outstanding dynamic accuracy. It utilizes Taiwan-made, large-diameter grinding ball screws for the three-axis transmission, ensuring a compact structure, smooth operation, low thermal elongation, and high precision. The robust screw support forms a stable, high-rigidity mechanical transmission system. Our high-precision spindle is engineered to provide continuous and reliable lubrication to spindle bearings, and the standard spindle oil cooling system maintains consistent operational stability over prolonged periods.
Product Parameters
DESCRIPITION | UNIT | YMC-3025 |
Travel X/Y/Z | mm | 3000/2500/1000(1200) |
Table Size | mm | 3200×2200 |
Max.Table Load | kg | 12000 |
Distance from Spindle Nose to Table | mm | 200-1200 |
Distance between Column | mm | 2500 |
Spindle Tapper | | BT50/φ190 |
Spindle RPM | | 6000 |
Spindle P.R | kw | 22/26 |
G00 Feed Rate X/Y/Z | mm/min | 10000/15000/10000 |
G01 Feed Rate | mm/min | 1-8000 |
Machine Weight | kg | 35000 |
Collant Tank Capicity | liter | 500 |
Lubrication Tank | liter | 4 |
Power Capicity | kVA | 45 |
Air Pressure Request | kg/cm² | 5-8 |
ATC Type | | |
ATC Tapper | | BT50 |
ATC Capicity | | 24/32(40) |
Max.Tool dia./length | mm | φ125/400 |
Max.Tool Weight | kg | 18 |
Machine size | mm | 8400*4400*3800 |
Positioning accuracy | mm | 0.008/300 |
Repeatability | mm | 0.005/300 |
Min. tool change time | s | 2.9 |
