US$1,500.00-9,800.00
|
1 sets
(MOQ)
|
Basic Info.
Tank Material
Stainless Steel 304 / 316
Filter Media
Manganese Sand/Quartz Sand/Activated Carbon/Resin
Technology
RO Membrane Filtration
Product Name
Water Treatment System Processing Reverse Osmosis
Operation
Continuous Running Water Purification
Transport Package
Wooden Case
Origin
Guangzhou, Guangdong, China
Production Capacity
500sets/Month
Packaging & Delivery
Package Size
120.00cm * 70.00cm * 180.00cm
Package Gross Weight
5000.000kg
Product Description

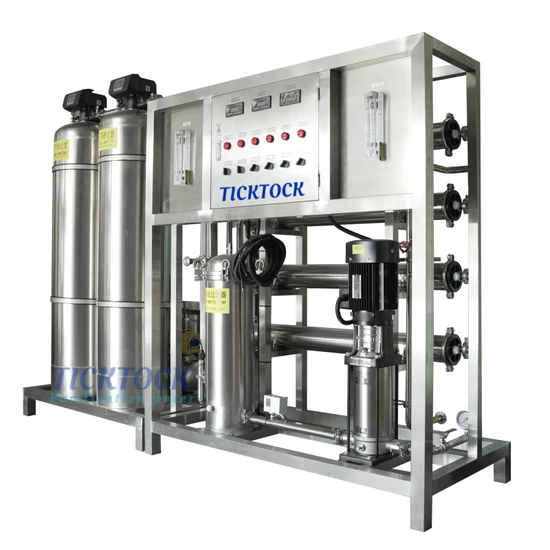

Product Overview Widely considered one of the most effective water filtration methods, reverse osmosis (RO) creates clean, great-tasting water. RO systems are used in a variety of applications. No matter what kind of water you start out with, there is likely an RO system that will suit your needs. Details Images Products Description
Items | Water Machine Description | Brand | Quantity |
1 | Raw water booster pump | CNP/Grundfo s/SHIMGE and others | 1 Set |
2 | Quartz Sand filter | China | 1 Set |
3 | Activated Carbon filter | China | 1 Set |
4 | Cartridge/security PP element filter | China | 1 Set |
6 | High pressure pump | CNP/Grundfo s/SHIMGE and others | 1 Set |
6 | Rever Osmosis Membrane&membrane housing,Full Stainless steel 304 rack. Reverse osmosis water production: 500L/h, desalination rate:96~99%. | 1 Set |
7 | Pipe fittings, valves(304 stainless steel/PVC) | China | 1 Set |
8 | Stainless steel Electronic control system | China | 1 Set |
9 | Filter Media(Manganese sand/Quartz sand/Activated carbon/Resin) | China | 1 Set |
10 | Pressure gauges | China | 1 Set |
11 | Flowmeter Panel type | China | 1 Set |
12 | UV Sterilizer | China | 1 Set |
Ticktock RO unit design features: The main parts and components are made of well-known products with reliable performance; The system has no wearing parts, no need for large amounts of maintenance, and the operation is effective for a long time; The system is set up with soft start, and the pressure is slowly raised to avoid the compaction damage to the RO membrane by water hammer phenomenon; The design of the device should avoid back pressure on the membrane element; Setting a low pressure switch to protect the high pressure pump from damage due to water supply stoppage; Automatic rinsing of the membrane element when the system is turned on, and the desalinated water can automatically rinse the membrane surface contaminants clean and reduce the rate of contamination; Automatic fresh water refilling when the system is shut down to prevent seawater from staying and contaminating the membrane element; Setting inlet and discharge pressure gauges to continuously monitor the differential pressure of the RO membrane, prompting the cleaning time, and designed with a membrane cleaning system; The system automatically stops when the terminal tank reaches a high liquid level, and automatically starts replenishing water when the liquid level is lower than the center level; The whole system is controlled by Siemens (or the same grade brand) PLC + 10" touch screen program, and is equipped with alarm system.
Application range of water treatment equipment | |
Power industry: | boiler make-up water, cooling dam; |
Electronic industry: | semiconductor industry ultra pure water, integrated circuit cleaning water, formula water; |
Food industry: | formula water and production water; |
Hospital industry: | process water, preparation water, washing water, injection water, sterile water preparation; |
Beverage industry: | formula water, production water, washing water; |
Chemical industry: | production water and wastewater treatment; |
Drinking water engineering: | ultra pure water preparation and drinking water purification; |
Petrochemical Industry: | advanced treatment of oilfield injection water and petrochemical wastewater; |
Desalination of sea water: | production and living water in island areas, coastal water shortage areas, ships, sea water oil fields, etc; |
Environmental protection field: | recovery of precious metals and water in electroplating rinse water to achieve zero or micro discharge. |
Flow Chat Why Choose Us We have a lot customer case. Customers in all industries include electronic Industry,Batteries production,Boiller water treatment,Pharmaceutical industry,Agriculture & daily life,Irrigating for plants;Directly drinking water,Food & Beverage industry and so on.Our products are sold around the world. Certifications Product packaging The whole container shipment of products using film paper packaging, small equipment bulk exported in wooden crates.
FAQ Q: Are you manufacturer?
A: Yes.We are a manufacture founded in 2009,The engineering team has 30 years of experience. Q:What should we know before buying industrial water purification system?
1. Pure water production capacity (Liter/Hour). 2. Feed water TDS and raw water analysis report. 3. Available electrical power voltage and phase. Q: How long is your delivery time?
A: Generally it is 5-50 days, Depends on your project.Some of model have in stock.
Q:How can you control the quality and delivery?
A:Our production according to CE / ISO standards. B:All our machines will be tested before packaging. Wooden packaing is strong and safety for long delivery.
Q:What's your warranty?
A:Our warranty is 1~1.5 year.
>>
