Guichun High Speed Weaving Machine Crank/Cam/Dobby Series 190cm-280cm Waterjet Loom

US$6,100.00-12,000.00 4 Pieces (MOQ)

Basic Info.

Model NO.
898 Model
Computerized
Computerized
Precision
High Precision
Certification
CE, ISO9001: 2000
Warranty
1 Year
Customized
Customized
Condition
New
After-sales Service
After Sales Service
Product Attributes
Made by Our Own Factory
Components
High and Stable Quality,Supplied for Many Years
Market
India,Indonesia,Vietnam,Pakistan,Turkey,etc.
Speed
400rpm-1200rpm
Price
Competitive Prices
Support
Strenthened Beams&Support
Acssesories
Competitive Acssesories
Transport Package
Packing Properly
Specification
40m³ high cube container
Trademark
GCKJ
Origin
Qingdao, China
HS Code
8446304000
Production Capacity
5000pieces/Year

Product Description

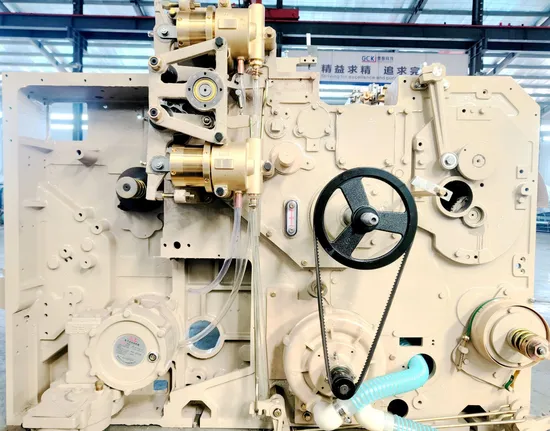

JWYC898 series heavy duty water jet loom is specially designed for weaving high density and high grammage fabrics, featuring with high speed, high efficiency and stable operation capability, thus performs very well on weaving high density and high grammage fabrics. This model can be equipted with mechanical weft-storage system, single/double/three nozzle electronic free weft selecting system, cam shedding and dobby shedding, giving varieties to the patterns and ranges of fabrics.
Machine Specifications
Item Specification Optional
Reed Width Nominal reed width(cm):170,190,210,230,260,280,300,340,360cm
Effective reed:(170~260cm) 0~60cm
from 170 to 260cm Nominal reed width reduce 0~60cm
0~80cm(280cm)0~80cm
Width more than 280cm, Nominal reed width reduce 0~80cm
Speed Max 1200 RPM ( actual speed depends on the fabric type)
Voltage 220V/380V/415V
Weaving Range Spun:Ne100~Ne2.5
Filament:22dtex~1350dtex
Weft Selection Two color, four color, six color and continuous expansion function
Power Positioning and stopping by electromagnetic brake control
Motor drive 2.2KW-5.5KW Direct drive motor(XINLIAO/SANHE/HUICHUAN/VEICHI,ETC.)
Left hand&Right hand operation of control buttons
Inside Gear TTG/Yuanyi,made in Taiwan,China,ultra-silent, ultra-wear-resistant, ultra-low vibration, high precision
Inside Bearing German bearing
Weft Insertion Maximum weft insertion rate: 2280m/min
Combination of main nozzle and auxiliary nozzle Drafting nozzle
Profiled reed
Auxiliary main nozzle
Shedding Crank connecting rod shedding: 4 pcs heald frame or 6 pcs heald frame
Positive cam shedding:Up to 12 pieces of heald frame
Dobby shedding: up to 16pieces of heald frames
Jacquard shedding
Let Off Negative loose warp or positive loose warp device
Electronic let off Double warp beam
Diameter of the beam flange:Φ800mm Φ914mm
Φ1000mm
Take Up Electronic take up
Standard density 25-300 picks/inch
Maximum roll cloth diameter: Φ 600mm (cam, dobby, jacquard shedding) Φ 520mm (crank shedding)
Beating Up "U" shaped beating up shaft
Four-link beating-up (narrow width), six-link beating-up (wide width)
Configure rocker shaft middle support
Length Measurement&Weft Storage Electronic weft feeder
Weft Stand Floor type 4 barrels (2 nozzles), Floor type 8 barrels (4 nozzles), Floor type 10 barrels (6 nozzle)
Selvage Planetary gear type Selvage device
Yarn end Treatment
Discarded take-up 2pcs drum-type
Weft Cutting Mechanical weft cutting device Electronic weft cutting device
Lubrication Main transmission part oil bath type, manual centralized oil supply Electric central oil supply
Stop Machine Device Weft yarn: photoelectric weft feeler, double probe
Warp yarn: Electrical contact six-row dropper
Others: selvage yarn, discarded edge yarn and automatic stop when the yarn is broken
Stop reason: show the information on the display, multi-function 4-color light stop display
Automation Inverter to adjust speed
Electronic Conrol System Huichuan,Xinliao,Weichi,Jiading,Sanhe,etc. Or electronic control brand specified by the customer
