Vinyl PVC Clear/Opaque/Static/Rigid/Soft/Flexible Film for Wrap, Packaging/Cover/Printing/Medical/Protection

US$1.30-1.70 500 kg (MOQ)

Basic Info.

Model NO.
0.05mm-0.22mm
Hardness
Soft
Molding method
Calendered Process
Application
Decorations Flooring Packaging Lamination
Process
Calendering
Sample
Free for First Time
Shipment
Within 15 Days
Surface
Transparent/Color, Glossy/Embossed
Phr
20-60
Transport Package
Rolls
Specification
EN71 SGS RoHS REACH
Trademark
MC Plastic
Origin
China
HS Code
3920430090
Production Capacity
20, 000mts/Year

Packaging & Delivery

Package Size
120.00cm * 120.00cm * 150.00cm
Package Gross Weight
50.000kg

Product Description

Vinyl PVC Clear/Opaque/Static/Transparent/Rigid Film for Wrap, cover, Decoratiove, Medical, Protection and flooring .
PVC calendered film :
A: Surface Properties: Matte Glossy Transparent Translucent No pinholes No Bubbles No wrinkles No occluded air lay flat
B:Colors: Any colors can do
C:Roll Specification : Thickness :40Micron-220Micron Width:600mm-2200mm
Length : 80-3000m
D:Packaging: Inside protective foam ,outside pvc film wrapped ,with cardboard on two sides.
E:Standard or specific requirements: 16 Phthalates free .our formulations depend on the requirements of customers: softness ,PHR ,UV property ,fire resistance and so on .
F: PVC Physical Properties
Item Index
Mulch Film Printing film Outdoor film Industrial film Inflatable toy film Insulation tape film Others
TOP Quality First Class Second Class TOP Quality First Class Second Class
1 Tensile Strength(MD CD)MPa ≥16.0 ≥16.0 ≥13.0 ≥11.0 ≥16.0 ≥14.0 ≥11 ≥16.0 ≥16.0 ≥22.5 ≥15.0
2 Elongation at break(MD CD)% ≥210 ≥160 ≥150 ≥180 ≥200 ≥180 ≥130 ≥200 ≥220 ≥200 ≥180
3 Elongation at low Temperature(MD CD)% ≥22 ≥8.0 ≥8 ≥8 ≥30 ≥25 ≥8 ≥10 ≥10 ≥10
4 Angle tearing strength(MD CD)% ≥40 ≥40 ≥35 ≥30 ≥40 ≥35 ≥30 ≥40 ≥40 ≥40 ≥45
5 Dimensional stability(MD CD)% ≤7 ≤7 ≤7 ≤7 ≤7 ≤7 ≤6 ≤7 ≤5
6 Heating Loss % ≤4.0 ≤6.0 ≤6.0 ≤6.0 ≤4.0 ≤4.0 ≤4.0 ≤3.0 ≤4.0 ≤4.0

Process of PVC calendering film PVC Resin SG-3 Or SG-5 ,K Value 60-75 .
Mixed process: PVC resin with Plasticizer, Lubricants, stabilizers ,pigments and filler. From mixer or mill ,then the extrusion .

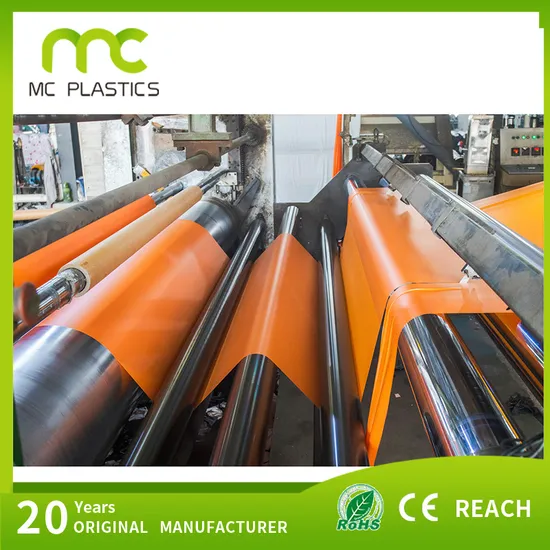

Four&Five-Roll calendering process which compresses and rolls the plastic into a flat film or sheet. Finishing equipment cooling and take-off the films with embossed or plain rolls.
Finished rolls.
Inspection ,can test surface, tensile strength ,plasticizer extraction/migration, elongation ,flame-retardant, breakdown and so on .
Packing and shipping.
