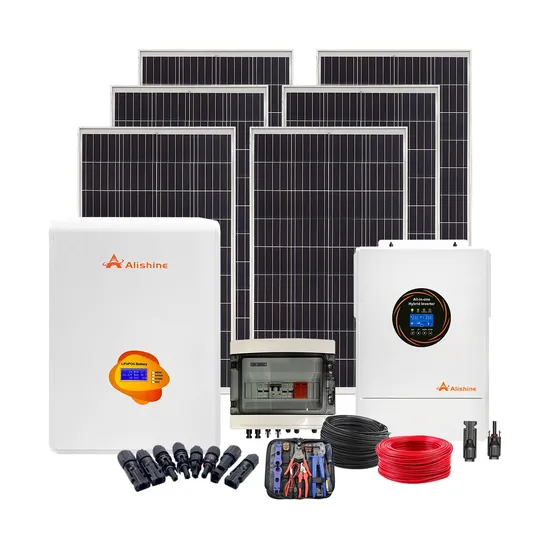

off Grid Home Hybird Solar System 5kw 11kw Complete Parallel Solar Inverter

Product Description

Off Grid Home Hybird Solar System 5KW 11KW Complete Parallel Solar Inverter Product Description

Product Advantages
Off-grid hybrid solar inverter
3 in 1 design, Power Inverter + MPPT controller + Grid Charger0
Working without battery during daytime.
Support lithium activation wake-up and cold start function
Auto restart while AC is recovering.
AC and PV charge voltage is adjustable and can meet different types of battery charge requirements.
Adjustable Charge Current & Voltage, selectable Lead acid / Lithium battery.
Solar, Grid, and Battery Energy complement each other, and riority selectable.
RS232, BMS/RS485, Dry Contact Communication.
WiFi Plug or GPRS option for Mobile App, Automatic generator starting option.
Has an economical model, small capacity MPPT, and PV input.
Have parallel function, max can parallel 9 units.
Selectable Utility, Solar or Battery priority, power Saver Modes.
Pure sine wave output, can be suitable for different loads.
Protection for overload, over temperature, short-circuit, battery Low, battery reverse connection.
Product Parameters

Product name	Parameters	Package
AL-5.5KW	DC48V/5.5KW AC230V 50HZ/60HZ. MPPT current: maximum 100A. AC current: maximum 80A. PV voltage: 120-500V.	Stand-alone use does not support parallel operation. Product size:536*350*135mm Package size:590*435*210mm
AL-5.5KWPro	DC48V/5.5KW AC230V 50HZ/60HZ MPPT current: maximum 100A. AC current: maximum 80A. PV voltage: 120-500V.	With BMS communication. Supports 9 parallel machines. Product size:536*350*135mm Package size:590*435*210mm
AL-11KW	DC 48V 11KW AC input and output: 220VAC. Solar charging mode: MPPT. Rated current: 150A. Optimal VNp. Working range: 300-400VDC. MPPT input voltage range: 90V-500VDC. Maximum photovoltaic array power: 5500W * 2	Standard BMS communication, 232 communication, compatible with lithium or lead-acid batteries, optional parallel operation. Product size:570*500*148mm Package size:752*702*270mm

Installation Instructions
Do not mount the inverter on flammable construction materials.Mount on a solid surface.The recommended installation position is to be adhered to the wall vertically.Make sure to keep a certain distance from other objects and surfaces to ensure adequate heat dissipation and enough room to remove wires.

Company Profile
FAQ
Q1: What certificates do you have? A: Alishine is a professional lithium battery manufacturer with ISO9001, ISO14001, and ISO45001. All the products have CE certificates, and other certifications can be customized for inspection. Q2: Are you a factory or trading company? A: We are a professional battery manufacturer with our factory and brand. We provide all kinds of OEM/ODM services for clients. Q3: Can I take some samples to test before placing a bulk order? A: We provide our customers with sample products to test and evaluate their quality and performance. For more information on how to request a sample, please get in touch with our sales team. Q4: How long is the delivery time? A: Sample Order within 7-10 days, and the bulk production within 15-20 days. Q5: Is the quality of your product guaranteed? A: In our 16 years of lithium battery product career, there's no one explosion or fire accident happened. Safety and quality are always our priority. Q6: What if I meet a problem during installation? Will you support me and how? A: Yes, we provide 24-hour online help, please contact us by email or by WhatsApp whether it is a technical service or an after-sales service.

---
