Basic Info.
Model NO.
QUINT-PS/1AC/24DC/20
Classification
Power Supply Module
Standby Time
Long-acting Machine
Standby UPS
Sine Wave Output UPS
Output Capacity
Small Type
Equipment Mode
Decentralized
Input Voltage Range
100 V AC ... 240 V AC -15 % ... +10 %
Weight Per Piece (Including Packing)
2190 G
Nominal Input Voltage Range
100 V AC ... 240 V AC
Transport Package
Cartons/Wooden Boxes
Specification
90*130*125 mm
Product Description
Product Description
Uninterruptible power supplies
No problems during mains interruptions
Mains interruptions can have serious consequences. We provide the following solutions for high system availability, even in the event of a mains failure: • DC and AC UPS modules with communication interfaces • UPS modules with integrated power supply or integrated battery module • Comprehensive selection of battery modules.
Supplying AC loads without mains
For online and offline operation
Our uninterruptible power supplies for industrial AC applications ensure maximum failsafe performance and system availability in the event of voltage failures or fluctuations. The AC UPS delivers a pure sine curve at the output and supplies AC loads with alternating current of up to 2.5 kVA without interruption. Choose the ideal AC UPS with appropriate battery module for your application.
Detailed Photos
Product Parameters
QUINT AC UPS
The clever IQ Technology in the QUINT UPS for AC applications monitors and optimizes the operation of your battery module. To supply your processes and applications as long as possible, use the complete energy content.
You will be warned at an early stage of possible failures, because your UPS detects the remaining expected life of the battery module. At the same time, the UPS detects the current performance of the energy storage device. The different battery module types available allow the optimized operation of your system. The UPS can be integrated via the USB interface, which means it can be connected to higher-level controllers. The QUINT AC UPS delivers a pure sine curve at the output. The sine wave generated during battery operation is synchronized to the grid previously used for supply, allowing seamless transition.
Technical data | |
Input data | |
Nominal input voltage range | 100 V AC ... 240 V AC | |
Input voltage range | 100 V AC ... 240 V AC -15 % ... +10 % | |
Derating IStat. Boost | < 100 V AC (1 %/V) | |
Input voltage range DC | 90 V DC ... 350 V DC | |
Input voltage range AC | 85 V AC ... 264 V AC | |
Voltage type of supply voltage | AC | |
Electric strength, max. | 300 V AC | |
Typical national grid voltage | 120 V AC | |
230 V AC | |
Inrush current | < 20 A | |
Inrush current integral (I2t) | < 3.2 A2s | |
Inrush current limitation | 20 A | |
AC frequency range | 45 Hz ... 65 Hz | |
Mains buffering time | > 32 ms (120 V AC) | |
> 32 ms (230 V AC) | |
Current consumption | 7 A (100 V AC) | |
5.8 A (120 V AC) | |
3 A (230 V AC) | |
3.1 A (240 V AC) | |
Nominal power consumption | 569 VA | |
Power factor (cos phi) | 0.89 | |
Typical response time | < 0.6 s | |
Input fuse | 12 A (slow-blow, internal) | |
DC operation | | |
Nominal input voltage range | 110 V DC ... 250 V DC | |
Input voltage range | 110 V DC ... 250 V DC -18 % ... +40 % | |
Derating IStat. Boost | < 110 V DC (1 %/V) | |
Current consumption | 6.3 A (110 V DC) | |
2.8 A (220 V DC) | |
Output data | |
Efficiency | typ. 92 % (120 V AC) | |
typ. 92.7 % (230 V AC) | |
Output characteristic | U/I | |
Nominal output voltage | 24 V DC ±1 % | |
Setting range of the output voltage (USet) | 18 V DC ... 29.5 V DC (> 24 V DC, constant capacity restricted) | |
Nominal output current (IN) | 20 A | |
POWER BOOST (IBoost) | 26 A (-25 °C ... 40 °C permanent, UOUT = 24 V DC ) | |
Static Boost (IStat.Boost) | 26 A | |
Selective Fuse Breaking (ISFB) | 120 A (12 ms) | |
Derating | 60 °C ... 70 °C (2.5 %/K) | |
Feedback voltage resistance | ≤ 35 V DC | |
Protection against overvoltage at the output (OVP) | ≤ 35 V DC | |
Output power | 480 W | |
| 624 W | |
Maximum no-load power dissipation | 8 W | |
Power loss nominal load max. | 40 W | |
Dimensions | |
Item dimensions | |
Width | 90 mm | |
Height | 130 mm | |
Depth | 125 mm | |
Weight per piece (including packing) | 2190 g | |
Weight per piece (excluding packing) | 1608 g | |

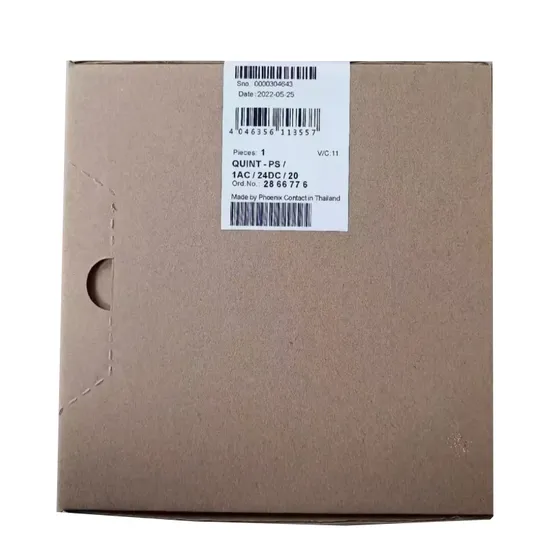

Packaging & Shipping
Our product packaging aims to provide functionality and aesthetic appeal. We understand the importance of creating a positive first impression and ensuring the safe delivery of products to customers. The following are the main features of our packaging:
Durable materials: We use high-quality materials that are sturdy and durable, and will not be damaged during transportation. This ensures that our products reach our customers in good condition.
Safe packaging: Our packaging design focuses on a safe outer shell. We use protective layers and liners to prevent any damage to the product caused by external impact or rough handling.
Clear labels: Our packaging includes clear and detailed labels. They provide necessary detailed information, such as product name, quantity, instructions for use, and any necessary warning labels. This helps customers easily identify and understand the product.
Attractive design: We believe that packaging should have visual appeal. Our design team has created a striking modern packaging design that reflects the essence of our brand. This helps our products stand out on store shelves and leave a positive impression.
Company Profile
Shanghai Zhongcheng Fengyuan Industrial Technology Co., Ltd. is an engineering company with a global network of engineering centers, providing high-performance and cost-effective services to global customers. We have established partnerships with most world-renowned brands and can provide components and equipment for the oil and gas, industrial, chemical, and energy industries.The company's industrial control brand covers major global manufacturers, including but not limited to: Allen Bradley, Siemens, IFM, Beckhoff, Yaskawa, Pepperl+Fuchs, Sick, etc. The products include PLC/DCS modules, touch screens, drive inverters, industrial power supplies, I/O systems, industrial communication, low-voltage control equipment, low-voltage distribution equipment, medium voltage spare parts, protective relays, etc. We have rich industry experience, professional services, and good protective packaging.We cooperate with various official express delivery companies to export to various parts of the world, such as South Asia, Europe, North America, South America, the Middle East, and Africa. Reducing customer costs helps to create more benefits for each of our customersZhongcheng Fengyuan has won the trust of a large number of customers. Our belief is to help our customer factories achieve digitization, intelligence, automation, and create maximum benefits for our customers. Looking forward to working with you!
FAQ
1. Question: How is the warranty?
Answer: All products we provide come with a 12 month warranty
2. Question: What about shipping?
Answer: They are in stock and can be shipped immediately. We can arrange shipments of DHL, FedEx, UPS, TNT, EMS at competitive prices, and of course, customers can also use their own freight forwarders.
3. Question: Why did you purchase from us?
Answer: We have over ten years of experience in the field of industrial automation. We have a team composed of qualified engineers and sales personnel, ready to meet customer needs with high-quality products at any time.
4. Question: Are other suppliers offering better prices than you?
Answer: Creating maximum benefits for customers is our belief. If you have a better price, please let us know. We will do our best to meet your price and provide support for you.
5: Q: What payment method do you accept?
Answer: Telegraphic transfer (bank transfer), Western Union transfer, credit card, PayPal, letter of credit, Alipay, cash, custody, etc.
>>
