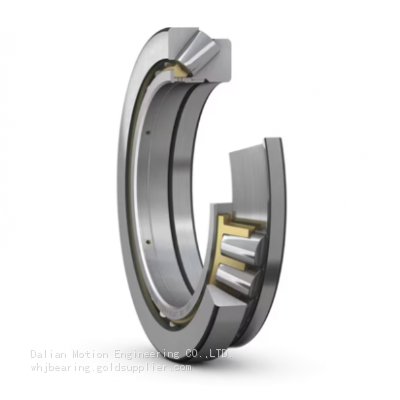

293/850EM Thrust spherical roller bearing

Product Details

Product Description

Product Description

(mm)									(kN)			(rpm)
Boundary Dimensions									Basic Load Ratings			Speed Ratings			Bearing Code
d	D	H	r1.2	d1	D1	B	C	S		Ca	Coa		Grease	Oil		New		Old
100	170	42	1.5	152	128	26.2	20.8	58		410	1280		1500	2000		29320		9039320
	210	67	3	190	146	45	32	62		590	860		1000	1400				9069420
	210	67	3	185	144	43	33	62		840	2400		1100	1600		29420		9039420
110	190	48	2	175	135	30	24	64		347	970		1100	1600				9069322
	190	48	2	175	143	16	23	64		530	1710		1300	1800		29322		9039322
	230	73	2	195	150	43	35	69		545	1497		950	1400				9069422
	230	73	3	208	155.5	26	34.4	69		1010	2930		950	1400		29422		9039422
120	210	54	2.5	188	161	34	30	57		380	680		1000	1600				9069324
	210	54	2.1	187.5	156.5	34	27	70		645	2100		1100	1600		29324		9039324
	250	78	4	222	181	48	38	74		720	1100		750	1100				9069424
	250	78	4	222	172	50.5	37	74		1160	3400		900	1300		29424		9039424
130	225	58	2.5	200	170	37	29	76		440	750		950	1500				9069326
	225	58	2.1	200	166	36.5	28	76		740	2450		1000	1500		29326		9039326
	270	85	4	240	190	55	44	79		760	1100		700	1100				9069426
	270	85	4	246	183	31	39.7	81		1330	3900		850	1200		29426		9039426
140	240	60	2.1	216.5	179	38.5	30	82		840	2810		950	1400		29328		9039328
	280	85	4	247	203	55	47	64		825	1120		670	950				9069428
	280	85	4	244.5	195.5	54	42	86		1370	4200		850	1200		29428		9039428
150	215	39	1.5		177					351	1560			1800		29230		9039230
	250	60	2.1	220	185	36	31	87		525	1670			1200				9069330
	250	60	2.1	240	194	20	29	87		870	2900		950	1400		29330		9039330
	300	90	4	270	220	60	48	69		995	1760		630	900				9069430
	300	90	4	266	206	58	44	92		1580	4900		800	1100		29430		9039430
160	225	39	1.5		188					362	1650			1700		29232		9039232
	270	67	3	240	200	45	32	92		610	2240			1100				9069332
	270	67	3	243	203	42	33	92		1010	3400		850	1200		29332		9039332
160	320	95	5	275	234	61	53	74		1000	1720		560	800				9069432
	320	95	5	285	218.5	34	46.9	99		1740	5400		750	1000		29432		9039432
170	240	42	1.5		201					408	1900			1600		29234		9039234
	280	67	3	260.3	216	43.5	31.7	96		1050	3500		850	1200		29334		9039334
	340	103	5	310	243	71	48	104		1210	2200		530	750				9069434
	340	103	5	302	235	65.5	50	104		1680	5800		700	950		29434		9039434
180	250	42	1.5	239	209	15	21.3	97		420	2010		900	1600		29236		9039236
	300	73	3	270	225	46	36	103		790	2731		630	900				9069336
	300	73	3	275	229	25	34.4	103		1230	4200		800	1100		29336		9039336
	360	109	5	308	265	67	58	82		1210	2200		550	750				9069436
	360	109	5	326	249.5	39	51.2	110		1870	6500		670	900		29436		9039436
190	270	48	2	250	224	30	24	110		420	1746			1000				9069238
	270	48	2	255	226		25.5	103		518	2200			1400		29238		9039238
	320	78	4	288.5	244	49	38	110		1370	4700		750	1000		29338		9039338
	380	115	5	345	263	41	53.7	117		2100	7450		630	850		29438		9039438
200	280	48	2	266	236	15	24	108		540	2310			1400		29240		9039240
	340	85	4											800				9069340
	340	85	4	306.5	257	53.5	41	116		1570	5450		700	950		29340		9039340
	400	122	5	360	278	62	62	122		1740	6054			710				9069440
	400	122	5	360	267.5	44	56.7	122		2290	8150		600	800		29440		9039440
220	300	48	6	286	260	31	24	117		504	1932		850	1300				9069244
	300	48	6	285	254	15	24	117		560	2500			1300		29244		9039244
	360	85	6	320	270	52	44	125		970	3768			800				9069344
	360	85	6	330	277.5	29	40.7	125		1340	5200		700	950		29344		9039344
	420	122	6	400	330	78	59	142		1830	6624			710				9069444
	420	122	6	385	308	43	58	132		2350	8650		560	750		29444		9039444
240	340	60	2.1	325	283	19	30	130		800	3450			1100		29248		9039248
240	380	85	4	340	290	52	44	135		1320	4250			800				9069348
	380	85	4	360	298.5	29	41	135		1360	5400		670	900		29348		9039348
	440	122	6	380	310	62	62	142		1920	7160		550	750				9069448
	440	122	6	400	316	43	60	142		2420	9100		560	750		29448		9039448
260	360	60	2.1	335	302	38	30	139		645	2880		530	750				9069252
	360	60	2.1	345	302	19	30	139		855	3850			1100		29252		9039252
	420	95	5	370	315	60	46	148		1420	5850			710				9069352
	420	95	5	392.3	327.5	70.9	46	148		1700	7500		600	800		29352		9039352
	480	132	6	415	335	80	66	154		2120	8220			630				9069452
	480	132	6	445	346	86	63	154		2820	10700		500	670		29452		9039452
280	380	60	2.1	365	323	19	30	150		885	4100		700	1000		29256		9039256
	440	95	5	413	348	64	46	158		1560	6120		530	750				9069356
	440	95	5	410	348	32	46	158		1830	7650		600	800		29356		9039356
	520	145	6	450	365	75	72	166		2600	9860			630				9069456
	520	145	6	480	384	104	68	160		3400	13100		480	630		29456		9039456
300	420	73	3	400	353	21	38	162		1160	5150			900		29260		9039260
	480	109	5	425	365	58	52	168		1870	7650			630				9069360
	480	109	5	450	379	37	50	168		2190	9100		530	700		29360		9039360
	540	145	6	500	402	52	70	175		3500	13700		450	600		29460		9039460
320	440	73	3	420	372	21	38	172		1190	5450			850		29264		9039264
	500	109	5	445	385	68	55	180		2030	7960			560				9069364
	500	109	5	463	394	83.4	52.3	180		2230	9400		500	670		29364		9039364
	580	155	7.5	500	410	95	75	191		2930	11660							9069464
	580	155	7.5	555	436	108	75	191		3650	14600		430	560		29464		9039464
340	340	73	3	438	388	48	36	204		1150	2550		530	750				9069268
	460	73	3	440	395	21	37	183		1230	5750			850		29268		9039268
	540	122	5	480	410	74	62	192		2710	11000							9069368
340	540	122	5	510	428	41	59	192		2640	11200			600		29368		9039368
	620	170	7.5	560	449.5	61	80	201		4400	17400		380	500		29468		9039468
360	500	85	4	480	423	25	44	194		1550	7300			750		29272		9039272
	560	122	5	525	448	41	59	202		2670	11500			600		29372		9039372
	640	170	7.5	555	460	87	85	210		3790	15440			450				9069472
	640	170	7.5	580	474	63	83.5	210		5200	21000			500		29472		9039472
380	520	85	4	496	441	27	42	202		1620	7800			700		29276		9039276
	600	132	6	561	475	44	61.4	216		3300	14200			530		29376		9039376
	670	175	7.5	610	494	120	87.5	222		5800	24000			480		29476		9039476
400	540	85	4	500	450	55	42	212		1260	7060							9069280
	540	85	4	510	460	27	42	212		1640	8000		500	700		29280		9039280
	620	132	6	555	475	81	65	225		2860	12200							9069380
	620	132	6	582	489	44	64.7	225		3250	14500		440	620		29380		9039380
	710	185	7.5	659	547	112	96	236		4450	19200							9069480
	710	185	7.5	645	525	67	89.5	234		6350	26100			450		29480		9039480
420	580	95	5	548	489	62	46	251		1880	5300			560				9069284
	580	95	5	553	489	30	46	225		2010	9800			630		29284		9039284
	650	140	6	610	514.5	48	68	235		3600	16000		420	600		29384		9039384
	730	185	7.5	665	545	67	90.5	244		6650	27500			430		29484		9039484
440	600	95	5	575	508	30	49	235		2030	10100			630		29288		9039288
	680	145	6	626	540	49	70.5	245		4250	16700			480		29388		9039388
	780	206	9.5	710	577	74	101	260		7550	32000			380		29488		9039488
	780	206	9.5	660	588	110	100	260		7880	34000					29488/HV
460	620	95	5	590	525.5	30	49.4	245		2060	10300		400	600		29292		9039292
	710	150	6	666	567	51	72	257		4100	18400			450		29392		9039392
	800	206	9.5	765	608	74	100	272		6900	28300			380		29492		9039492
480	650	103	5	600	540	65	50	259		1950	10500							9069296
480	650	103	5	624	556	33	55	259		2370	12100			560		29296		9039296
	730	150	6	690	590	51	72	270		4150	19000			450		29396		9039396
	850	224	9.5	810	638	81	108	280		7200	31000			340		29496		9039496
500	670	103	5	620	560	60	50	268		2050	1080							90692/500
	670	103	5	645	574	33	55	268		2390	12400		380	560		292/500		90392/500
	750	150	6	705	611	98	71	280		3550	1720							90693/500
	750	150	6	715	611	51	74	280		4350	20400		340	520		293/500		90393/500
	870	224	9.5	760	630	140	110	290		6290	27340							90694/500
	870	224	9.5	790	648	81	107	290		7850	33000		320	460		294/500		90394/500
530	710	109	5															90692/530
	710	109	5	680	604	69.5	54	288		2620	15300		350	530		292/530		90392/530
	800	160	7.5	760	648	54	76	295		5050	23300			400		293/530		90393/530
	920	236	9.5	840	700	145	116	309		8386	32600							90694/530
	920	236	9.5	880	696	85	114	310		8550	37000			320		294/530		90394/530
560	750	115	5	695	625	72	58	300		2430	13300							90692/560
560	750	115	5	732	644	37	61	302		2990	17900		360	480		292/560		90392/560
	850	175	7.5	810	687	59	85	310		5700	26700			360		293/560		90393/560
	980	250	12	935	744	91	124	325		9600	42000			300		294/560		90394/560
	980	250	12	830	727	142	122	328		12000	51000					294/560/HV
600	800	122	5	772	688	39	58	321		3300	17800			450		292/600		90392/600
	900	180	7.5	840	720	65	89	340		6330	33700			340		293/600		90393/600
	1030	258	12	900	750	156	130	360		9860	38500							90694/600
	1030	258	12	985	780	93	127	345		10100	43000			280		294/600		90394/600
630	850	132	6	800	728	86	65	338		3450	19800			300				90692/630
	850	132	6	810	723	50	62	338		4770	24200			400		292/630		90392/630
	950	190	9.5	880	761	68	92	359		8450	40300			320		293/630		90393/630
	1090	280	12	1040	830	100	136	365		11600	51500			260		294/630		90394/630
	1090	280	12	995	815	179	137	365								294/630EM
670	900	140	6	830	750	86	70	365		3670	20280							90692/670
	900	140	6	880	773	45	73	361		4200	25500			380		292/670		90392/670
670	1000	200	9.5	935	804	73	98	379		7360	39600			300		293/670		90393/670
	1150	290	15	1090	870	105	140	385		12500	56000			240		294/670		90394/670
710	950	145	6	895	805	92	75	380		3600	12000			240				90692/710
	950	145	6	900	815	46	71	380		5230	27500			360		292/710		90392/710
	1060	212	9.5	985	855	74	103	404		9950	45500			280		293/710		90393/710
	1220	308	15	1160	920	132	148	407		14300	65500			220		294/710		90394/710
750	1000	150	6	950	858	52	74	409		5870	33700					292/750		90392/750
	1120	224	9.5	1086	910	76	109	415		9370	51000					293/750		90393/750
	1280	315	15	1152	972	160	158	448		14340	58600							90694/750
	1280	315	15	1220	970	128	152	429		15100	69000					294/750		90394/750
800	1060	155	7.5	985	890	80	80	475		5635	28870							90692/800
	1060	155	7.5	1010	907.5	50	80	426		6350	33700					292/800		90392/800
	1180	230	9.5	1146	965	78	111	440		9950	56100					293/800		90393/800
	1360	335	15	1300	1030	121	162	445		16600	77500					294/800		90394/800
	1360	335	15	1160	1034	185	165	462		20200	93000					294/800A
850	1120	160	7.5	1060	967	47	82	455		6730	37400					292/850		90392/850
	1250	243	12		1024					11100	61600					293/850		90393/850
	1440	355	15	1250	1034	142	172	507		18700	99000					294/850		90394/850
900	1180	170	7.5		1023					6330	40900					292/900		90392/900
	1520	372	15	1450	1164	135	185	520		22200	121000					294/900		90394/900
950	1250	180	7.5	1185	1081	58	88	507		8280	46600					292/950		90392/950
	1600	390	15	1470	1209	153	191	546		28200	13200					294/950		90394/950
1000	1320	190	9.5		1139					7990	52800					292/1000		90392/1000
	1460	276	12	1365	1192	100	137	561		14400	82500					293/1000		90393/1000
1060	1400	206	9.5	1300	1180	128	103	566		7800	48000							90692/1060
	1400	206	9.5	1335	1208	66	100	566		10500	59400					292/1060		90392/1060
1180	1520	206	9.5	1450	1331	83	101	625		10900	64000					292/1180		90392/1180
1250	1800	330	12	1685	1474	147	161	698		24800	129000					293/1250		9039/1250
1600	2280	408	19	2130	1885	166	195	894		36800	200000					293/1600		9039/1600

---

>> Fully Automatic Bakery Equipment Soft Hard Biscuit Soda Cracker Food Machinery Production Line
>> Smart Bluetooth Bracelet Viqee Brand
>> Diameter 5000mm Tank and Dish Head Horizontal Welding Seam Surface Grinder Machine
>> High Speed Vertical Drilling Tapping Bench Drill Jzs-25 Metal Heavy Duty Cast Iron Steel Tapper Machine M22 M24
>> 135L 54 Bottles Single Zone Household or Commercial Wine Refrigerator Cooler
>> Reusable Laparoscopic Disposable Surgical Instrument 5/10 mm Titanium Clip Applier/Applicator
>> xiaomi MIIIW 16-piece DIY tool kit household hand tools with screwdriver wrench hammer tape pliers knife repair tool
>> Wholesale Food Grade Take Away Container Biodegradable Disposable Soup Cup Salad Paper Bowl Making Machine
>> Nitrogen blowing instrument high temperature control precision rapid concentration aluminum heating module
>> Reflective Tape Orange Belt
>> Shampoo, Liquid Soap, Liquid Detergent Making, Mixing Machine Tank
>> Table Centerpiece Crystal Wedding Candelabra With Flower Bowl 8 Arms Candle Holder Vase
>> (5000T-C) SIM Card 3G Function Biometric Fingerprint Time Attendance Machine
>> Kids Learning Musical Piano Keyboard Mat with 2 Sticks Educational Percussion Piano Play Mat Toys
>> 31x10.5R15LT LT215/75R15 LT235/75R15 Passenger car tyre Winter Light Truck tyres All terrain tires wheel
>> Rubber Flooring Mat Tile, EPDM Rubber Tile
>> High Efficiency Cow Grass Cutting Machine Straw Crusher Silage Grass Cutting Chaff Cutter
>> Wholesale Sustainable Tissue White Decor Mount Kitchen Bathroom Roll Paper Towel Holder Rack
>> Zhuxin PE Three-Layer Plastic Blowing Film Machine
>> Mdh Orizontal Machining Center China CNC Machine Center
