US$16.50
|
100 Pieces
(MOQ)
|
Basic Info.
Frequency Characteristics
Intermediate Frequency
Frequency
Intermediate Frequency
Power Source
Switching Regulated Power Supply
Application Range
Industrial and Mining Enterprises
Cetificate
CE, Soncap, ISO:9001...
Popular Market
Russia, Parkistan, Afganistan
Input Voltage
135-270V/105-270V/90-270/80-270V
Package in One Carton
4PCS
Protection
Overpressure/Over Load/Over Temperature
Waveform Distortion
No Additional Wave Form Distortion
Transport Package
to Be Packed in Standard Exporting Carton
Specification
CE, ISO: 9001, SONCAP
Origin
Wenzhou, Zhejiang, China
Production Capacity
40000PCS/Month
Product Description
Product Description
Our Advantages
I. Advantages of our products
1. High technology: programmed control computerized
2.Unique design: LED display which can show all protection functions.
3.Quality ensurance: every spareparts is made by ourself,for example,transforma,PCB.
4.Perfect protection function:over/low voltage protection,over-heat,over-load protection
5.High efficiency:more than 90%
6.experienced manufactory: more than 20 years
Product Parameters

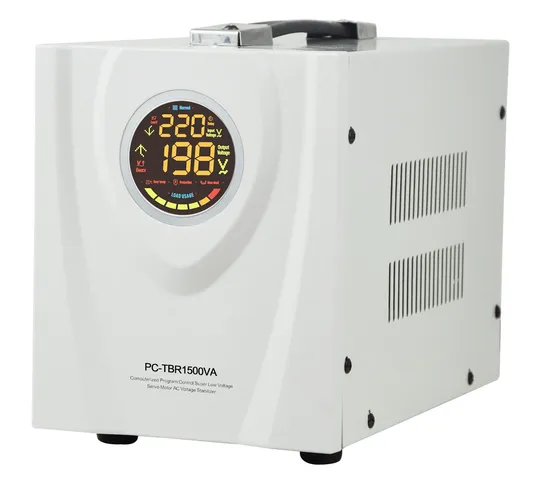

| Model | PC-TBR500VA | PC-TBR1000A | PC-TBR1500VA | PC-TBR2000VA | PC-TBR3000VA |
| PC-TBR5000VA | PC-TBR8000VA | PC-TBR10000VA | PC-TBR12000VA | PC-TBR15000VA |
| Technology | Relay Control Control System+Micro Computer Programmed Control |
| Led Display | Info | Input voltage/output voltage/Load Usage/Time Delay/Normal Working/Protection |
| Protection | Over voltage | output voltage>=243±4v |
| Low voltage | output voltage<=188±4v |
| Over loading | More than 120% |
| Over temperature | 120°±3% |
| Delay time | Long time(255 second)/Short Time (5 seconds) |
| Circuit beaker | Regulator/bypass |
| Language | English/Russian/Chinese |
| Input Voltage | AC135-270/105-270V/90-270V/80-270V |
| Output Voltage | 220V±10% |
| Frequency | 50/60 HZ |
| Phase | Single Phase |
| Efficiency | >=90% |
| Ambient Temperature | -15°-45° |
| Relative Humidity | <95% |
| Waveform Distortion | no additional wave form distortion |
| Insulating Resistance | normal more than 2MΩ |
| Specification |
| Power | 500va | 1000va | 15000va | 2000va | 3000va |
| Package Size(cm) | 35.8*30.3*42.3 | 35.8*30.3*42.3 | 35.8*30.3*42.3 | 39.6*35.3*46.7 | 38.6*27.7*29.8 |
| Package(pcs) | 4 | 4 | 4 | 4 | 1 |
| G.M.(kgs) | 13.33 | 14.51 | 15.27 | 24.66 | 11.66 |
| Power | 5000va | 8000va | 10000va | 12000va | 15000va |
| Package Size(cm) | 38.6*27.7*29.8 | 43.2*27.7*29.8 | 44.2*30.4*37.1 | 44.2*30.4*37.1 | 44.2*30.4*37.1 |
| Package(pcs) | 1 | 1 | 1 | 1 | 1 |
| G.M.(kgs) | 16.89 | 18.75 | 25.55 | 27.55 | 29.55 |
Feature:
Model: PC-DVS Series Servo Control single phase
Capacity: 500VA~15KVA
Input voltage: AC150V~260V or customize
Output voltage: 220V+/-3%
Remark: pls kindly check the detail information in following chart
SERVICE OCCASIONS:
Computer
Test equipment
Lighting equipment
Alarm and security system
X-ray equipment
Medical equipment
Duplicator
Broadcasting equipment
Numeric control machine tool
Industrial robot
Photographic processing equipment
Laboratory instrument
Hi-Fi equipment
