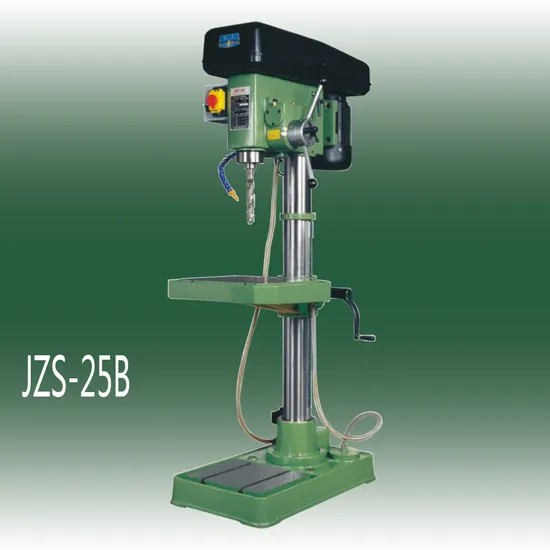

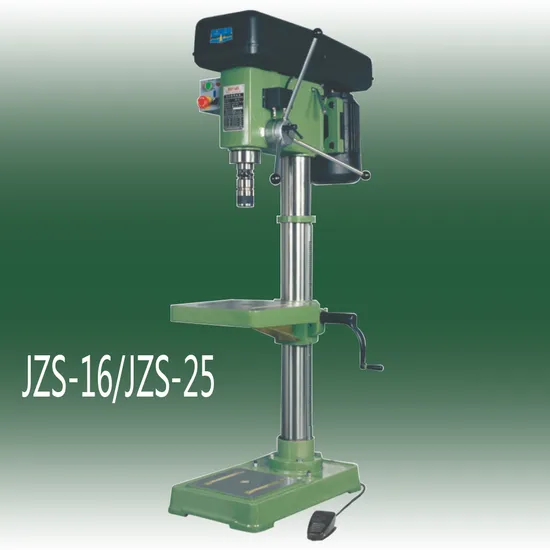

| Model | JZS-16/JZS-25 | JZS-25B |
| Max.tapping capacity(Cast iron/Steel) | M16/M12,M24/M22 | M24/M22 |
| Max Drilling capacity | 16/25mm | 25mm |
| Diameter of column | 85/102mm | 102mm |
| Spindle travel | 93/130mm | 130mm |
| Distance spindle axis to column surface | 180/230mm | 230mm |
| Max.distance spindle nose to worktable | 425/750mm | 740mm |
| Max distance spindle nose to base | 610/990mm | 1050mm |
| Spindle taper | MT.2/MT.3 | MT.3 |
| Spindle speeds range | 160-1820rpm/160-1880rpm | 160-1880rpm |
| Spindle speeds | 9 | 9 |
| Dimension of worktable surface | 270x280mm/340x360mm | 390x470mm |
| Dimension of base worktable surface | 245x245mm/260x260mm | 325x275mm |
| Overall height | 1050/1560mm | 1640mm |
| Motor | 750W/1500W | 1500W |
| G.W./N.W. | 122/108kg,220/193kg | 293/265kg |
| Ship measurement | 115x76x43cm/169*90x49cm | 177x91x55cm |
